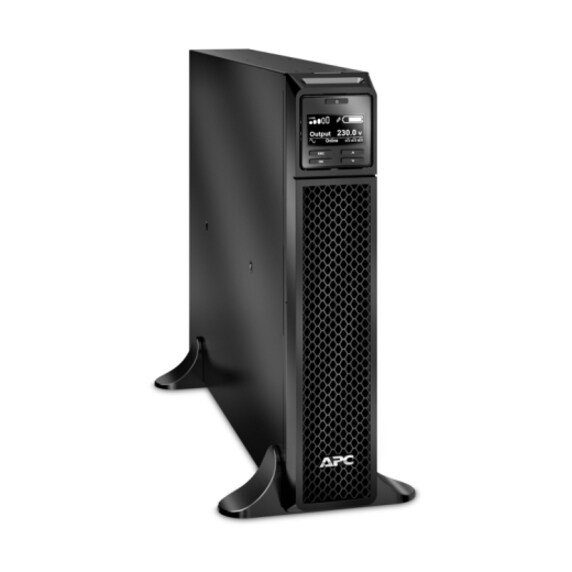

APC Smart-UPS SRT 2200VA 230V
APC Smart-UPS SRT 2200VA 230V
Product Overview
APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 2.20 kVA/1.98 kW - Tower - 3 Hour Recharge - 4 Minute Stand-by - 230 V AC Input - 230 V AC Output - 2 x IEC 60320 C19, 8 x IEC 60320 C13
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
- 2.20 kVA load capacity - work without any interruption during power outages
- 1.98 kW load capacity - backup power for your valuable electronics
Technical Specifications
Environmentally Friendly | Yes |
Backup/Run Time (Full Load) | 4 Minute |
Typical Battery Recharge Time | 3 Hour |
Weight (Approximate) | 25 kg |
Height | 432 mm |
Width | 85 mm |
Depth | 584 mm |
Product Type | Double Conversion Online UPS |
Manufacturer Part Number | SRT2200XLI |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS SRT 2200VA 230V |
Product Line | Smart-UPS |
Product Series | SRT |
Brand Name | APC by Schneider Electric |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Load Capacity (VA) | 2.20 kVA |
Load Capacity (Watt) | 1.98 kW |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 | |
Receptacle Detail | 8 x IEC 60320 C13 |
2 x IEC 60320 C19 |
