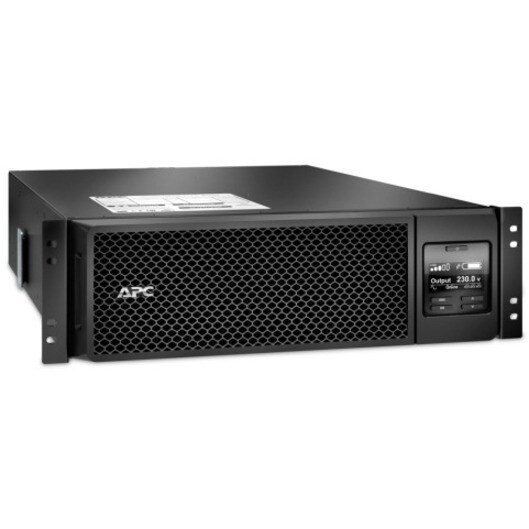

APC Smart-UPS SRT 5000VA RM 230V Marine
APC Smart-UPS SRT 5000VA RM 230V Marine
Product Overview
APC by Schneider Electric Smart-UPS SRT Double Conversion Online UPS - 5 kVA/4.50 kW - Rack-mountable - 4 Minute Stand-by - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13
High availability, ruggedized power protection for shipboard and other transportation applications.
Mobile applications present their own unique challenges. Resilience to elevated levels of vibration, conformance to international maritime regulations, such as DNV, enhanced electric hazard protection and ruggedized enclosure are just a few features that are commonly required in mobile applications. APC by Schneider Electric offers customized solutions to meet the demanding requirements for marine, shipboard and other mobile applications.
- Keep your sensitive devices powered with a backup of up to 4 minute at full load
- 5 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 4.50 kW load capacity
Technical Specifications
| Network (RJ-45) | Yes |
| Environmentally Friendly | Yes |
| Hot Swappable | Yes |
| Backup/Run Time (Full Load) | 4 Minute |
| Weight (Approximate) | 54.43 kg |
| Height | 130 mm |
| Width | 432 mm |
| Depth | 719 mm |
| Color Family | Black |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT5KRMXLIM |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 5000VA RM 230V Marine |
| Product Line | Smart-UPS SRT |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| IEC Jumper | |
| Receptacle Detail | 4 x IEC 60320 C19 |
| 2 x IEC Jumper | |
| 6 x IEC 60320 C13 |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 220 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 160 V AC - 275 V AC |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
