APC Smart-UPS SRT 8000VA RM 230V

APC Smart-UPS SRT 8000VA RM 230V

APC Smart-UPS SRT 8000VA RM 230V

Product Overview

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 8 kVA/8 kW - 6U Rack-mountable - 1.50 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 230 V AC Output - 1 x Hard Wire 3-wire (H N + G), 6 x IEC 60320 C13 - USB

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

  • Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
  • 8 kVA load capacity - work without any interruption during power outages
  • Prevent critical data loss by staying powered during a blackout with up to 8 kW load capacity

Technical Specifications

Controls/Indicators

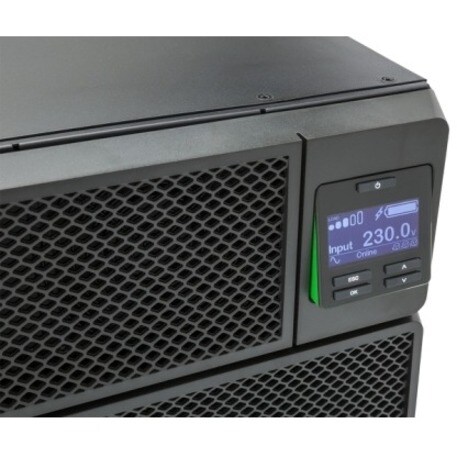

Status IndicatorsLED Indicators
Management
AlarmBattery Failure
Environmental Conditions
Thermal Dissipation1497 BTU/h
Maximum Operating Temperature40°C
Sound Emission (A-Weighted)55 dB(A)
Interfaces/Ports
USBYes
Network (RJ-45)Yes
Total Number of Expansion Slots1
Miscellaneous
Package Contents
  • Smart-UPS SRT 8000VA RM 230V
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets
  • Rack Mounting Hardware
  • Rails Rack Mount Bracket
  • Temperature Probe
  • USB Cable
  • Warranty Card
Certifications & Standards
    • CE
    • CE Mark
Environmentally FriendlyYes
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Number of Batteries2
Backup/Run Time (Half Load)16 Minute
Backup/Run Time (Full Load)5 Minute
Battery CharacteristicsMaintenance-free, Sealed, Spill-proof
Typical Battery Recharge Time1.50 Hour
Technical Information
Bypass SwitchInternal
Automatic & Manual
Emergency Power OFFYes
Protection TypeLightning
Spike
Surge
Plug/Connector TypeHard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Receptacle TypeIEC 60320 C13
Hard Wire 3-wire (H N + G)
IEC 60320 C19
Receptacle Detail6 x IEC 60320 C13
4 x IEC 60320 C19
1 x Hard Wire 3-wire (H N + G)
Physical Characteristics
Weight (Approximate)111.82 kg
Rack Height6U
Height263 mm
Width432 mm
Depth715 mm
Product ColorBlack
Color FamilyBlack
Power Description
Circuit BreakerYes
Input Voltage230 V AC
Output Voltage230 V AC
Surge Energy Rating480 J
Waveform TypeSine Wave
Load Capacity (VA)8 kVA
Load Capacity (Watt)8 kW
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRT8KRMXLI
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameSmart-UPS SRT 8000VA RM 230V
Product LineSmart-UPS
Product SeriesSRT
Brand NameAPC by Schneider Electric

Price Trend

Current Price
AUD 13,200.00
