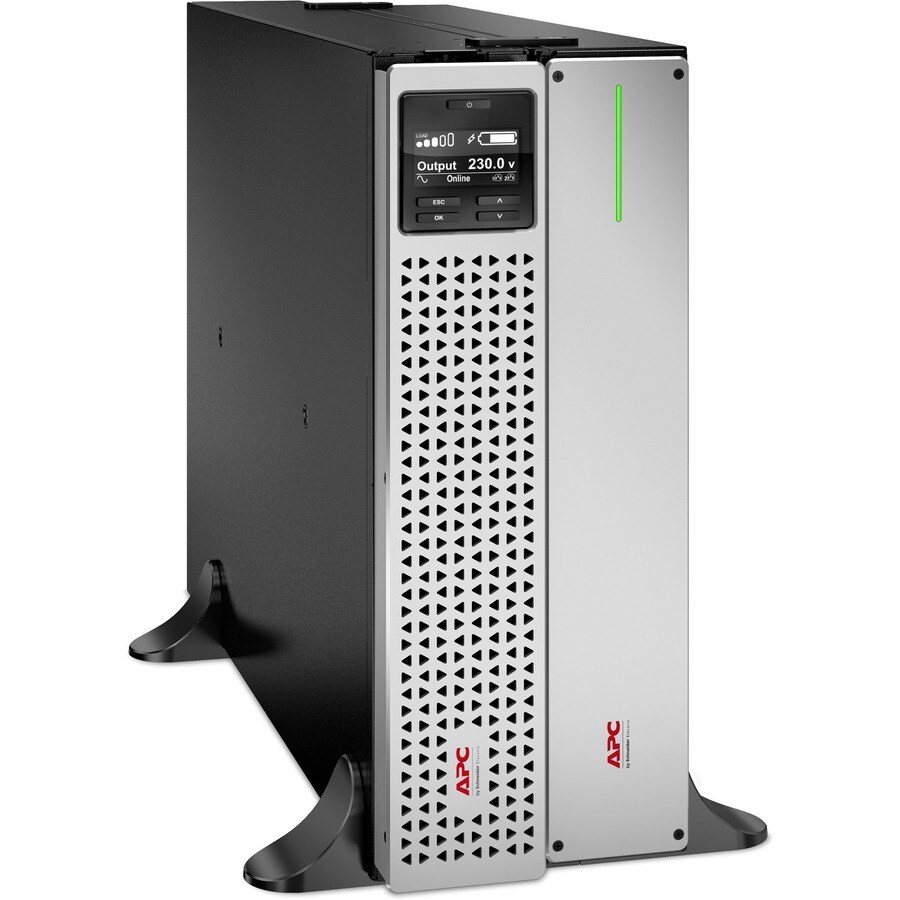

APC Smart-UPS SRT Lithium Ion 1500VA RM
APC Smart-UPS SRT Lithium Ion 1500VA RM
Product Overview
Smart-UPS On-Line, 1500VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, Network Card, Extended long runtime, Rail kit included
At 1350W/1500VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power, preinstalled Netwrok Management Card. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.- Up to 1.55 hour runtime on full load to preserve critical data from power shortage interruptions
- 1.50 kVA load capacity - work without any interruption during power outages
- 1.35 kW load capacity - backup power for your valuable electronics
Technical Specifications
Display & Graphics
| Display | LCD |
Interfaces/Ports
| USB | Yes |
| EPO Port | Yes |
Management
| Network Management | Network Card |
| Alarm | Alarm |
Technical Information
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
Environmental Conditions
| Thermal Dissipation | 450 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 10 km |
| Maximum Storage Elevation | 15.24 km |
| Sound Emission (A-Weighted) | 50 dB(A) |
Battery Information
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 48V |
| Battery Energy | 10368 kJ |
| Backup/Run Time (Half Load) | 2.93 Hour |
| Backup/Run Time (Full Load) | 1.55 Hour |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTL1500RM4UXLI-NC |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS On-Line 1500VA Rack-mountable UPS |
| Product Line | Smart-UPS On-Line |
| Brand Name | APC by Schneider Electric |
Physical Characteristics
| Weight (Approximate) | 40.70 kg |
| Rack Height | 4U |
| Height | 171 mm |
| Width | 432 mm |
| Depth | 590 mm |
| Product Color | Blue |
| Silver | |
| Black | |
| Color Family | Multicolor |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 220 V AC | |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 275 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
