Smart-UPS Ultra 2200VA 230V 1U with with
Smart-UPS Ultra 2200VA 230V 1U with with
Product Overview

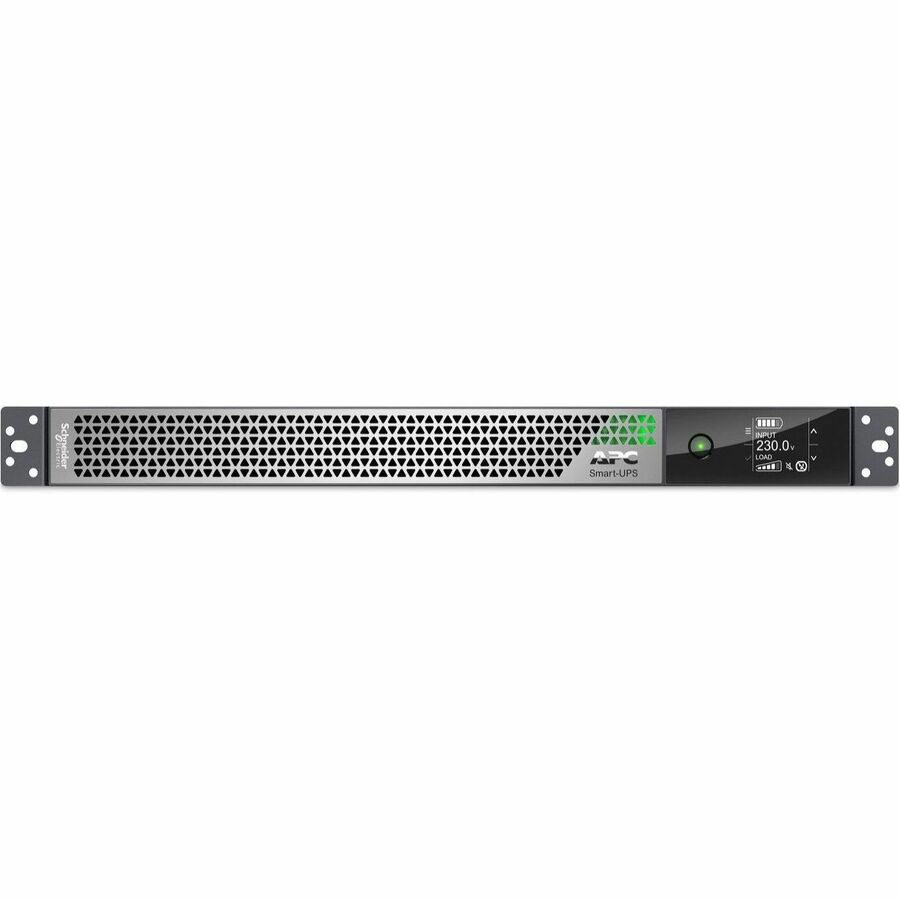

APC by Schneider Electric Smart-UPS Ultra Double Conversion Online UPS - 2.20 kVA/2.20 kW - 1U Rack/Tower - 1.50 Hour Recharge - 6.63 Minute Stand-by - 230 V AC Input - 230 V AC Output - 3 x IEC 60320 C13, 2 x IEC 60320 C19 - Sinusoidal - USB - LCD Display
Smart-UPS Ultra 2200VA 230V 1U with Lithium-Ion Battery with SmartConnect- Keep your sensitive devices powered with a backup of up to 6.63 minute at full load
- 2.20 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.20 kW load capacity
Technical Specifications
Display & Graphics
| Display | LCD |
Management
| Network Management | SmartConnect |
Interfaces/Ports
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
Environmental Conditions
| Sound Emission | 55 dB |
| Thermal Dissipation | 325 BTU/h |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
Technical Information
| Features | Audible Alarm |
| Cord Length | 2.44 m |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 3 x IEC 60320 C13 |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTL2K2RM1UIC |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra On-Line 2200VA Rack/tower UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
Battery Information
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 13.85 Minute |
| Backup/Run Time (Full Load) | 6.63 Minute |
| DC System Voltage | 50 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
Physical Characteristics
| Weight (Approximate) | 15.90 kg |
| Rack Height | 1U |
| Height | 43 mm |
| Width | 432 mm |
| Depth | 560 mm |
| Product Color | Silver Grey |
| Color Family | Silver |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Sinusoidal |
| Input Voltage Range | 220 V AC - 240 V AC |
| 160 V AC - 275 V AC | |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 50 Hz |
| 60 Hz | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
