Smart-UPS Ultra 3kVA Li-ion 1U 230V Card
Smart-UPS Ultra 3kVA Li-ion 1U 230V Card
Product Overview

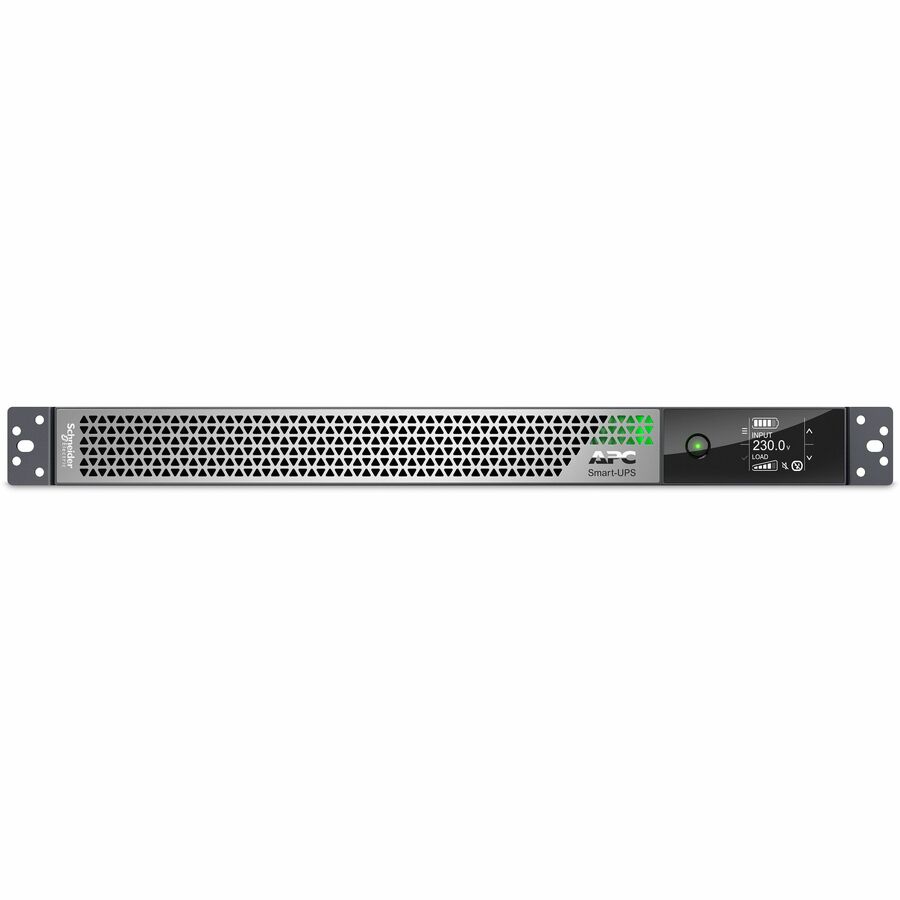

APC by Schneider Electric Smart-UPS Ultra Double Conversion Online UPS - 3 kVA/3 kW - 1U Rack-mountable - 1.50 Hour Recharge - 4.60 Minute Stand-by - 230 V Input - 230 V AC Output - 3 x IEC 320-C13 - Sine Wave - USB - LCD Display
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.- Keep your sensitive devices powered with a backup of up to 4.60 minute at full load
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 3 kW load capacity
Technical Specifications
Display & Graphics
Display | LCD |
Interfaces/Ports
USB | Yes |
Management
Network Management | Network Card |
Environmental Conditions
Sound Emission | 55 dB |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3.05 km |
Maximum Storage Elevation | 15.24 km |
Battery Information
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Size | 50V |
Battery Energy | 1209.6 kJ |
Backup/Run Time (Half Load) | 10 Minute |
Backup/Run Time (Full Load) | 4.60 Minute |
Typical Battery Recharge Time | 1.50 Hour |
Miscellaneous
Green Premium | Yes |
RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UINC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UINCKIT_ROHS_DECLARATION_US.pdf |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112324&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112324&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
REACH free of SVHC | No |
General Information
Product Type | Double Conversion Online UPS |
Manufacturer Part Number | SRTL3KRM1UINC |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Packaged Quantity | 1 |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS Ultra 3000VA Rack-mountable UPS |
Product Line | Smart-UPS Ultra |
Brand Name | APC by Schneider Electric |
Physical Characteristics
Weight (Approximate) | 15.90 kg |
Rack Height | 1U |
Height | 43 mm |
Width | 432 mm |
Depth | 560 mm |
Product Color | Silver Grey |
Color Family | Silver |
Mounting Location | Vertical |
Power Description
Input Voltage | 230 V |
Output Voltage | 230 V AC |
Waveform Type | Sine Wave |
Input Voltage Range | 160 V AC - 275 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 3 kVA |
Load Capacity (Watt) | 3 kW |
Technical Information
Application/Usage | Voice/Data Network |
Storage | |
Medical Laboratory | |
Light Industrial Application | |
Server | |
Cord Length | 2.44 m |
Receptacle Type | IEC 60320 C13 |
IEC 60320 C19 | |
Receptacle Detail | 3 x IEC 320-C13 |
