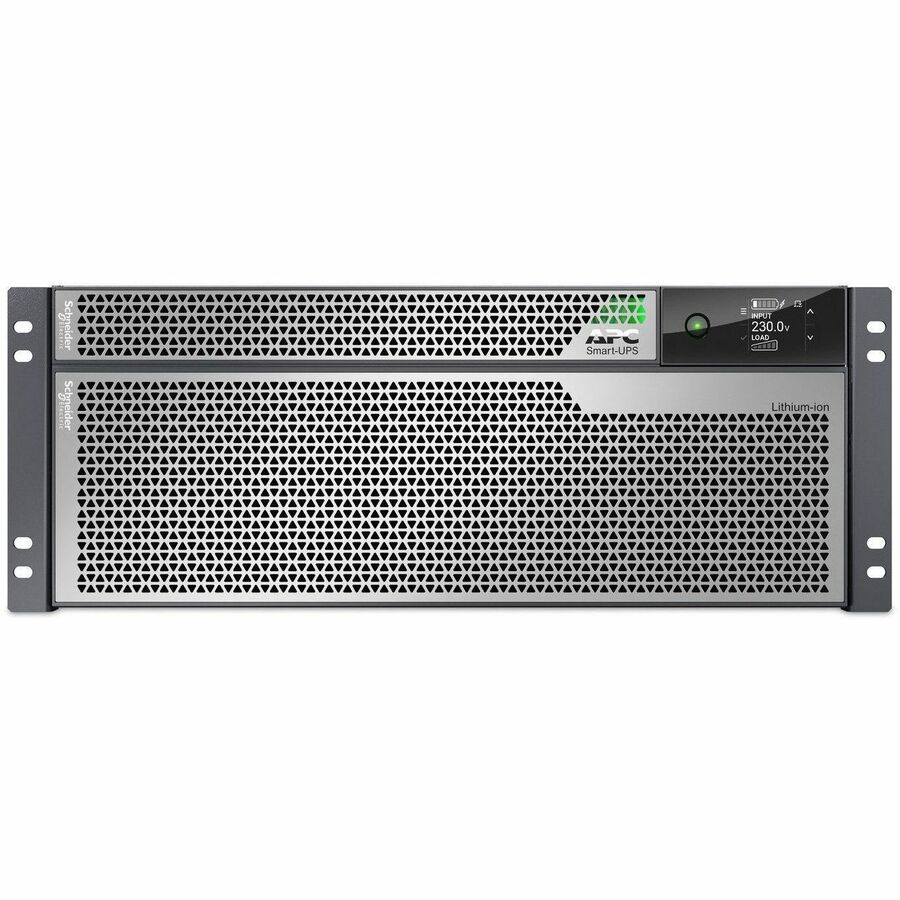

APC SMART-UPS ULTRA ON-LINE LI 8KVATWR
APC SMART-UPS ULTRA ON-LINE LI 8KVATWR
Product Overview
APC by Schneider Electric Smart-UPS Ultra Double Conversion Online UPS - 8 kVA/8 kW - 4U Rack/Tower - 1.50 Hour Recharge - 7.56 Minute Stand-by - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13 - Single Phase - Sine Wave - USB - LCD Display
With Smart-UPS™ Ultra you can put up to 8000W of power protection in places never before possible. Make installation effortless with a 8kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
- Up to 7.56 minute runtime on full load to preserve critical data from power shortage interruptions
- 8 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 8 kW load capacity
Technical Specifications
| Display | LCD |
| Network Management | Network Card |
| USB | Yes |
| EPO Port | Yes |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 1900 BTU/h |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
| Weight (Approximate) | 55 kg |
| Rack Height | 4U |
| Height | 175 mm |
| Width | 432 mm |
| Depth | 832 mm |
| Product Color | Silver Grey |
| Color Family | Silver |
| Features | Audible Alarm |
| Surge Suppression | Yes |
| Plug/Connector Type | Hard Wire 3-wire (1P+N+E) |
| Phase | Single Phase |
| Receptacle Type | Hard Wire 3-wire (1P + N + E) |
| IEC 60320 C13 | |
| IEC 60320 C19 | |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| 1 x Hard Wire 3-wire (1P + N + E) |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 4898.9 kJ |
| Backup/Run Time (Half Load) | 15.73 Minute |
| Backup/Run Time (Full Load) | 7.56 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 180 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTL8KRM4UI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra 8kVA Rack/Tower UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 220 V AC | |
| Surge Energy Rating | 1410 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 220 V AC - 240 V AC |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 40 Hz |
| 70 Hz | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 8 kW |
