Product Overview

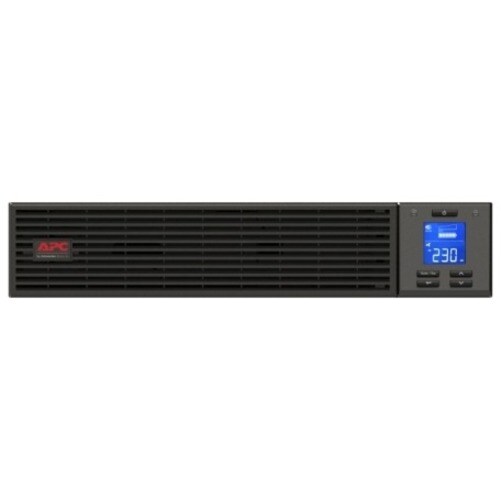

APC by Schneider Electric Easy UPS SRV1KRIRK Double Conversion Online UPS - 1 kVA/800 W - 2U Rack-mountable - 4 Hour Recharge - 230 V AC Input - 220 V AC Output - 3 x IEC 60320 C13 - Single Phase - Serial Port
Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
- 1 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 800 W load capacity
Technical Specifications
| Status Indicators | Multifunction LCD |
| Environmentally Friendly | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 9 km |
| Maximum Storage Elevation | 14.76 km |
| Alarm | Battery Mode |
| Battery Level | |
| Fault | |
| Bypass Mode |
| Weight (Approximate) | 11 kg |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 437 mm |
| Depth | 312 mm |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 220 V AC | |
| 240 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 280 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Battery Chemistry | Lead Acid |
| Battery Size | 24V |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Maintenance-free, Sealed |
| Replaceable Battery | Yes |
| DC System Voltage | 24 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRV1KRIRK |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV1KRIRK |
| Product Name | Easy UPS SRV1KRIRK 1000VA Rack-mountable UPS |
| Product Line | Easy UPS |
| Product Series | SRV |
| Brand Name | APC by Schneider Electric |
| Application/Usage | Business |
| Server | |
| Industrial Equipment | |
| Desktop Computer | |
| Communication System | |
| Workstation | |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Transfer Time | 0 ns |
| Receptacle Detail | 3 x IEC 60320 C13 |
