Product Overview

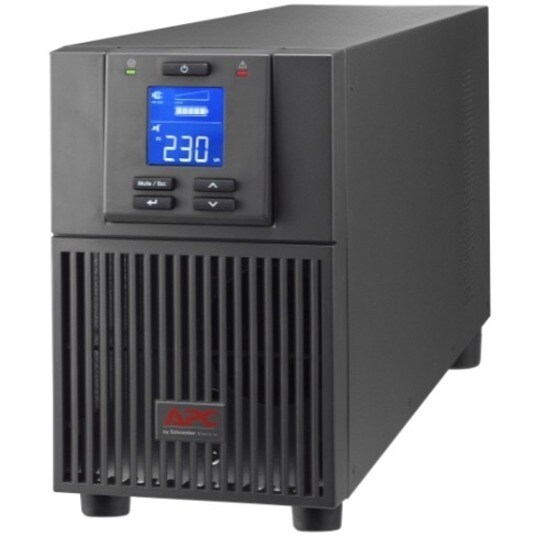

APC by Schneider Electric Easy UPS SRV2KIL Double Conversion Online UPS - 2 kVA/1.60 kW - Tower - 4 Hour Recharge - 230 V AC Input - 220 V AC Output - 4 x IEC 60320 C13 - Single Phase - Sine Wave - Serial Port
Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
- 2 kVA load capacity provides sufficient backup during power failures
- 1.60 kW load capacity - backup power for your valuable electronics
Technical Specifications
| Status Indicators | Multifunction LCD |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Serial Port | Yes |
| EPO Port | No |
| USB (HID Compliant) Port | Yes |
| Alarm | Battery Level |
| Overload | |
| Battery Mode |
| Weight (Approximate) | 16.80 kg |
| Height | 238 mm |
| Width | 145 mm |
| Depth | 400 mm |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 220 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 280 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.60 kW |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Water-proof |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRV2KIL |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV2KIL |
| Product Name | Easy UPS SRV2KIL 2KVA Tower UPS |
| Product Line | Easy UPS |
| Product Series | SRV |
| Brand Name | APC by Schneider Electric |
| Application/Usage | Industrial Equipment |
| Workstation | |
| Desktop Computer | |
| Communication System | |
| Business | |
| Server | |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Transfer Time | 0 ns |
| Receptacle Detail | 4 x IEC 60320 C13 |
