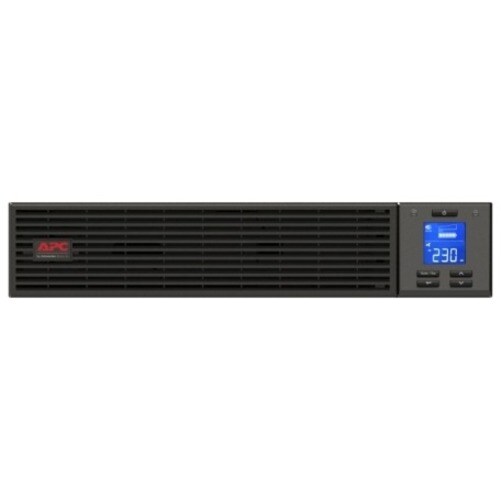

APC EASY UPS SRV RM 3000VA 230V
APC EASY UPS SRV RM 3000VA 230V
Product Overview
APC by Schneider Electric Easy UPS SRV3KRI Double Conversion Online UPS - 3 kVA/2.40 kW - 2U Rack-mountable - 4 Hour Recharge - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13, 1 x IEC 60320 C19 - Single Phase - Serial Port
Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
- 3 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 2.40 kW load capacity
Technical Specifications
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Alarm | On Battery |
| Overload | |
| Low Battery |
| Weight (Approximate) | 27.60 kg |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 220 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 280 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRV3KRI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV3KRI |
| Product Name | Easy UPS SRV RM 3000VA 230V |
| Product Line | Easy UPS |
| Brand Name | APC by Schneider Electric |
| Application/Usage | Business |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Transfer Time | 0 ns |
| Receptacle Detail | 1 x IEC 60320 C19 |
| 6 x IEC 60320 C13 |
