EASY UPS SRV 6000VA 230V
EASY UPS SRV 6000VA 230V
Product Overview

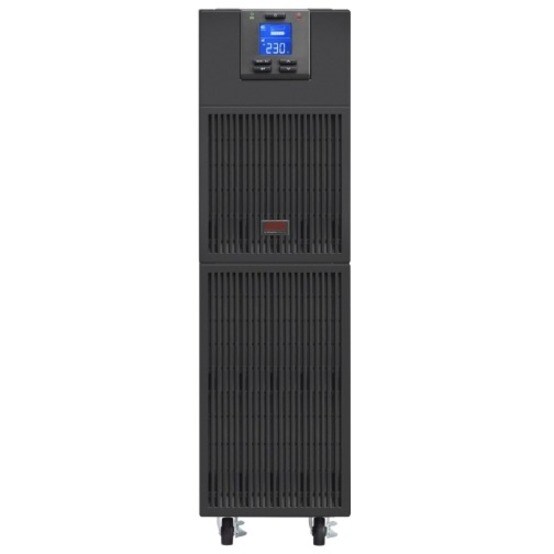

APC by Schneider Electric Easy UPS SRV6KI Double Conversion Online UPS - 6 kVA/6 kW - 3 Hour Recharge - 3.50 Minute Stand-by - 230 V AC Input - 220 V AC Output - Single Phase - Sine Wave - Serial Port
Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
- Up to 3.50 minute runtime on full load to preserve critical data from power shortage interruptions
- 6 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 6 kW load capacity
Technical Specifications
| Package Contents |
|
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Alarm | Low Battery |
| Overload | |
| On Battery |
| Weight (Approximate) | 54 kg |
| Height | 685 mm |
| Width | 190 mm |
| Depth | 374 mm |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 16 |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 3 Hour |
| Application/Usage | Business |
| Plug/Connector Type | Hard Wire 3-wire |
| Phase | Single Phase |
| Receptacle Type | Terminal Block |
| Transfer Time | 0 ns |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRV6KI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV6KI |
| Product Name | Easy UPS SRV 6000VA 230V |
| Product Line | Easy UPS |
| Brand Name | APC by Schneider Electric |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 240 V AC | |
| 230 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
