Easy UPS On-Line Li-Ion SRVL RT Ext. 230
Easy UPS On-Line Li-Ion SRVL RT Ext. 230
Product Overview

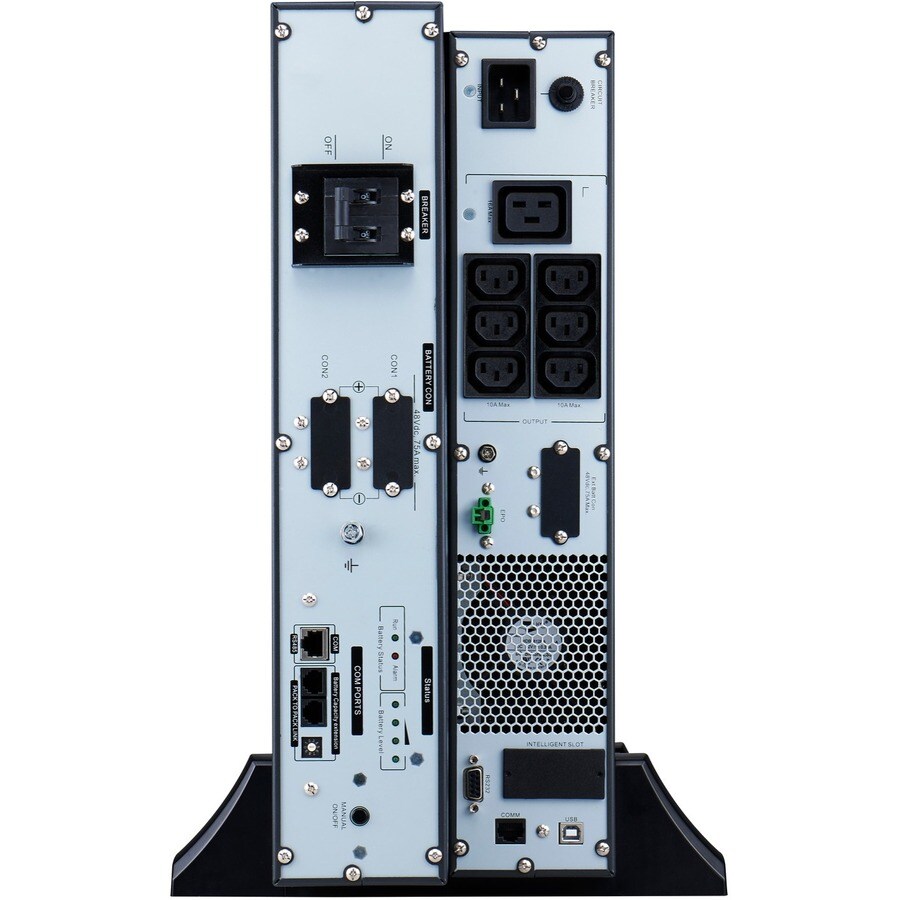

APC by Schneider Electric Easy UPS On-Line Double Conversion Online UPS - 3 kVA/2.70 kW - 4U Rack/Tower - 4.80 Hour Recharge - 45 Minute Stand-by - 120 V AC, 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13, 1 x IEC 60320 C19 - Single Phase - Sine Wave - Serial Port - USB - LCD Display
Easy UPS On-Line Li-Ion SRVL RT Ext. Runtime 3000VA 230V with Rail Kit- Keep your sensitive devices powered with a backup of up to 45 minute at full load
- 3 kVA load capacity provides sufficient backup during power failures
- 2.70 kW load capacity - backup power for your valuable electronics
Technical Specifications
Display & Graphics
| Display | LCD |
Miscellaneous
| Environmentally Friendly | Yes |
Warranty
| Additional Warranty Information | 3 years UPS repair or replace; 5 years battery repair or replace |
Environmental Conditions
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Sound Emission (A-Weighted) | 50 dB(A) |
Management
| Alarm | On Battery |
| Overload | |
| Low Battery |
Interfaces/Ports
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
Battery Information
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 48V |
| Backup/Run Time (Half Load) | 1.47 Hour |
| Backup/Run Time (Full Load) | 45 Minute |
| Typical Battery Recharge Time | 4.80 Hour |
Technical Information
| Application/Usage | Banking |
| Data Center | |
| Server Room | |
| IT | |
| POS | |
| Healthcare | |
| Surveillance System | |
| Plug/Connector Type | IEC 60320 C20 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 1 x IEC 60320 C19 |
| 6 x IEC 60320 C13 |
Physical Characteristics
| Weight (Approximate) | 38.30 kg |
| Rack Height | 4U |
| Height | 172 mm |
| Width | 438 mm |
| Depth | 616 mm |
| Product Color | Silver |
| Black | |
| Color Family | Dual Colour |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRVL3KRILRK |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS On-Line SRVL 3000VA Rack/Tower UPS |
| Product Line | Easy UPS On-Line |
| Product Series | SRVL |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 220 V AC | |
| Surge Energy Rating | 945 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 110 V AC - 300 V AC |
| 160 V AC - 300 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Output Power Factor | 0.9 |
