Dual Port Network Card PCIe 10G/NBASE-T
Dual Port Network Card PCIe 10G/NBASE-T
Product Overview

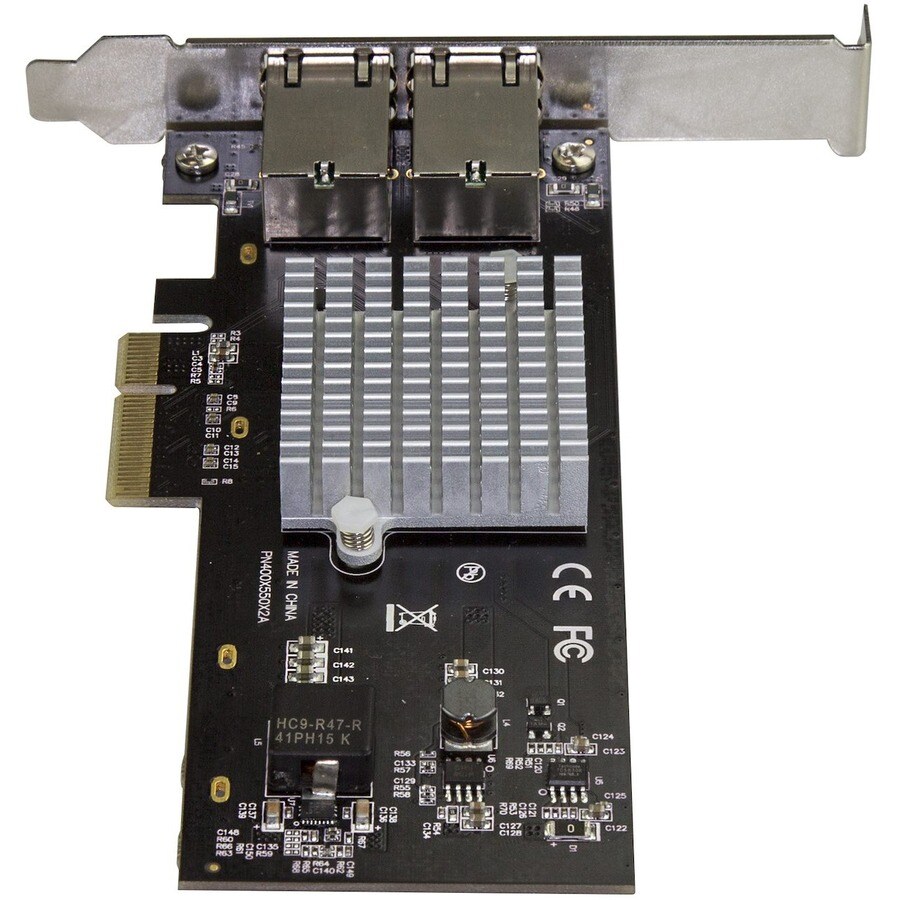

StarTech.com 10Gigabit Ethernet Card - 10GBase-T - Plug-in Card - PCIe Network Adapter Card Dual NIC ports Network Interface Card 2x 10 GbE RJ45 Ports - Intel X550AT Chip - 10GBASE-T / NBASE-T, Muli-Gigabit 1/2.5/5/10 Gbps, PCIe 3.0 x4, 15K Jumbo Frames, VLAN, PXE - Supports FCoE & iSCSI - 2 year warranty
This Thunderbolt™3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports.Reliable, high-performance and versatile multimode connectivity
This 10G network card utilizes the Intel® X550 chipset with Intel® Virtualization Technology for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections.
Install and assemble with ease
Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer.
Change up your chassis
The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly.
The TB31PCIEX16 and ST10GPEXNDPI are backed by a StarTech.com 2-year warranty.
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
- To accelerate IT services, increase data centre efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
- For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
Technical Specifications
| Media Type Supported | Twisted Pair |
| System Requirements |
|
| Network Technology | 10GBase-T |
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | ST10GPEXNDPI |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip |
| Brand Name | StarTech.com |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of Ports | 2 |
| Chipset Manufacturer | Intel |
| Chipset Model | X550AT |
| Weight (Approximate) | 1.63 kg |
| Form Factor | Plug-in Card |
| Height | 81.3 mm |
| Width | 142.2 mm |
| Depth | 279.4 mm |
| Product Color | Black |
