Product Overview

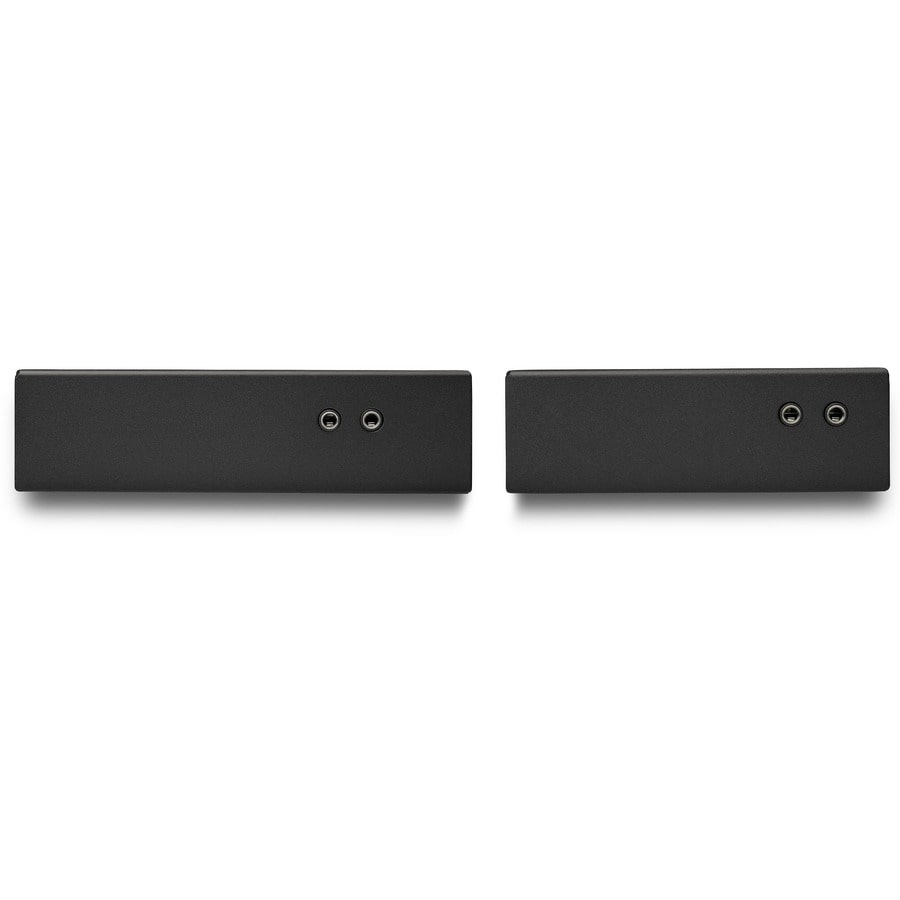

StarTech.com Video Extender Transmitter/Receiver - Wired - TAA Compliant - 1 Input Device - 1 Output Device - 100 m Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4096 x 2160 Video Resolution - 4K - Twisted Pair - Category 6

This HDMI Over CAT6 extendertransmitsyour HDMI audio/video signal to a remote location up to 100 m (328 ft.)away.

Get4K at 60Hz from 70 m (230 ft.)away

This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.)away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.)from your HDMI source.

With full support for your HDMI 2.0 equipment, including4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

Simplify your setup

The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that's already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

Technical Specifications

Video
Maximum Video Resolution4096 x 2160
Media & Performance
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Miscellaneous
Environmentally FriendlyYes
TAA CompliantYes
Technical Information
Connectivity TechnologyWired
Maximum Operating Distance100 m
Number of Output Devices Supported1
Number of Input Devices Supported1
Interfaces/Ports
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
General Information
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberST121HDBT20L
Manufacturer Website Addresshttp://www.startech.com/au
ManufacturerStarTech.com
Product NameHDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.)
Brand NameStarTech.com
Packaged Quantity ConditionKit
Physical Characteristics
Transmitter Height25.40 mm
Transmitter Width76.20 mm
Transmitter Depth101.60 mm
Receiver Height25.40 mm
Receiver Width76.20 mm
Receiver Depth101.60 mm
Transmitter Weight (Approximate)110 g
Receiver Weight (Approximate)110 g

Price Trend

Current Price
AUD 1,039.99
