VGA to Cat 5 Monitor Extender Kit
VGA to Cat 5 Monitor Extender Kit
Product Overview
StarTech.com Video Extender Transmitter/Receiver - Wired - TAA Compliant - 1 Input Device - 1 Output Device - 80 m Range - 2 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1200 Video Resolution - WUXGA - Twisted Pair - Category 5e

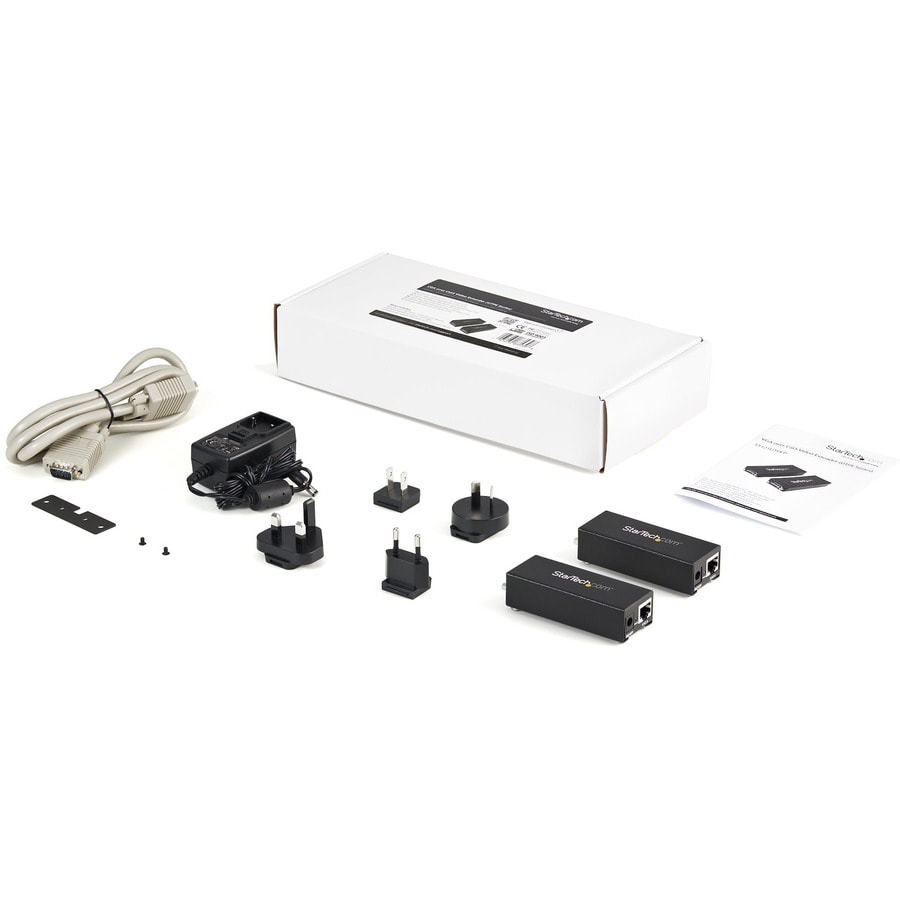

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical Specifications
| Maximum Video Resolution | 1920 x 1200 |
| Twisted Pair Cable Standard | Category 5e |
| Media Type Supported | Twisted Pair |
| Additional Information |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 80 m |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 1 |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST121UTPEP |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender |
| Brand Name | StarTech.com |
| Packaged Quantity Condition | Kit |
| Transmitter Height | 25.40 mm |
| Transmitter Width | 137.16 mm |
| Transmitter Depth | 99.06 mm |
| Receiver Height | 25.40 mm |
| Receiver Width | 137.16 mm |
| Receiver Depth | 99.06 mm |
| Transmitter Weight (Approximate) | 263 g |
| Receiver Weight (Approximate) | 263 g |
