2 PORT HDMI VIDEO SPLITTER AMPLIFIER
2 PORT HDMI VIDEO SPLITTER AMPLIFIER
Product Overview
StarTech.com HDMI Splitter 1 In 2 Out - 1080p - 2 Port - Signal Amplifier - Rugged - HDMI Multi Port - HDMI Audio Splitter - Displays the same image with sound on 2 screens; Splitter / signal amplifier - EDID between your video source and displays native settings - Supports HDMI audio or 3.5mm stereo audio connection - Up to 49ft (15m) HDMI Cable - Full HD 1080p; TAA

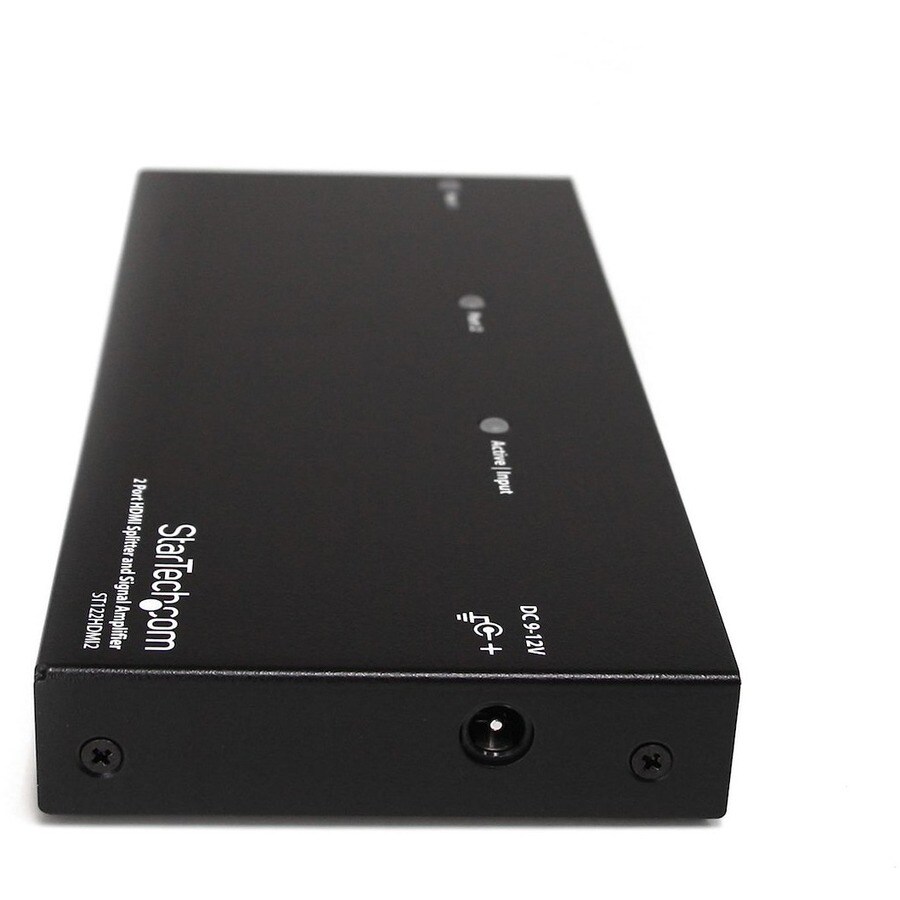

The ST122HDMI2 2-Port High Speed HDMI® Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
- 2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; Splits an HDMI video signal up to Full HD 1080p; Split an HDMI source signal to two displays, with no loss of signal quality, with this HDMI splitter and signal amplifier
- EDID EMULATION: 1x2 HDMI splitter automatically passes EDID between your video source and displays native settings such as resolution and refresh rate
- AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel
- EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
| Maximum Operating Distance | 15 m |
| Indicator Light | Yes |
| Maximum Video Resolution | 1920 x 1200 |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Input Voltage | 120 V AC |
| 230 V AC |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Weight (Approximate) | 379.9 g |
| Length | 180.3 mm |
| Height | 20.3 mm |
| Width | 78.7 mm |
| Product Color | Black |
| Product Material | Steel |
| Product Type | Signal Splitter |
| Manufacturer Part Number | ST122HDMI2 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 2-Port HDMI Splitter And Signal Amplifier |
| Brand Name | StarTech.com |
