4K HDMI 4-Port Video Splitter - 4K 30Hz
4K HDMI 4-Port Video Splitter - 4K 30Hz
Product Overview
StarTech.com 4K HDMI Splitter - 4k 30Hz - 4 Port - Aluminum - Backward Compatible - HDMI Multi Port - HDMI Hub - Displays the same image w/ sound on 4 screens - Splits an HDMI video signal up to dual HD/ 4K 30Hz - EDID between your video source and displays - Up to 16.4ft (5m) w/ a passive HDMI cable - 7.1 surround sound audio; No driver; Solid aluminum housing

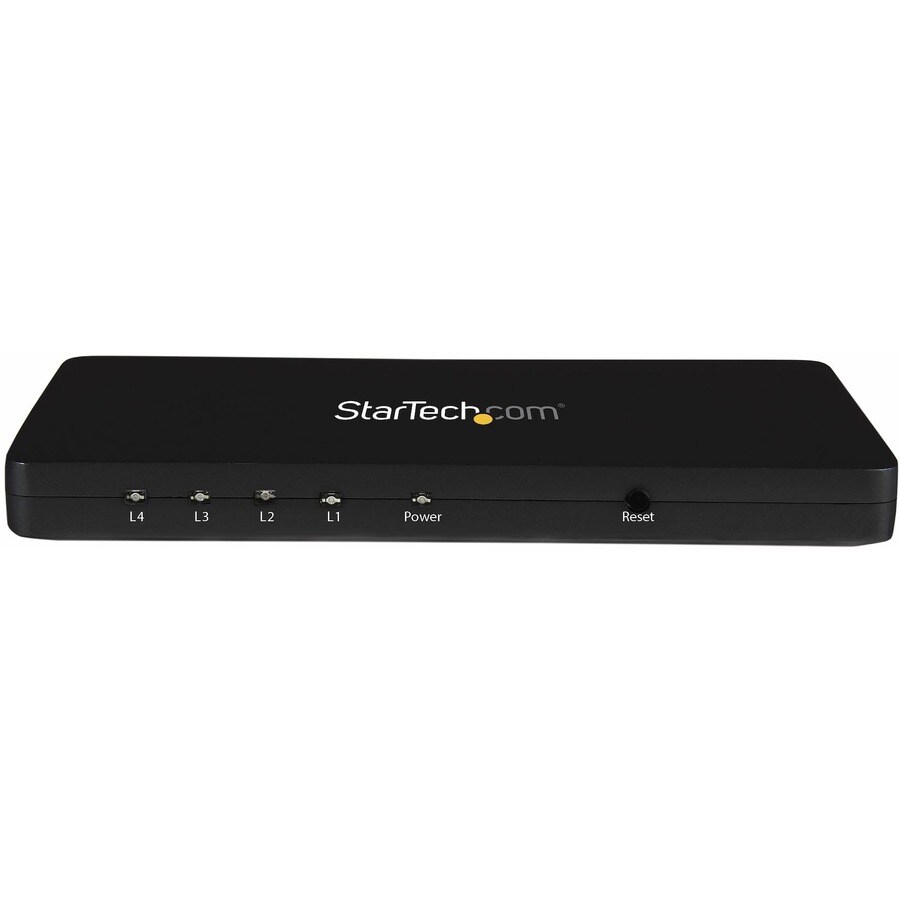

The ST124HD4K 4-port 4K HDMI splitter lets you share fourHDMI displays or projectors with anHDMI-enabled audio /video source devices,such as a computer, Blu-ray playerorcable TV set-topbox.
With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, fourtimes the resolution of high-definition1080p at30Hz.The 4K splitteris also backwardcompatible with previous HDMI revisions, supporting1080p / 720p HDMI video resolution devices.Even if you don't require4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.
Save time while setting up your splitter withEDID emulationensuring all of your native settings such asresolution and refresh rate are communicatedbetween your video source and displays. EDID emulationmaximizescompatibility with your 4K display, ensuring a convenient plug-and-play installation.
Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprintallows for seamless integration into any digital signage application.
The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
- 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to dual HD/ 4K 30Hz & 7.1 CH audio; Support for 7.1 surround sound audio
- EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and displays native settings such as resolution and refresh rate
- LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays
- EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 1.4 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with solid aluminum housing is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
| Additional Information |
|
| Input Voltage | 5 V DC |
| Maximum Frequency | 30 Hz |
| Product Type | Signal Splitter |
| Manufacturer Part Number | ST124HD4K |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 4K HDMI 4-Port Video Splitter-1x4 HDMI Splitter w/Solid Aluminum Housing-4K 30Hz |
| Brand Name | StarTech.com |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Weight (Approximate) | 280 g |
| Length | 139.7 mm |
| Height | 12.7 mm |
| Width | 83.8 mm |
| Product Color | Black |
| Product Material | Aluminium |
