4 Port High Speed HDMI Video Splitter
4 Port High Speed HDMI Video Splitter
Product Overview
StarTech.com HDMI Splitter 1 In 4 Out - 1080p - 4 Port -Mounting Brackets - 1.3 Audio - HDMI Multi Port - HDMI Audio Splitter - Displays the same image with sound on 4 screens; Splitter / signal amplifier - EDID between your video source and displays native settings - Supports HDMI audio or 3.5mm stereo audio connection - Up to 49ft (15m) HDMI Cable - Full HD 1080p; TAA

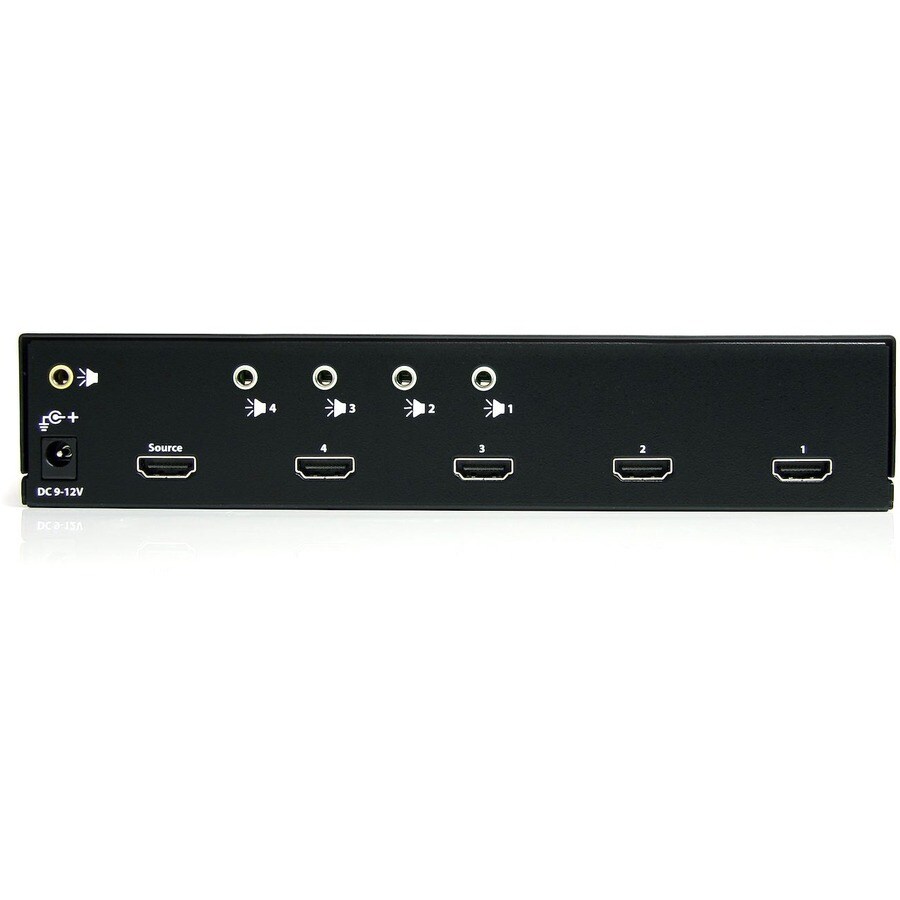

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.
Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
- 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Full HD 1080p; Split an HDMI source signal to four displays, with no loss of signal quality, with this HDMI splitter and signal amplifier
- EDID EMULATION: 1x4 HDMI splitter automatically passes EDID between your video source and displays native settings such as resolution and refresh rate
- AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel
- EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
| Maximum Operating Distance | 9.14 m |
| Maximum Video Resolution | 1920 x 1200 |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Input Voltage | 120 V AC |
| 230 V AC |
| Product Type | Signal Splitter |
| Manufacturer Part Number | ST124HDMI2 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 4-Port HDMI Splitter and Signal Amplifier |
| Brand Name | StarTech.com |
| Weight (Approximate) | 966 g |
| Length | 221 mm |
| Height | 43.2 mm |
| Width | 134.6 mm |
| Product Color | Black |
| Product Material | Steel |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Audio Line Out | 5 |
