Product Overview

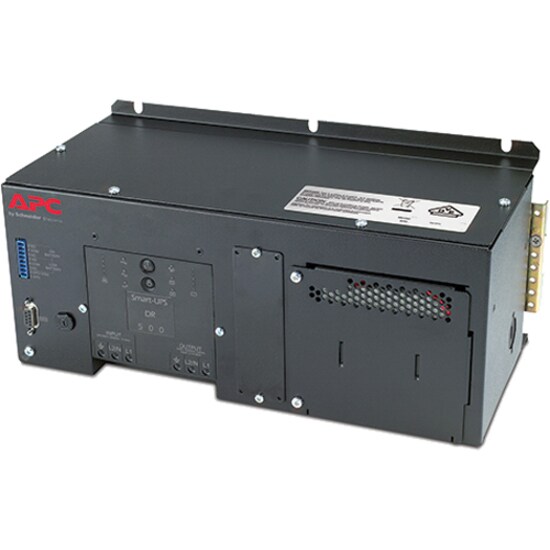

APC by Schneider Electric Line-interactive UPS - 500 VA/325 W - Wall Mountable, Panel Mount - 2.50 Hour Recharge - 8 Minute Stand-by - 230 V AC Output - Serial Port
Reliable protection for industrial controls.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.
- Experience higher efficiency with lower energy cost
- Up to 8 minute runtime on full load to preserve critical data from power shortage interruptions
- 500 VA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 325 W load capacity
Technical Specifications
| Status Indicators |
|
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Thermal Dissipation | 90 BTU/h |
| Maximum Operating Temperature | 40°C |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Alarm | Low Battery |
| Overload | |
| On Battery |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 24 Minute |
| Backup/Run Time (Full Load) | 8 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
| Output Voltage | 230 V AC |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 325 W |
| Dataline Protection | RS-232 |
| DB-9 | |
| Emergency Power OFF | Yes |
| Weight (Approximate) | 12.86 kg |
| Height | 148 mm |
| Width | 362 mm |
| Depth | 171 mm |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SUA500PDRI-H |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V |
| Brand Name | APC by Schneider Electric |
