Product Overview

APC by Schneider Electric Smart-UPS SUM1500RMXLI2U Line-interactive UPS - 1.50 kVA/1.43 kW - 2U Rack/Tower - 220 V AC Input - SNMP Manageable

Smart-UPS XL 1500VA Line Interactive UPS is high performance power protection with scalable runtime for servers, and voice and data networks. VoIP, e-commerce, WiFi, and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL 1500VA. This is also the perfect UPS for fileservers, minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime.

With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management. Connectivity is through a serial or USB port, an additional manageability is available through the SmartSlot. Intelligent Battery Management ensuring a highly available UPS, the Smart-UPS XL 1500VA is a UPS you can count on.

  • Works adequately in situations where the supply is prone to sags and surges
  • 1.50 kVA load capacity - work without any interruption during power outages
  • 1.43 kW load capacity - backup power for your valuable electronics

Technical Specifications

Controls/Indicators
Status Indicators

    LED status display with:

    • Load bar-graphs
    • Battery bar-graphs
    • On Line
    • On Battery
    • Replace Battery
    • Overload
    • Bypass
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Environmental Conditions
Thermal Dissipation300 BTU/h
Sound Emission (A-Weighted)55 dB(A)
Management
Battery ManagementIntelligent Battery Management
Network ManagementSNMP Manageable
Miscellaneous
Additional Information
    • Efficiency at Full Load: 89%
    • Output Voltage Distortion: less than 5% at full load
    • Crest Factor: Up to 5 : 1
    • Included Battery Modules: 1
    • Replacement battery cartridge: 1
    • Units per Pallet: 8.00
    • Replacement battery cartridge quantity: 1
    • Modular design
    • Remote group outlet control
    • Automatic restart of loads after UPS shutdown
    • Automatic Voltage Regulation (AVR)
    • Generator compatible
    • Plug-and-Play external batteries
    • Power conditioning
    • Predictive failure notification
Package Contents

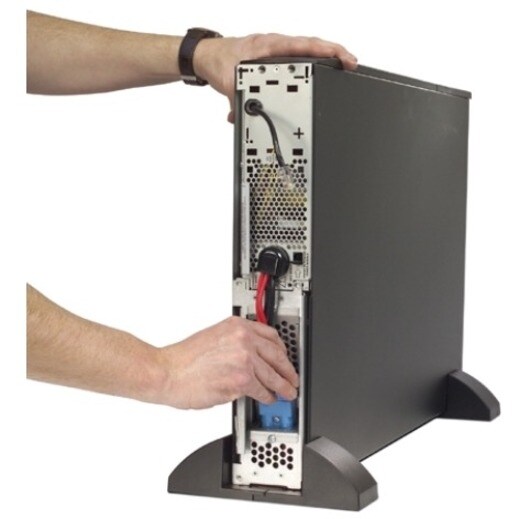

  • Smart-UPS XL 1500VA Rackmount/Tower
  • CD with software
  • Installation Guide
  • Rack Mounting Brackets
  • Rack Mounting support rails
  • Smart UPS signaling RS-232 cable
  • USB cable
  • User Manual
  • Web/SNMP Management Card
Certifications & Standards
    • C-tick
    • CE
    • EN 50091-2
    • EN 55022 Class A
    • EN 61000-3-2
    • GOST
    • UL 1449
Physical Characteristics
Weight (Approximate)46.72 kg
Rack Height2U
Height86.4 mm
Width431.8 mm
Depth678.2 mm
Product ColorBlack
Color FamilyBlack
Technical Information
Bypass SwitchAutomatic & Manual
Emergency Power OFFOptional
Plug/Connector TypeIEC 320-C14
Power Description
Input Voltage220 V AC
Surge Energy Rating490 J
Waveform TypeSine Wave
Load Capacity (VA)1.50 kVA
Load Capacity (Watt)1.43 kW
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberSUM1500RMXLI2U
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product ModelSUM1500RMXLI2U
Product NameSmart-UPS XL 1500VA Rackmount/Tower
Product LineSmart-UPS
Product SeriesXL
Brand NameAPC by Schneider Electric
