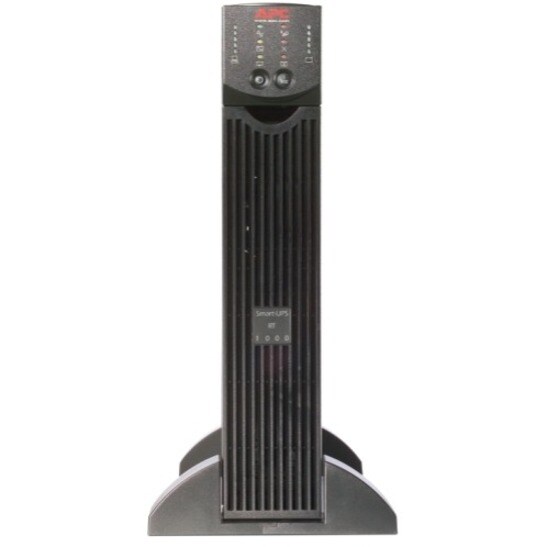

APC Smart-UPS RT 1000VA 230V
APC Smart-UPS RT 1000VA 230V
Product Overview
APC by Schneider Electric Smart-UPS SURT1000XLI Double Conversion Online UPS - 1 kVA/700 W - 2U Tower - 3 Hour Recharge - 10.20 Minute Stand-by - 220 V AC Input - 240 V AC, 230 V AC, 240 V AC Output - 2 x IEC 60320 C13, 6 - Serial Port
Smart-UPS RT 1000VA Tower, performance UPS for voice and data networks, medical labs, and light industrial applications. Users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT 100VA.
- Up to 10.20 minute runtime on full load to preserve critical data from power shortage interruptions
- 1 kVA load capacity provides sufficient backup during power failures
- 700 W load capacity - backup power for your valuable electronics
Technical Specifications
| Status Indicators |
LED status display with: |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Thermal Dissipation | 239 BTU/h |
| Maximum Operating Temperature | 50°C |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Battery Management | Intelligent battery management |
| Alarm | Overload |
| Low Battery | |
| On Battery |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 24.40 Minute |
| Backup/Run Time (Full Load) | 10.20 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 3 Hour |
| Bypass Switch | Automatic |
| Emergency Power OFF | Optional |
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C13 |
| 6 |
| Weight (Approximate) | 22.95 kg |
| Rack Height | 2U |
| Height | 431.8 mm |
| Width | 85.1 mm |
| Depth | 482.6 mm |
| Product Color | Black |
| Color Family | Black |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| Surge Energy Rating | 420 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURT1000XLI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SURT1000XLI |
| Product Name | Smart-UPS RT 1000VA Tower UPS |
| Product Line | Smart-UPS |
| Product Series | RT |
| Brand Name | APC by Schneider Electric |
