USB VGA KVM EXTENDER CAT5/6 UTP
USB VGA KVM EXTENDER CAT5/6 UTP
Product Overview

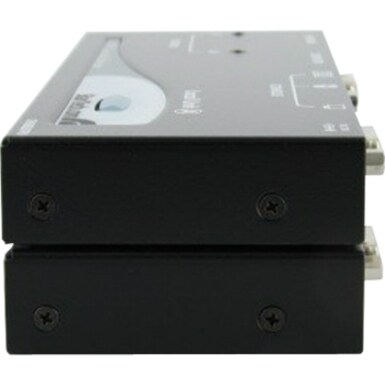

500ft VGA KVM Over IP Extender - PS/2 & USB Host - KVM Console Over CAT5 Ethernet for Multiple Servers / Computers (SV565UTPU)
The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.- REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control
- COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware
- FLEXIBLE CONFIGURATION: KVM console extender can be used with a single computer or connected to an existing KVM switch; Offers broad support for USB keyboards, mice, and even most combo/wireless configurations
- EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
Warranty
| Additional Warranty Information | This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
Physical Characteristics
| Product Color | Black |
| Color Family | Black |
Power Description
| Input Voltage | 240 V AC |
| 120 V AC |
Video
| Maximum Video Resolution | 1024 x 768 |
| Graphic Mode | XGA |
General Information
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | SV565UTPU |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Model | SV565UTPU |
| Product Name | USB VGA KVM Console Extender over CAT5 UTP - 500 ft |
| Brand Name | StarTech.com |
| Packaged Quantity Condition | Kit |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
Technical Information
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
Interfaces/Ports
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 4 |
| Number of VGA Ports | 4 |
