TB3DKM2DP with 30cm+ tether cable
TB3DKM2DP with 30cm+ tether cable
Product Overview
StarTech.com Thunderbolt 3 Docking Station for Notebook - Black, Silver - 2 Displays Supported - 4K - 3840 x 2160 - 1 x USB Type-A Ports - USB Type-A - 1 x RJ-45 Ports - Network (RJ-45) - DisplayPort - Wired - Gigabit Ethernet - Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2008 R2, Windows Server 2012, Mac OS X 10.10 Yosemite
This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K DisplayPort displays, Gigabit Ethernet, and one USB-A (USB 3.2) port and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).
Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to DisplayPort dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual DisplayPort monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to:
- 2x 4K DisplayPort (DP) displays (up to 4096 x 2160p @ 60Hz)
Compact Size & 11-Inch Attached Host Cable
At just 2.4"" x 4.9"" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

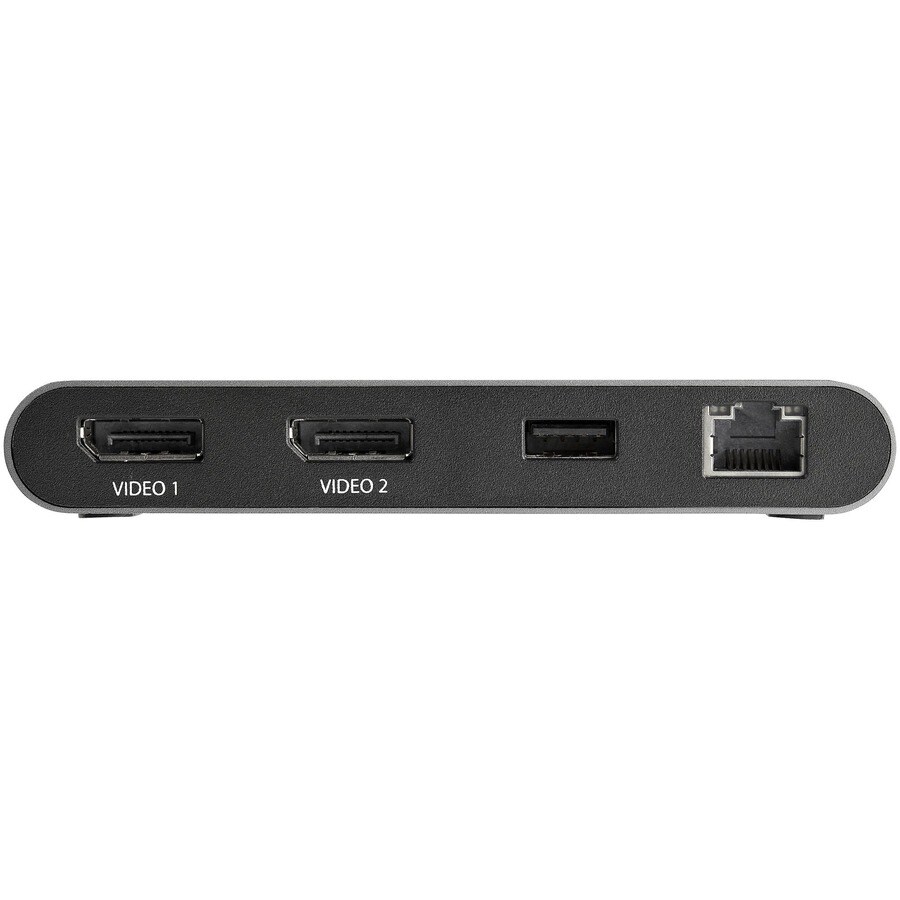

The Ports You Need Most
- 1x USB 3.2 Gen 1 Type-A port (5 Gbps)
- 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)
Ideal for Power-Demanding Workstation Setups
As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.
This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.""
The TB3DKM2DPL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.
- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40 Gbps); Dual 4K 60Hz DisplayPort (DP) outputs; 1x USB 3.2 Gen 1 Type-A (5Gbps) port; Gigabit Ethernet port with PXE boot and WoL
- FOR HIGH-POWERED LAPTOPS: Dual 4K 60Hz video output with direct GPU performance and no software or compression; Ideal for high-performance laptops that need a direct power adapter connection, but require Thunderbolt 3 dock performance & functionality
- COMPATIBILITY: Mini dock is compatible with Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later
- EXTRA-LONG CABLE: Attached 11in (28cm) cable provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Compatibility |
Compatible Products: |
| Environmentally Friendly | Yes |
| Brand Compatibility | Apple |
| Dell | |
| HP | |
| Lenovo |
| Operating System Supported | Mac OS X 10.10 Yosemite |
| Windows Server 2008 R2 | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 13.0 Ventura | |
| Windows 10 | |
| Windows 11 | |
| Windows 7 | |
| Windows 8.1 | |
| Windows Server 2012 |
| Weight (Approximate) | 147.4 g |
| Length | 124.5 mm |
| Height | 27.9 mm |
| Width | 68.6 mm |
| Product Color | Silver |
| Black |
| Product Type | Docking Station |
| Manufacturer Part Number | TB3DKM2DPL |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Docking Station |
| Brand Name | StarTech.com |
| Host Interface | Thunderbolt 3 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-A Ports | 1 |
| Number of USB 3.1 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| USB Type-A | Yes |
