DOCK THUNDERBOLT 3 - SD - DUAL-4K 85W PD
DOCK THUNDERBOLT 3 - SD - DUAL-4K 85W PD
Product Overview

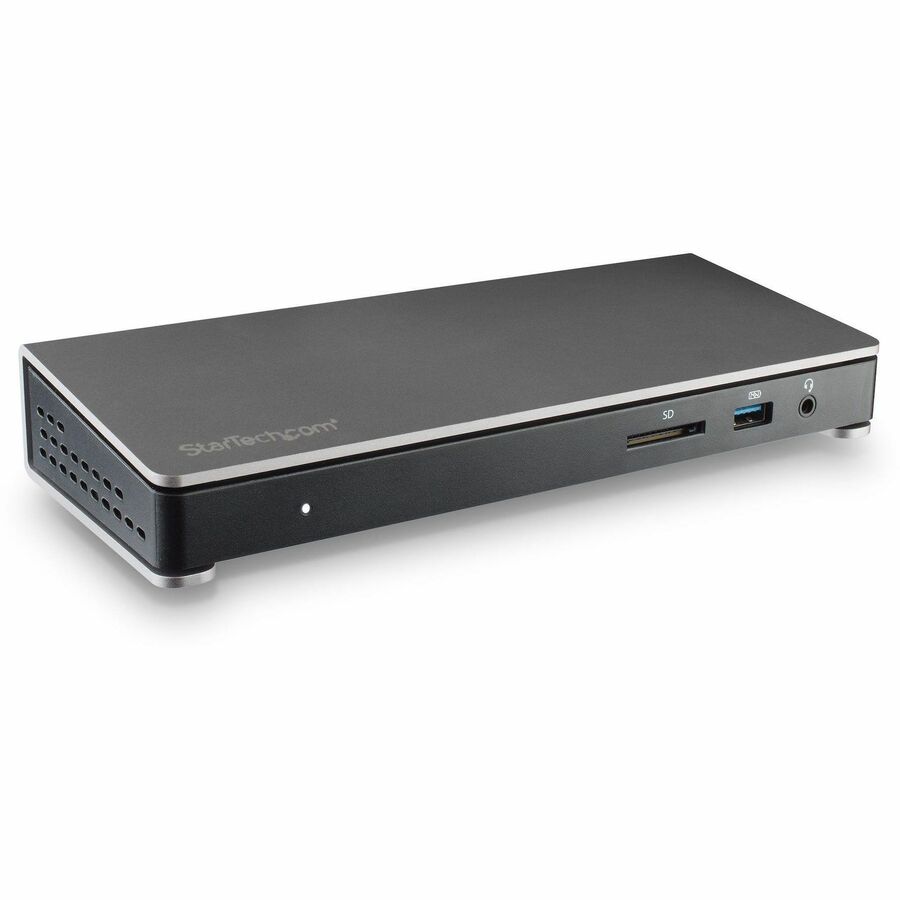

StarTech.com Thunderbolt 3 Docking Station for Notebook - Memory Card Reader - SD, SDHC, SDXC, microSDHC - 85 W - Space Gray - 2 Displays Supported - 4K - 4096 x 2160, 3840 x 2160 - 6 x USB Ports - 2 x USB 3.0 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - DisplayPort - Microphone - Thunderbolt - Wired - Gigabit Ethernet - macOS, Windows
Easily transformyourThunderbolt3equipped MacBook Pro or Windowslaptop intoa dual-4K workstationwith up to40Gbpsof throughput. The high-qualityTB3dockfeatures six USB 3.0 ports, 85W Power Delivery tocharge your laptop,andan SD card reader.
Create a Dual-4K 60Hz Workstation
Thisdual-monitor docking stationsupports40Gbpsspeeds and4K(4096 x 2160)resolution at60Hzon two monitors,enablingresource-demanding applications onindependent displays without draining system resources.The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hzon a single display.
Connect your laptop to:
- 1x4KmonitorviatheDP Port
- 1x4Kmonitor via the TB3USB-CPort(1.8 mcable included)
OR
- 1 x 5Kmonitorvia theDPandTB3 USB-C ports
Easy Installation & Deployment
Simply connect theTB3 dockto your laptop withtheincluded TB3 cable and start working immediately. Notime-consuming driver installations are required.Setup a secondmonitor using the includedUSB-C to DisplayPortcable adapter, eliminating the need for extra adapters.
Plenty of PortsIncluding SD Card Reader
TheTB3 docking stationoffers six USB 3.0 ports,including a Fast-Charge portandUSB-C port,anGbEportandaudio/microphone port.Thebuilt-in SD card readeradds storage notusuallyavailableon mostdocking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
TB3DOCK2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Easy Driverless setup; Thunderbolt 3 (40Gbps); Dual 4K 60Hz (DP + TB3) video output or single monitor 5K 30Hz; 5x USB Hub; SD 4.0 card reader, Gigabit Ethernet, headset port; 85W PD
- COMPATIBILITY: Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later; Included USB-C to DP cable for second monitor
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected; Included 6ft (1.8m) TB3 host cable
- FLEXIBLE THUNDERBOLT 3 PORT: Downstream TB3 port supports 3 modes of operation: 2nd monitor for dual 4K 60Hz video utilizing direct GPU performance with no software or compression, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories
- OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, Windows Layout and more
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Maximum Power Supply Wattage | 85 W |
| Operating System Supported | macOS |
| Windows |
| Weight (Approximate) | 492 g |
| Length | 222 mm |
| Height | 34 mm |
| Width | 87 mm |
| Product Color | Space Gray |
| Compatibility |
|
| Environmentally Friendly | Yes |
| Brand Compatibility | Lenovo |
| HP | |
| Dell | |
| Apple |
| Host Interface | Thunderbolt 3 |
| Microphone | Yes |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 2 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C (24 pin) USB 3.0 (5Gbps), 2 x Thunderbolt™ 3 USB-C (24-pin) (40Gbps) |
| Number of USB 3.1 Gen 1 Type-A Ports | 4 |
| USB Type-A | Yes |
| Product Type | Docking Station |
| Manufacturer Part Number | TB3DOCK2DPPD |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Dual 4K 60Hz Monitor Thunderbolt 3 Dock with 6x USB 3.0 Ports |
| Brand Name | StarTech.com |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
| Memory Card Supported | microSD |
| microSDHC | |
| SDHC | |
| SDXC | |
| MultiMediaCard (MMC) | |
| SD | |
| microSDXC | |
| Memory Card Reader | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 4096 x 2160 |
| 3840 x 2160 | |
| Screen Mode Supported | 4K |
