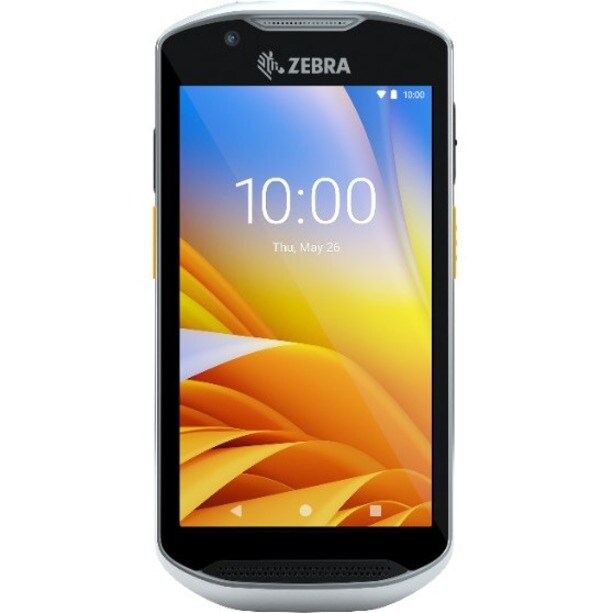

TC52AX WIFI 6 ROW HEALTHCARE SE4720 REAR

TC52AX WIFI 6 ROW HEALTHCARE SE4720 REAR

TC52AX WIFI 6 ROW HEALTHCARE SE4720 REAR

Product Overview

TC52AX WIFI 6 ROW HEALTHCARE SE4720 IMAGER REAR RED MECHANICAL BUTTON 7 PIN BOTTOM CONNECTOR 4/64GB RAM/UFS FLASH BT BEACON IN 4150 MAH BATT 5in FHD DISPLAY 2.45GHZ OCTA-CORE PROCESSOR GMS

The ultimate in rugged design, performance, productivity and ease of use:
The TC5X Series builds on the best-selling TC52 and TC57 rugged handheld mobile computers, with three models that deliver the ultimate in rugged, all-touch mobile computing. The Wi-Fi only TC52x and the Wi-Fi/cellular TC57x add support for the latest mobile innovations, paving the way for new apps that deliver more value and superior future-proofing - such as payment solutions. Support for more Mobility DNA tools makes everything easier - from the user interface to device management, integration and app development. The Wi-Fi only TC52ax adds Wi-Fi 6, a new scanner option with intelligent focusing, double the memory to boost application performance and the new Workstation Connect solution that allows the TC52ax to function simultaneously as a workstation and a mobile computer. And with LifeGuard 3, keeping all TC5X devices and data secure has never been easier. The TC5X Series - the ultimate rugged mobile computers, redefined.

A user experience in a class of its own: | Powerful advanced scanning for the fastest, easiest data capture:

Available in all models, the SE4720 delivers point-and-shoot simplicity with a large 'sweet spot' of up to 24 in./60 cm away, and easy capture of large barcodes at close range. Available in the TC52ax, the SE5500 Advanced Range Scan Engine with IntelliFocus™ technology intelligently adjusts to quickly capture barcodes in hand or over 40 ft./12 m2 away - ideal for dark stores and front-of-store micro-fulfillment centers. The best-in-class green laser aimer is designed for the extended scanning range. It's up to seven times more visible than a red laser. And instead of the typical aiming dot, the aiming pattern spreads out over several feet.
The result? Easy and accurate point-and-shoot aiming throughout the entire scan range - even in bright sunlight. And no matter which engine you choose, with Zebra's PRZM Intelligent Imaging Technology, you get the performance that has made Zebra the worldwide leader in barcode scanning - dependably fast first-time every-time barcode capture.

Maximize productivity with enterprise accessories
Backwards compatibility with all TC52/TC57 accessories allows you to cost-effectively upgrade to the latest technology. Support is built in for the new generation of payment solutions. And Zebra's HD4000 head-mounted display enables new cutting edge hands-free directed-action workflows.

Easily find misplaced devices
An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices. And with support for the latest version of Device Tracker, the TC52ax can be located - even if the device is turned off or the battery is dead.

Technical Specifications

Battery Information
Battery Capacity4100 mAh
Interfaces/Ports
USBYes
Power Description
Power SourceBattery
Display & Graphics
Screen Resolution1920 x 1080
Screen Size5"
Software
Operating SystemAndroid 11
Upgradable Operating SystemAndroid 14
Memory
Flash Memory64 GB
Standard Memory4 GB
Memory Card SupportedmicroSD
Camera
Rear CameraYes
Rear Camera Resolution13 Megapixel
Front CameraYes
Front Camera Resolution5 Megapixel
Physical Characteristics
Height159 mm
Width73.7 mm
Depth18.5 mm
RuggedYes
Technical Information
Connectivity TechnologyWireless
FeaturesGorilla Glass
Sensor TypePressure Sensor
Motion Sensor
Magnetometer
Light Sensor
Proximity
Scanner RangeStandard Range
Drop SpecificationMultiple 6ft./1.8 m drops to concrete with the rugged boot accessory per Mil STD 810 G; multiple 4 ft.1:2 m drops to tile cover concrete -10C to 50C /14F to 122F
Image Sensor TypeImager
Google Mobile Services (GMS)Yes
Scan Engine ModelSE4720
Scanning Capability2D
1D
Network & Communication
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth StandardBluetooth 5.1
Near Field Communication (NFC)Yes
Processor & Chipset
Processor Speed2.45 GHz
Processor TypeSnapdragon
Processor Model660
Processor CoreOcta-core (8 Core)
Processor ManufacturerQualcomm
General Information
Product TypeHandheld Terminal
Manufacturer Part NumberTC520L-1HCMH7T-A6
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelTC52ax
Product NameTC52ax Handheld Terminal
Product SeriesTC5X
Brand NameZebra
Miscellaneous
Application/UsagePublic Safety
Retail
Warehouse
Direct Store Delivery (DSD)
Courier Service
Field Sales/Service
Government
Environmentally FriendlyYes
TAA CompliantYes
Ingress Protection (IP) RatingIP68
IP65
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)

Price Trend

Current Price
AUD 3,392.31
