TOUCH 65 LITE BLACK USB KIT (INCLUDES
TOUCH 65 LITE BLACK USB KIT (INCLUDES
Product Overview

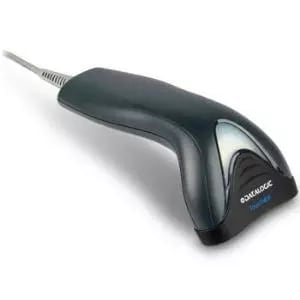

TOUCH 65 LITE BLACK USB KIT (INCLUDESTOUCH 65 LITE BLACK USB KIT (INCLUDES SCANNER HOLDER AND 90A052044 CABLE.)
The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Technical Specifications
| Host Interface | USB |
| Additional Information | USB Cable separate |
| Application/Usage | Library |
| Package Contents |
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) |
| Barcode Symbology Supported |
1D / Linear Codes: Stacked Codes: |
| Connectivity Technology | Cable |
| Scanning Distance | 150 mm |
| Maximum Scan Resolution | 0.10 mm |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Depth of Field |
|
| Scan Pattern | Omni-directional |
| Image Sensor Type | Linear |
| Imager | |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 20000 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 0.19 mm |
| Maximum Element Resolution (Code 39) | 0.25 mm |
| Weight (Approximate) | 130.4 g |
| Form Factor | Handheld |
| Height | 160 mm |
| Width | 58.4 mm |
| Depth | 83.8 mm |
| Product Color | Black |
| Color Family | Black |
| Rugged | Yes |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | TD1120-BK-65K1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Manufacturer | Datalogic S.p.A |
| Product Model | 65 Lite |
| Product Name | General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit |
| Product Line | Touch |
| Product Series | TD1100 |
| Brand Name | Datalogic |
