ATDEC TILT ANGLE WALL MOUNT
ATDEC TILT ANGLE WALL MOUNT
Product Overview
Atdec Wall Mount for TV - Black - 1 Display(s) Supported - 81.3 cm to 165.1 cm (65") Screen Support - 39.92 kg Load Capacity - 100 x 100, 100 x 200, 200 x 200, 200 x 300, 300 x 300, 300 x 400, 400 x 400, 400 x 600 - VESA Mount Compatible

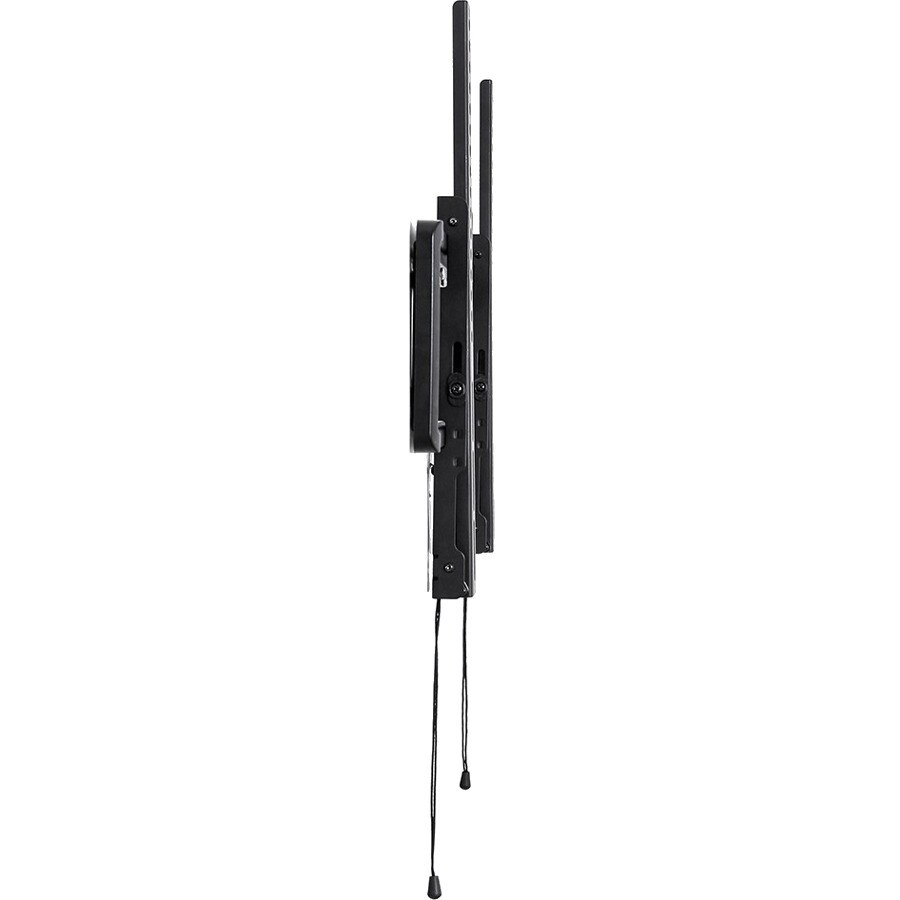

The TH-3065-LPT is a low-profile wall mounting solution for displays weighing up to 88lb. The slim profile offers a sleek look while quality construction ensures a lifetime of worry-free operation. TH-3065-LPT provides an adjustable downward tilt angle of up to 12°. Universal VESA support ensures a high level of display compatibility. The wall plate incorporates slotted holes for easy alignment during set up while the brackets allow for horizontal post-installation adjustments. A spring-assisted latching system on the mounting brackets provides a simple and secure method of attachment which also incorporates sash pulls for safe display release. This durable mount is made of 100% recyclable steel and is backed by our 10 year warranty.
Technical Specifications
| Compatibility |
|
| Assembly Required | Yes |
| Product Type | Wall Mount |
| Manufacturer Part Number | TH-3065-LPT |
| Manufacturer Website Address | http://www.atdec.com.au |
| Manufacturer | Atdec Pty Ltd |
| Product Name | Low-profile Single Display LCD/LED/Plasma TV Wall Mount |
| Brand Name | Atdec |
| Device Supported | TV |
| Features | Pan |
| Quick Release Mechanism | |
| Spring Loaded Mechanism | |
| Tilt | |
| Adjustable Viewing Angle | |
| Maximum Load Capacity | 39.92 kg |
| Minimum Screen Size Supported | 81.3 cm |
| Maximum Screen Size Supported | 165.1 cm (65") |
| Maximum Adjustable Depth | 88.9 cm |
| Number of Displays Supported | 1 |
| Height | 42.9 cm |
| Width | 69.3 cm |
| Depth | 3.3 cm |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 300 x 400 |
| 300 x 300 | |
| 200 x 300 | |
| 400 x 600 | |
| 400 x 400 | |
| 200 x 200 | |
| 100 x 200 | |
| 100 x 100 | |
| Product Color | Black |
| Product Material | Steel |
