Product Overview

Atdec TH-3270-UFM Mounting Arm for Flat Panel Display - Silver - 1 Display(s) Supported - 106.7 cm to 177.8 cm (70") Screen Support - 49.90 kg Load Capacity - 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400, 800 x 200, 800 x 400, 200 x 300 - VESA Mount Compatible

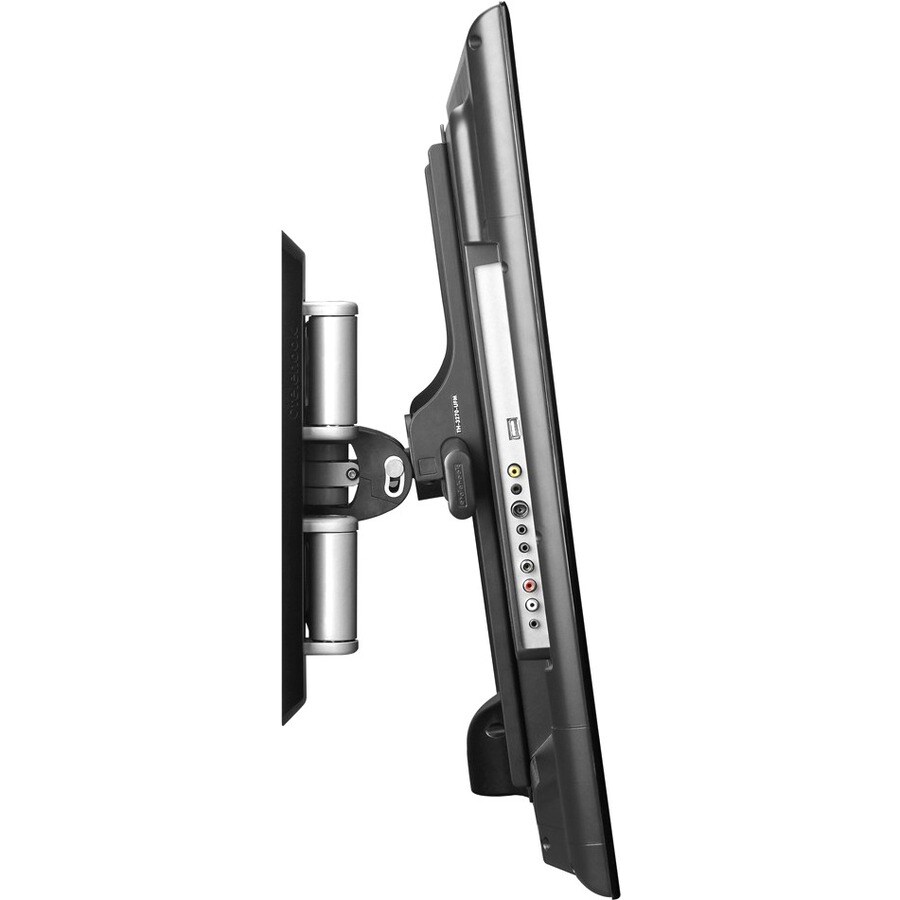

The TH-3270-UFM combines cutting edge, sleek design with the capacity to hold a 110lb display out from the wall. Full motion capability is delivered by three articulated points that give you complete control over tilt, pan, swing, pull out and pivot. Such superior control with minimal effort is thanks to Smooth Glide technology and spring assisted tilting mechanisms. The die cast aluminum arm can extend out to 25in from the wall and the universal mounting hole pattern ensures this mount is compatible with a vast range of TVs. It comes pre- assembled, with a design that guarantees quick and easy installation. The display can be mounted in either portrait or landscape mode.

Technical Specifications

Miscellaneous
Additional Information
    • Spring supported tilt adjustment -5°/+20°
    • TV horizontal adjustment of -/+5°
    • Maximum reach from wall 635mm
    • Minimum distance from wall 174mm
    • Smooth Glide technology for effortless articulation or movement
    • Offers a full range of movement via three pivot points
    • Designed for simple installation
    • Quick release mechanism for fast TV attachment or removal
    • Advanced internal cable management
    • Theft resistant design
Compatibility
    • LED
    • LCD
    • Plasma
Assembly RequiredYes
General Information
Product TypeMounting Arm
Manufacturer Part NumberTH-3270-UFM
Manufacturer Website Addresshttp://www.atdec.com.au
ManufacturerAtdec Pty Ltd
Product ModelTH-3270-UFM
Product Name3270 Wall/Full Motion
Brand NameAtdec
Product Information
Device SupportedFlat Panel Display
FeaturesArticulating
Cable Management
Pan
Quick Release Mechanism
Theft Resistant
Tilt
Maximum Load Capacity49.90 kg
Minimum Screen Size Supported106.7 cm
Maximum Screen Size Supported177.8 cm (70")
Maximum Adjustable Depth63.5 cm
Number of Displays Supported1
Physical Characteristics
Depth15.5 cm
VESA Mount CompatibleYes
Mounting Pattern800 x 200
800 x 400
600 x 400
400 x 400
400 x 300
300 x 300
200 x 300
200 x 200
200 x 100
100 x 100
Product ColorSilver
Product MaterialAluminium
Steel
