PROJECTOR CEILNG MOUNT FLUSH/WHITE

PROJECTOR CEILNG MOUNT FLUSH/WHITE

PROJECTOR CEILNG MOUNT FLUSH/WHITE

Product Overview

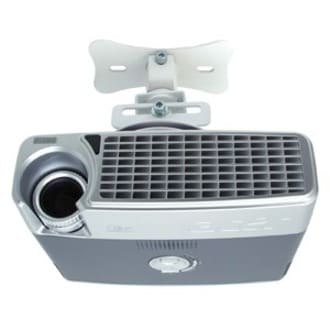

Atdec TH-WH-PJ-FM Ceiling Mount for Projector - Silver - Height Adjustable - 14.97 kg Load Capacity

The TH-WH-PJ-FM flush projector mount is easy to install and packed with innovative features. It offers 360° of projector rotation, letting you reposition your presentation or moving pictures wherever you want them. Pitch and roll can also be adjusted and the whole projector can be quickly installed and removed for easy maintenance or replacement using the quick release mechanism. This mount will suit a broad range of projectors up to 33lb, thanks to its universal mounting hole pattern.

Technical Specifications

Miscellaneous
Additional Information
    • Quick & easy installation
    • Fast disconnect mechanism for easy maintenance
    • Distance from ceiling 5"(127mm)
    • Mounts projector 127mm (5")from ceiling
    • Maximum: Roll adjustment: +/- 20°
    • Maximum: Pitch adjustment: +/- 40°
    • Quick release mechanism for easy installation or removal for maintenance purposes
    • 360 Degrees rotation
Application/UsageProjector
Package Contents
  • 1 x Flush Mount Assembly
  • 2 x 50mm Extension Brackets
  • 2 x 75mm Extension Brackets
  • 2 x 100mm Extension Brackets
  • 2 x 150mm Extension Brackets
  • 8 x Square Nut
  • 4 x M5 x 10 mm Socket Button Cap Screw
  • 1 x 6mm Allen Key
  • 2 x Nylon Anchor Plug
  • 2 x 20mm Washer
  • 4 x 10mm Washer
  • 4 x 8mm Washer
  • 4 x M2.5 x 15 Crossed Recessed Screws
  • 4 x M3 x 15 Crossed Recessed Screws
  • 4 x M3 x 20 Crossed Recessed Screws
  • 4 x M4 x 15 Crossed Recessed Screws
  • 4 x M4 x 20 Crossed Recessed Screws
  • 4 x M4 x 25 Crossed Recessed Screws
  • 4 x M5 x 15 Crossed Recessed Screws
  • 4 x M5 x 20 Crossed Recessed Screws
  • 4 x M5 x 25 Crossed Recessed Screws
  • 4 x M6 x 15 Crossed Recessed Screws
  • 4 x M6 x 20 Crossed Recessed Screws
  • 4 x M6 x 25 Crossed Recessed Screws
  • 4 x Bottom Spacer
  • 1 x 3mm Allen Key
  • 2 x 14 Gauge Coach Screw
  • 4 x Large Spacer
  • 4 x Medium Spacer
  • 4 x Small Spacer
Assembly RequiredYes
Product Information
Device SupportedProjector
Features360° Rotation
Cable Management
Swivel
Roll Adjustment
Quick Release Mechanism
Pitch Adjustment
Maximum Load Capacity14.97 kg
Height AdjustableYes
Physical Characteristics
Weight (Approximate)1.91 kg
Height14 cm
Width13.3 cm
Product ColorSilver
Product MaterialSteel
General Information
Product TypeCeiling Mount
Manufacturer Part NumberTH-WH-PJ-FM
Manufacturer Website Addresshttp://www.atdec.com.au
ManufacturerAtdec Pty Ltd
Product ModelTH-WH-PJ-FM
Product NameTH-WH-PJ-FM Universal Projector Ceiling Flush Mount
Brand NameAtdec

Price Trend

Current Price
AUD 249.00
