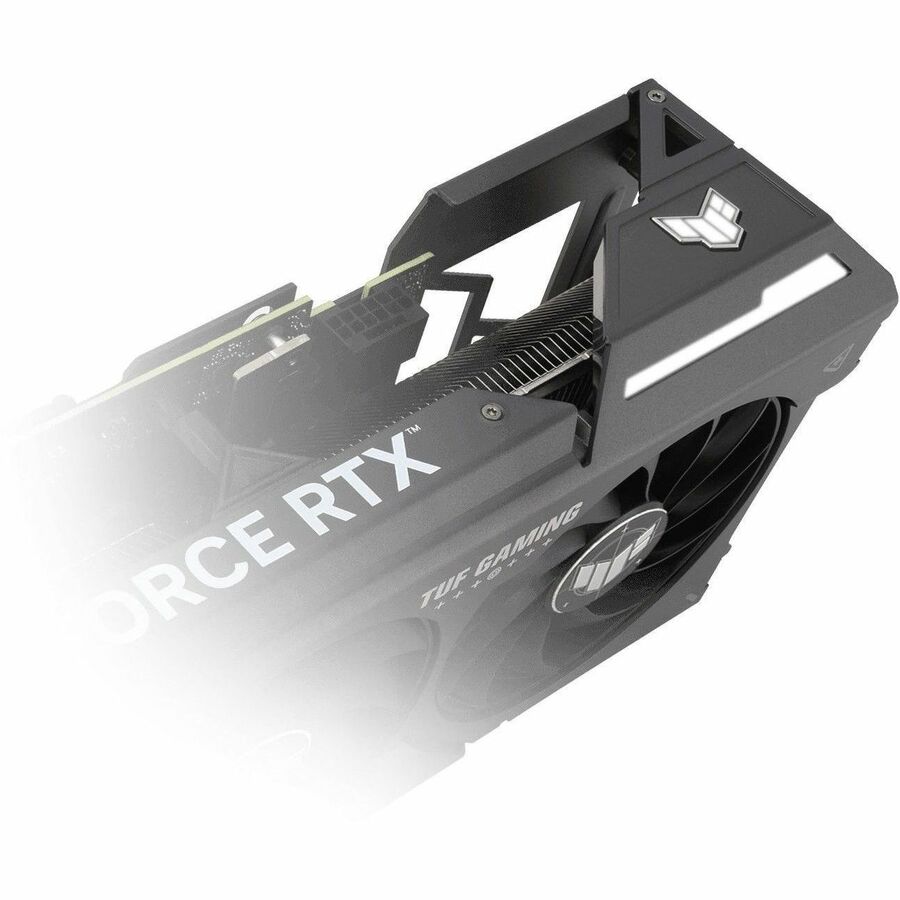

TUF-RTX4070S-O12G-GAMING
TUF-RTX4070S-O12G-GAMING
Product Overview
TUF NVIDIA GeForce RTX 4070 SUPER Graphic Card - 12 GB GDDR6X - 7680 x 4320 - 2.60 GHz Boost Clock - 192 bit Bus Width - PCI Express 4.0 - DisplayPort - 3 x DisplayPort - HDMI
ASUS TUF Gaming GeForce RTX 4070 SUPER 12GB GDDR6X OC Edition with DLSS 3, lower temps, and enhanced durability
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores:Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores:Up to 2X ray tracing performance
- OC mode: 2595 MHz (OC mode)/ 2565 MHz (Default mode)
- Axial-tech fansscaled up for 21% more airflow
- Dual ball fan bearingslast up to twice as long as conventional designs
- Military-grade capacitorsrated for 20K hours at 105C make the GPU power rail more durable
- Vented exoskeletonadds structural rigidity and vents to increase heat reliability
- Auto-Extremeprecision automated manufacturing for higher reliability
- GPU Tweak IIIsoftware provides intuitive performance tweaking, thermal controls, and system monitoring
ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX 4070 SUPER.
NVIDIA Ada Lovelace Architecture Designed to Give You Superpowers
New Streaming Multiprocessors
- Up to 2X performance and power efficiency
Fourth-Gen Tensor Cores
- Up to 4X performance with DLSS 3
- vs. brute-force rendering
Third-Gen RT Cores
- Up to 2X ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace Architecture
Realistic andImmersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voiceand Video
RTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers
AXIAL-TECH UPGRADES Air Superiority
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
- Cost-efficient NVIDIA GeForce RTX 4070 SUPER provides effective Blu-ray playback acceleration and great gaming experience
- Loaded with a power-efficient fan to dissipate heat and as a result, you get enduring usability
- Built-in 12 GB memory for a crisp and detail display
Technical Specifications
| Power Supply Wattage | 750 W |
| Power Connector | 1x 16-pin |
| Standard Memory | 12 GB |
| Memory Technology | GDDR6X |
| Bus Width | 192 bit |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Form Factor | Plug-in Card |
| Length | 301 mm |
| Cooler Type | Fan Cooler |
| Height | 63 mm |
| Width | 139 mm |
| Slot Space Required | Triple |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 4070 SUPER |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| GPU Boost Clock | 2.60 GHz |
| API Supported | OpenGL 4.6 |
| Features | Triple-fan Cooler |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 7168 |
| Product Type | Graphic Card |
| Manufacturer Part Number | TUFRTX4070SO12GGAMING |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | TUF-RTX4070S-O12G-GAMING |
| Product Name | Gaming GeForce RTX 4070 SUPER 12GB GDDR6X OC Edition Graphic Card |
| Brand Name | TUF |
