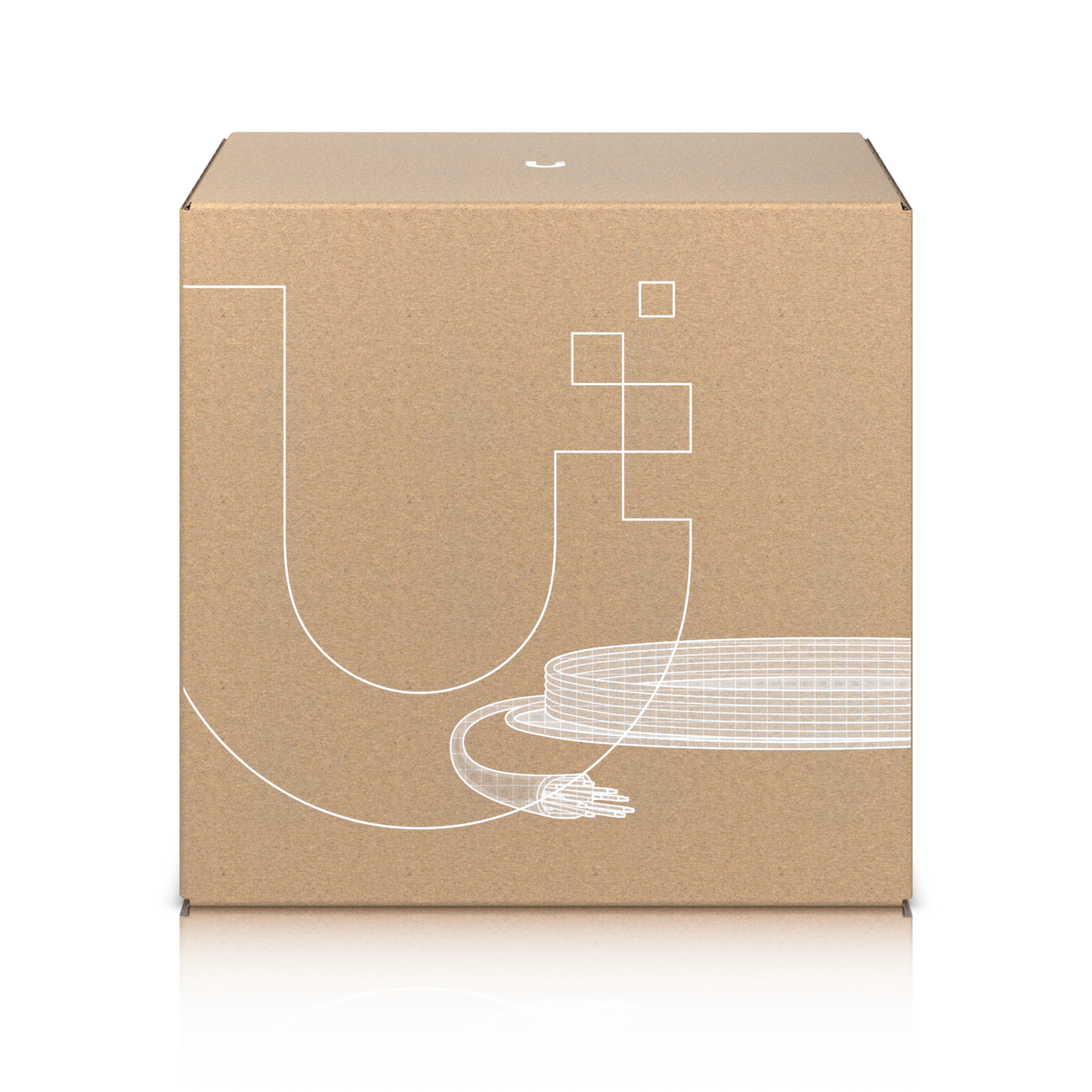

U-Cable-C6-CMR
Product Overview
| Mechanical | |
|---|---|
| Box dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box weight | 14.8 kg (32.7 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 6 |
| Shielding type | UTP |
| Flame rating | CMR |
| Conductor wire gauge | 23 AWG |
| Conductor type | Solid bare copper |
| Jacket material | PVC |
| Jacket diameter | 6.0 ± 0.2 mm |
| Bend radius | Min. 24 mm |
| Pulling tension | Max. 110 N |
| Storage temperature | -20 to 75°C (-4 to 167°F) |
| Installation temperature | 0 to 60°C (32 to 140°F) |
| Ambient operating temperature | -20 to 60°C (-4 to 140°F) |
| Anti-crosstalk divider | Yes |
| Ripcord | Yes |
| Data rate | 10/100/1000 Base-T |
| Reference bandwith | Up to 600 MHz |
| Standards | Electrical transmission: ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame test: UL 1666 (CMR) Material and construction: UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
Technical Specifications
| Mechanical | |
|---|---|
| Box dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box weight | 14.8 kg (32.7 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 6 |
| Shielding type | UTP |
| Flame rating | CMR |
| Conductor wire gauge | 23 AWG |
| Conductor type | Solid bare copper |
| Jacket material | PVC |
| Jacket diameter | 6.0 ± 0.2 mm |
| Bend radius | Min. 24 mm |
| Pulling tension | Max. 110 N |
| Storage temperature | -20 to 75°C (-4 to 167°F) |
| Installation temperature | 0 to 60°C (32 to 140°F) |
| Ambient operating temperature | -20 to 60°C (-4 to 140°F) |
| Anti-crosstalk divider | Yes |
| Ripcord | Yes |
| Data rate | 10/100/1000 Base-T |
| Reference bandwith | Up to 600 MHz |
| Standards | Electrical transmission: ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame test: UL 1666 (CMR) Material and construction: UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
