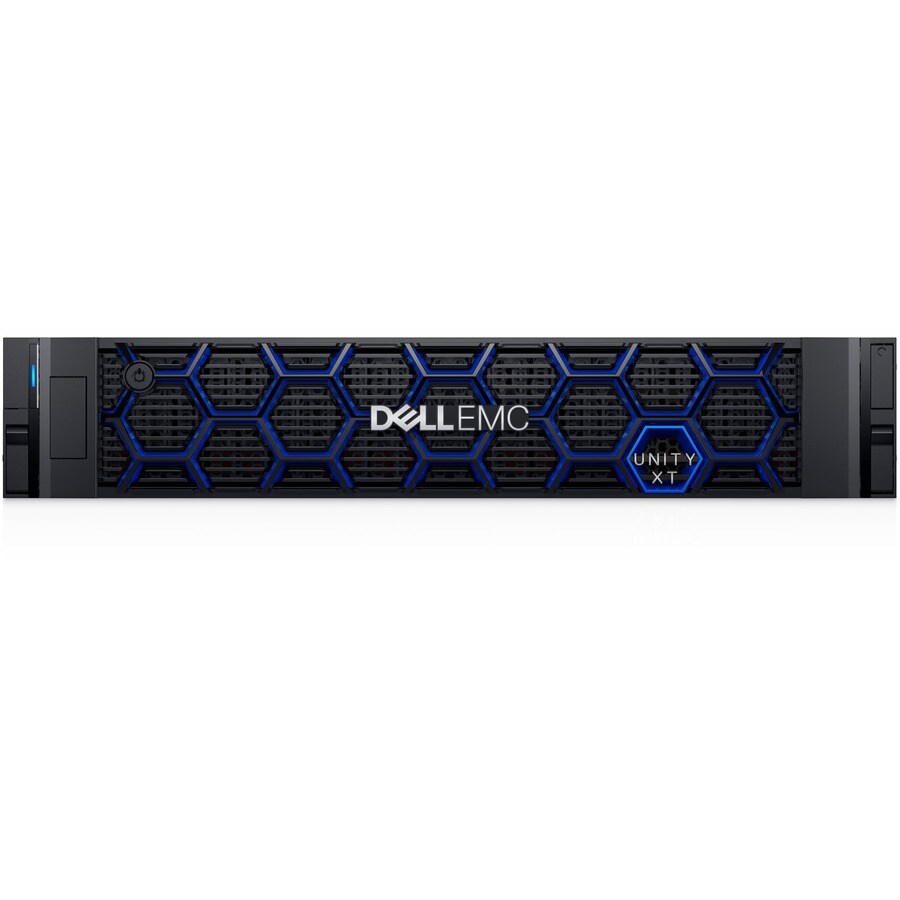

DELL EMC UNITY XT 480F 42TBE 16GB FC/25G
DELL EMC UNITY XT 480F 42TBE 16GB FC/25G
Product Overview
DELL EMC UNITY XT 480F 42TBE 16GB FC/25GB ISCSI 2U DUAL CONTROLLER 1.92TB 2.5" SSD 12/25 NVME READY BASE LICENCE RP BASIC+VM APPSYNC BASIC PS 2/2 3YR PRO SUPPORT MC 24X7X4HR
DELL EMC UNITY XT STORAGE SERIES
Simplify the path to IT transformation and unlock the full potential of your data capital with the new Dell EMC Unity XT storage arrays that feature up to 2X more IOPS, more memory, and up to 50% more drives than previous Dell EMC Unity models. These All-Flash and Hybrid storage systems with dual-active controller architecture and enterprise-class features are designed for performance, optimized for efficiency with up to 5:1 data reduction, and built to simplify your multi-cloud journey.
Architecture
Based on the powerful family of Intel Xeon™ processors, Dell EMC's Unity XT storage systems implement an integrated architecture for block, file, and VMware VVols with concurrent support for native NAS, iSCSI, and Fibre Channel protocols. Each system leverages dual storage processors, full 12 Gb SAS back end connectivity and Dell EMC's patented multicore architected operating environment to deliver unparalleled performance & efficiency. Additional storage capacity is added via Disk Array Enclosures (DAEs).
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 1.80 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
Technical Specifications
| Environmentally Friendly | Yes |
| Protocols | NLM |
| DFS | |
| NLMv3 | |
| NLMv4 | |
| NTP | |
| SFTP | |
| SMB 1.0 | |
| SMB 2.0 | |
| SMB 3.0 | |
| SMB 3.0.2 | |
| SMB 3.1.1 | |
| SMTP | |
| SNMP | |
| SSL/TLS | |
| NDMP v4 | |
| NFSv3 | |
| NFSv4 | |
| NFSv4.1 | |
| NIS | |
| FCP | |
| FTP | |
| HTTP | |
| ICMP | |
| IPv4 | |
| IPv6 | |
| iSCSI | |
| NDMP | |
| NDMP v2 | |
| NDMP v3 | |
| Kerberos | |
| LDAP | |
| ARP | |
| CIFS/SMB |
| Number of Solid State Drive Supported | 25 |
| Number of Total Expansion Bays | 25 |
| "Number of 2.5"" Bays" | 25 |
| RAID Levels | 0, 1, 5, 6 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Host Interface | 12Gb/s SAS |
| Fibre Channel | Yes |
| Number of SAS Ports (External) | 4 |
| Processor Speed | 1.80 GHz |
| Processor Type | Xeon |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Installed | 2 |
| Weight (Approximate) | 25.90 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 87.2 mm |
| Width | 447.2 mm |
| Depth | 795.5 mm |
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | U480F42EFCIAU |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Model | 480F |
| Product Name | Unity XT 480F SAN/NAS Storage System |
| Product Line | Unity XT |
| Brand Name | Dell EMC |
