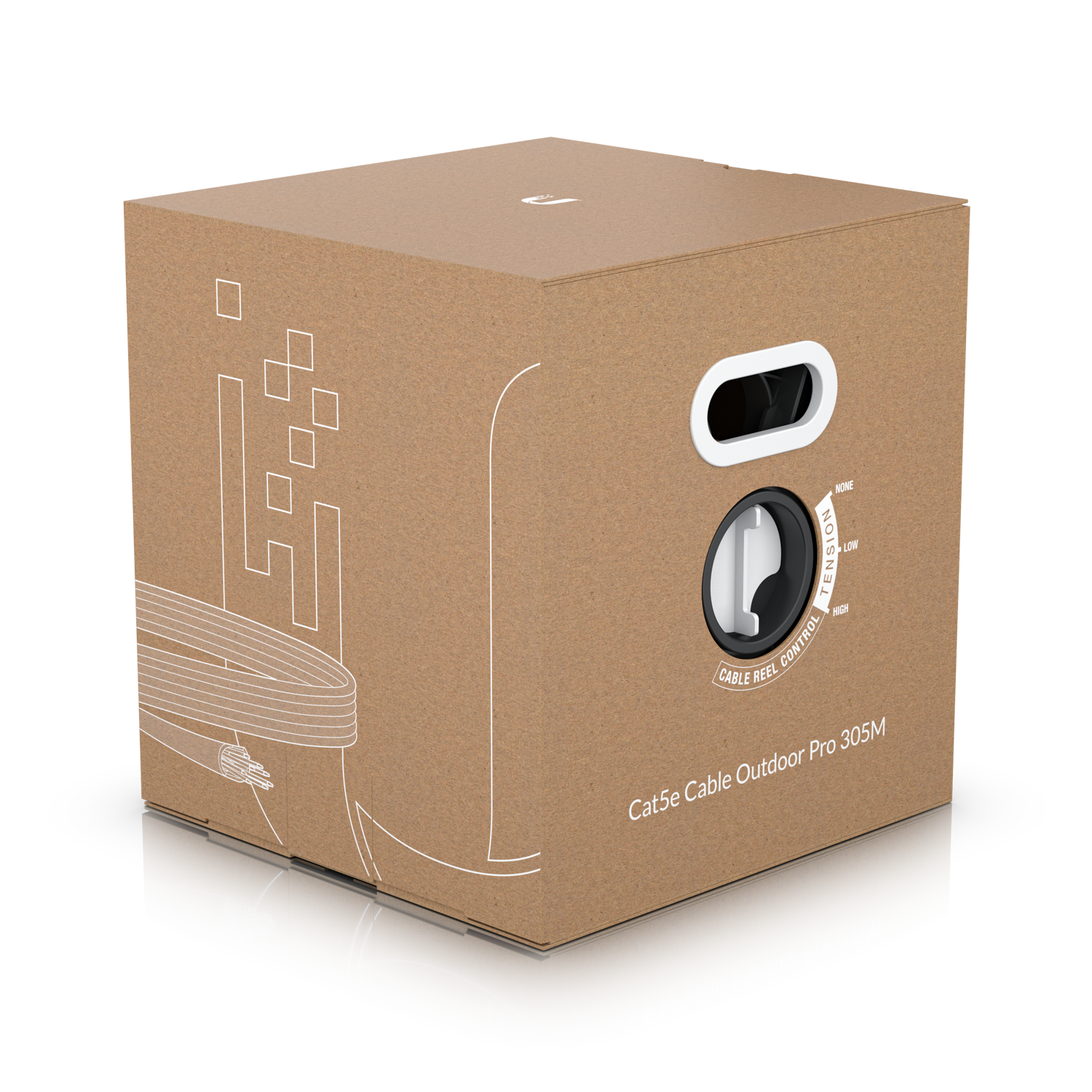

UACC-Cable-C5e-Outdoor-Pro-305M-W
Product Overview
| Specifications | |
|---|---|
| Box dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4") |
| Box weight | 12.6 kg (27.78 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 5e |
| Shielding type | STP |
| Flame rating | VW-1 (UL1581) |
| UV resistance | ASTM G 151/154 |
| Conductor wire gauge | 24 AWG |
| Conductor type | Solid bare copper |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket diameter | 6 mm (0.24") |
| Bend radius | Min. 24 mm (0.94") |
| Storage temperature | -30 to 75°C (-22 to 167°F) |
| Installation temperature | -20 to 60°C (-4 to 140°F) |
| Ambient operating temperature | -40 to 80°C (-40 to 176°F) |
| Anti-crosstalk divider | No |
| Ripcord | Yes |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
Technical Specifications
| Specifications | |
|---|---|
| Box dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4") |
| Box weight | 12.6 kg (27.78 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 5e |
| Shielding type | STP |
| Flame rating | VW-1 (UL1581) |
| UV resistance | ASTM G 151/154 |
| Conductor wire gauge | 24 AWG |
| Conductor type | Solid bare copper |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket diameter | 6 mm (0.24") |
| Bend radius | Min. 24 mm (0.94") |
| Storage temperature | -30 to 75°C (-22 to 167°F) |
| Installation temperature | -20 to 60°C (-4 to 140°F) |
| Ambient operating temperature | -40 to 80°C (-40 to 176°F) |
| Anti-crosstalk divider | No |
| Ripcord | Yes |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
