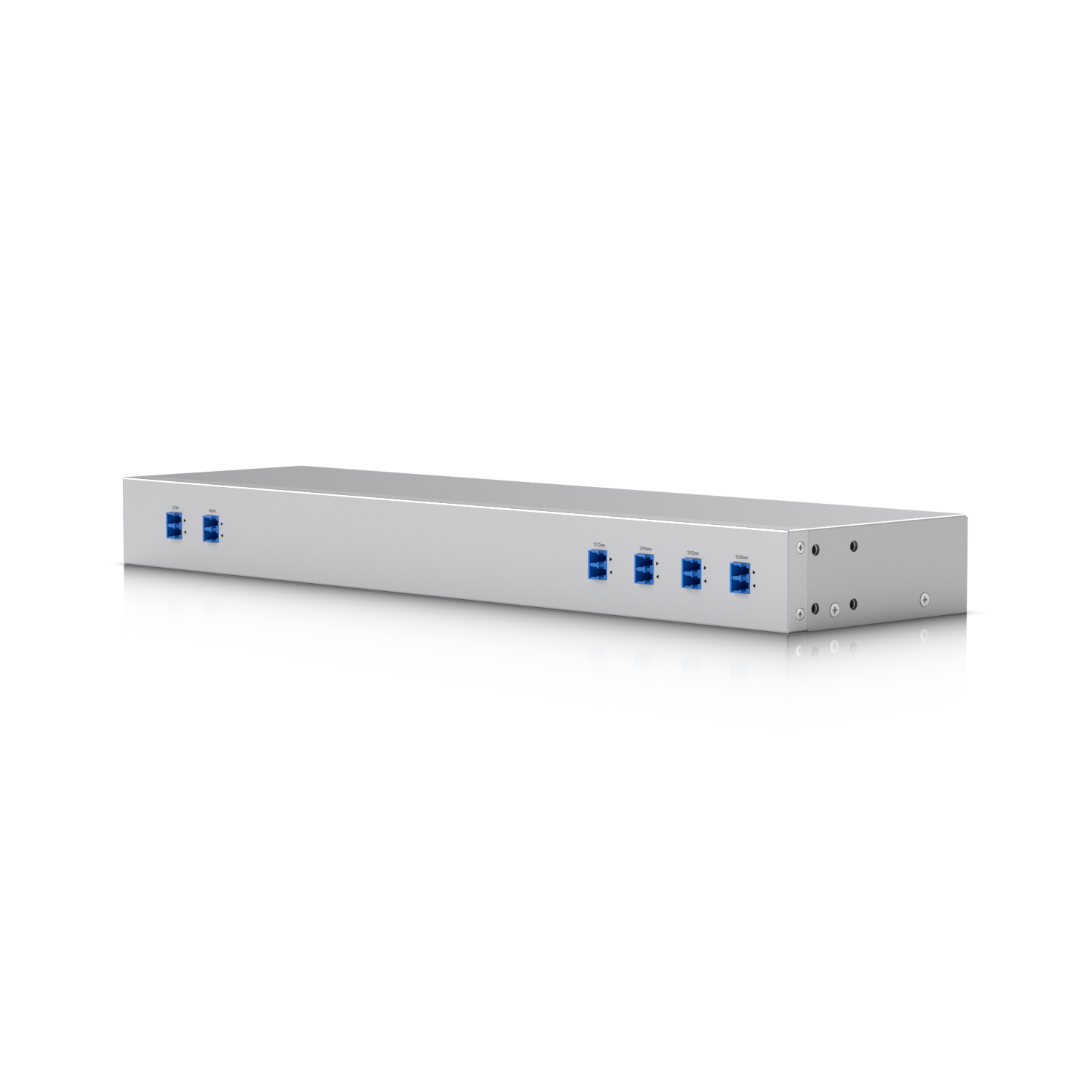

UACC-CWDM-4

Product Overview

Mechanical
Dimensions	442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7")
Weight	1.4 kg (3.2 lb)
Enclosure material	Metal
Hardware
Connector type	(1) COM (LC/UPC) (1) MON (LC/UPC) (1) 1270 to 1330 nm (LC/UPC)
Pigtail and connector type	0.9 mm white LC/UPC
Fiber type	SMF-28e
Fiber length	≥0.5 to 1 m
Channel count	4 CH Mux/Demux
Channel center wavelength	1270/1290/1310/1330 nm
Min. channel passband	±6.5 nm
Max. insertion loss	<1.5 dB
Isolation	Adjacent channel: Max. 30 dB Non-Adjacent channel: Min. 40 dB
Max. passband ripple	0.3 dB
Max. Polarization Dependent Loss	0.1 dB
Min. directivity	55 dB
Min. return loss	50 dB
Max. polarization mode dispersion	0.1 ps
Max. power handling	500 mW
Storage temperature	-40 to 90° C (-40 to 194° F)
Ambient operating temperature	-30 to 75° C (-22 to 167° F)

Mechanical
Dimensions	442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7")
Weight	1.4 kg (3.2 lb)
Enclosure material	Metal
Hardware
Connector type	(1) COM (LC/UPC) (1) MON (LC/UPC) (1) 1270 to 1330 nm (LC/UPC)
Pigtail and connector type	0.9 mm white LC/UPC
Fiber type	SMF-28e
Fiber length	≥0.5 to 1 m
Channel count	4 CH Mux/Demux
Channel center wavelength	1270/1290/1310/1330 nm
Min. channel passband	±6.5 nm
Max. insertion loss	<1.5 dB
Isolation	Adjacent channel: Max. 30 dB Non-Adjacent channel: Min. 40 dB
Max. passband ripple	0.3 dB
Max. Polarization Dependent Loss	0.1 dB
Min. directivity	55 dB
Min. return loss	50 dB
Max. polarization mode dispersion	0.1 ps
Max. power handling	500 mW
Storage temperature	-40 to 90° C (-40 to 194° F)
Ambient operating temperature	-30 to 75° C (-22 to 167° F)
