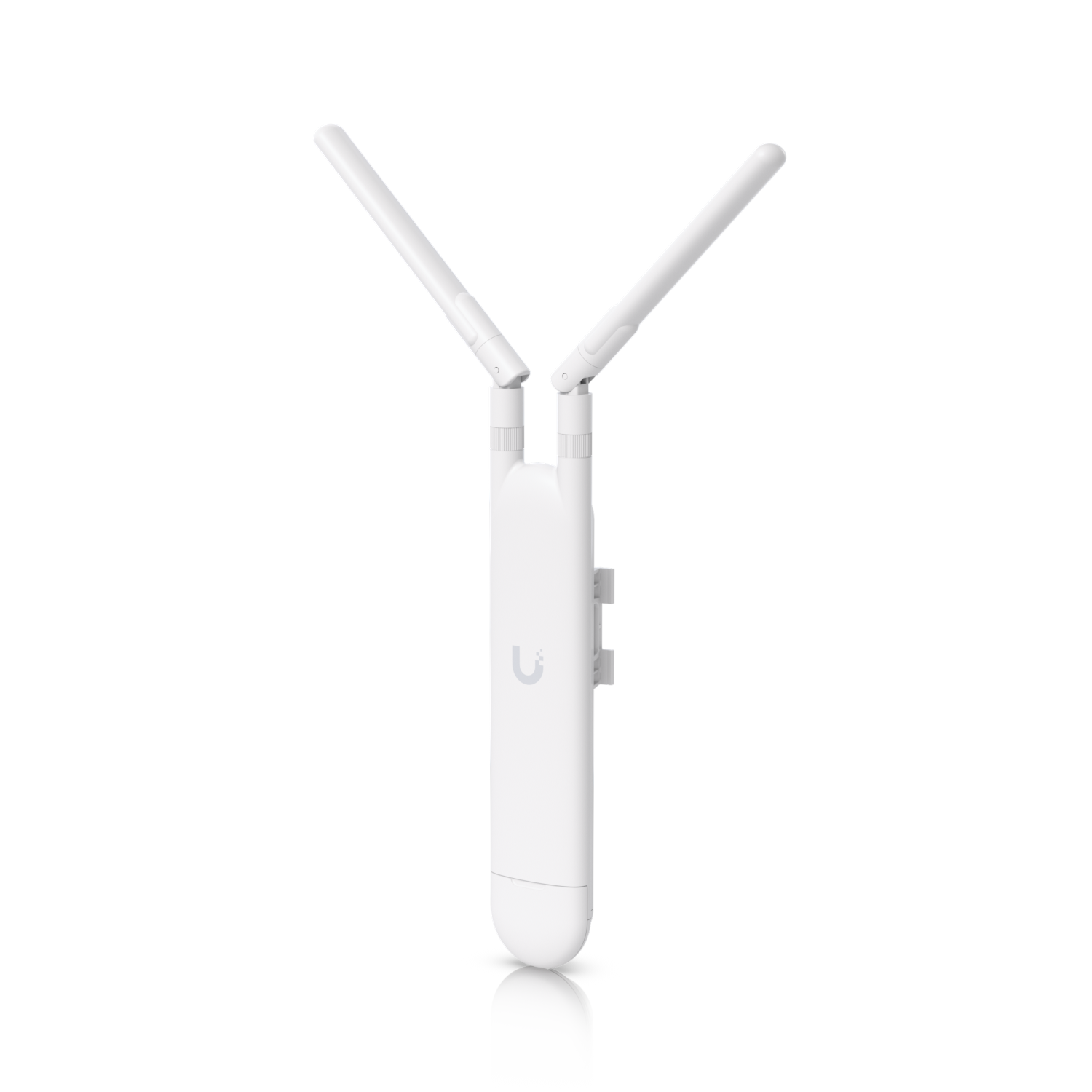

UAP-AC-M

Product Overview

Mechanical
Dimensions	353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight	152 g (5.4 oz)
Hardware
Networking interface	(1) GbE RJ45 port
Management interface	Ethernet Bluetooth
Power method	PoE Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply	Gigabit PoE adapter 24V, 0.5A* _{*5-packs do not come with PoE adapters.}
Supported voltage range	44—57V DC
Max. power consumption	8.5W
Max. TX power 2.4 GHz 5 GHz 6 GHz	20 dBm 20 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL MU-MIMO) 2 x 2 (DL MU-MIMO) –
Max. data rate 2.4 GHz 5 GHz 6 GHz	300 Mbps (BW40) 867 Mbps (BW80) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	3 dBi 4 dBi –
Button	Factory reset
Mounting	Wall, pole, fast-mount (Included)
Ambient operating temperature	-30 to 70° C (-22 to 158° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, UKCA
Software
WiFi standards	802.11a/b/g/n/ac
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN	802.1Q
BSSID	Up to 4 per radio
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Power save	Supported
WMM	Voice, video, best effort, and background
Concurrent clients	250+
Supported Data Rates (Mbps)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Mechanical
Dimensions	353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight	152 g (5.4 oz)
Hardware
Networking interface	(1) GbE RJ45 port
Management interface	Ethernet Bluetooth
Power method	PoE Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply	Gigabit PoE adapter 24V, 0.5A* _{*5-packs do not come with PoE adapters.}
Supported voltage range	44—57V DC
Max. power consumption	8.5W
Max. TX power 2.4 GHz 5 GHz 6 GHz	20 dBm 20 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL MU-MIMO) 2 x 2 (DL MU-MIMO) –
Max. data rate 2.4 GHz 5 GHz 6 GHz	300 Mbps (BW40) 867 Mbps (BW80) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	3 dBi 4 dBi –
Button	Factory reset
Mounting	Wall, pole, fast-mount (Included)
Ambient operating temperature	-30 to 70° C (-22 to 158° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, UKCA
Software
WiFi standards	802.11a/b/g/n/ac
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN	802.1Q
BSSID	Up to 4 per radio
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Power save	Supported
WMM	Voice, video, best effort, and background
Concurrent clients	250+
Supported Data Rates (Mbps)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Current Price

AUD 180.91
