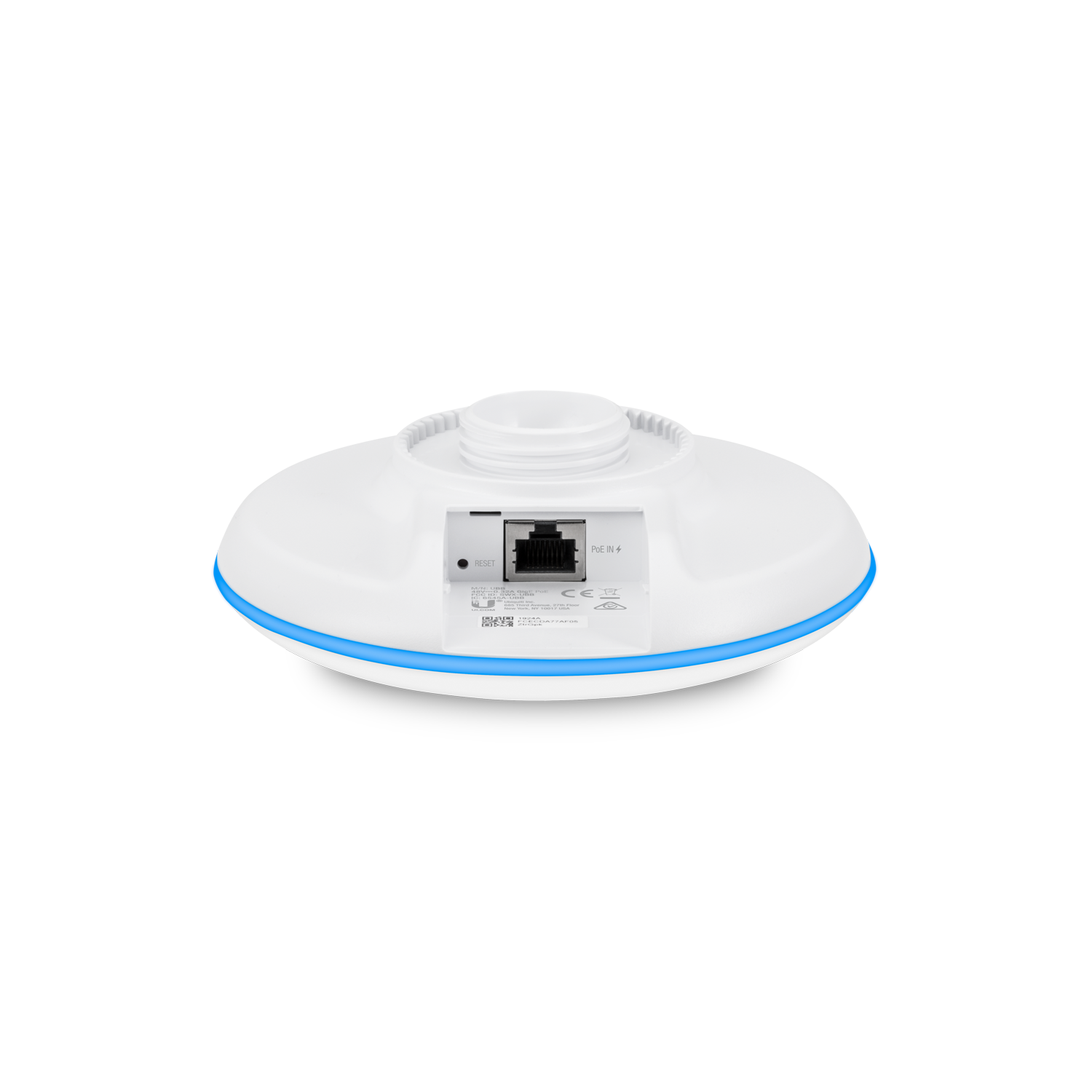

UBB
Product Overview
| Mechanical | |
|---|---|
| Dimensions | Ø140 x 90 mm (Ø5.5 x 3.5") |
| Weight | 376 g (13.3 oz) |
| Enclosure material | UV-resistant polycarbonate |
| Wind loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE Passive PoE, 48V |
| Power supply | UniFi PoE switch 48V, 0.32A Gigabit PoE adapter (Included) |
| Max. power consumption | 11W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | – 25 dBm – 32–36.5 dBm (60 GHz) |
| MIMO 2.4 GHz 5 GHz 6 GHz | – 2 x 2 – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | – 866.6 Mbps (BW80) – 1.7 Gbps (60 GHz) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 2 dBi (BLE) 10 dBi – 17.2 dBi (60 GHz) |
| 60 GHz elevation beamwidth | 30° |
| 60 GHz azimuthal coverage | ±60° |
| LEDs | R/G/B |
| Button | Factory-reset |
| Mounting | Pole (Included) Wall (Optional) |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 57,000 - 66,000 |
| US/CA | U-NII-1: 5150 - 5250 U-NII-3: 5725 - 5850 57,000 - 66,000 |
| Bluetooth (MHz) | |
| Worldwide | 2400 - 2483.5 |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø140 x 90 mm (Ø5.5 x 3.5") |
| Weight | 376 g (13.3 oz) |
| Enclosure material | UV-resistant polycarbonate |
| Wind loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE Passive PoE, 48V |
| Power supply | UniFi PoE switch 48V, 0.32A Gigabit PoE adapter (Included) |
| Max. power consumption | 11W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | – 25 dBm – 32–36.5 dBm (60 GHz) |
| MIMO 2.4 GHz 5 GHz 6 GHz | – 2 x 2 – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | – 866.6 Mbps (BW80) – 1.7 Gbps (60 GHz) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 2 dBi (BLE) 10 dBi – 17.2 dBi (60 GHz) |
| 60 GHz elevation beamwidth | 30° |
| 60 GHz azimuthal coverage | ±60° |
| LEDs | R/G/B |
| Button | Factory-reset |
| Mounting | Pole (Included) Wall (Optional) |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 57,000 - 66,000 |
| US/CA | U-NII-1: 5150 - 5250 U-NII-3: 5725 - 5850 57,000 - 66,000 |
| Bluetooth (MHz) | |
| Worldwide | 2400 - 2483.5 |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
Price Trend
Current Price
AUD 990.00
