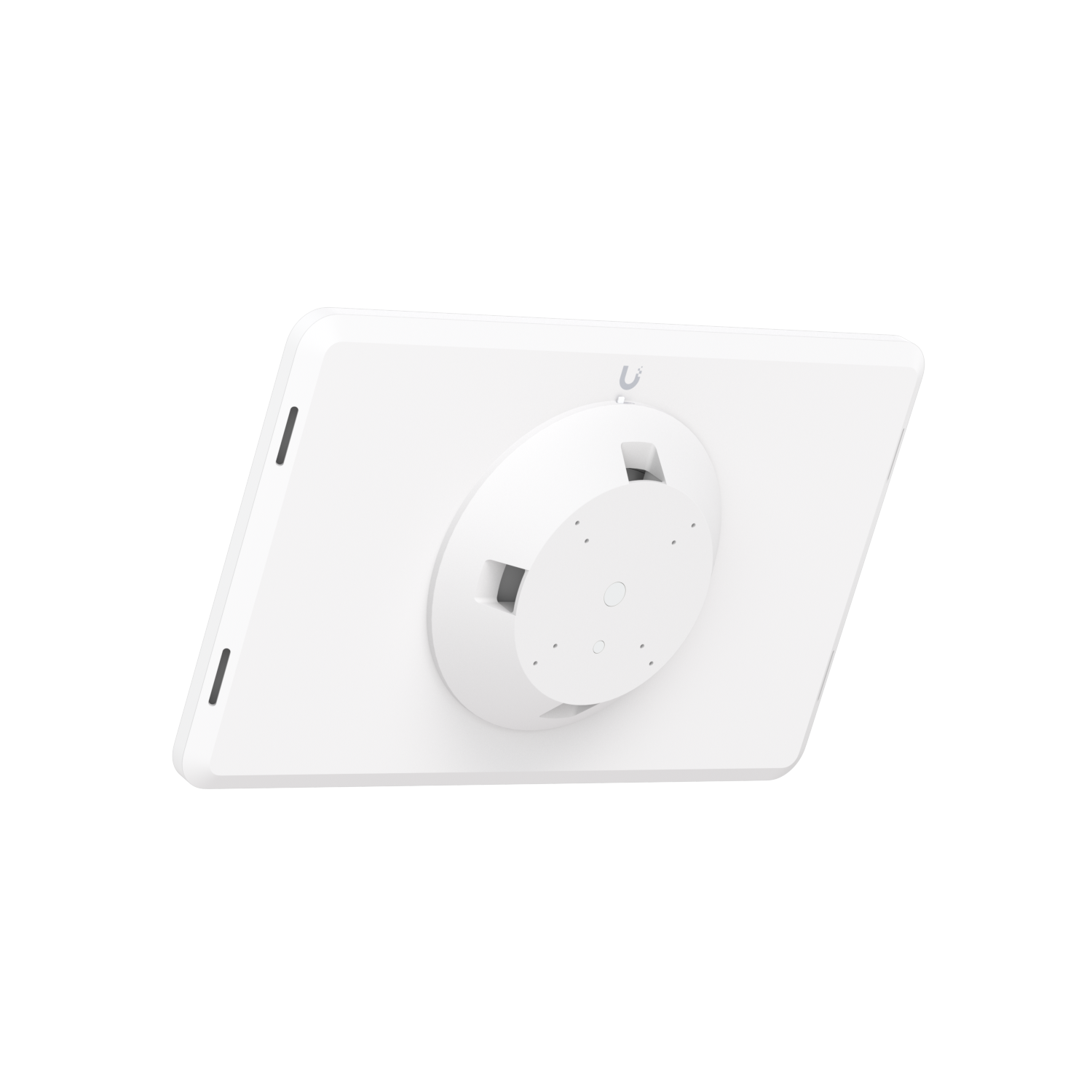

UC-Display
Product Overview
| Mechanical | |
|---|---|
| Dimensions | 538.3 x 330 x 37 mm (21.2 x 13 x 1.5") |
| Weight | 4.9 kg (10.8 lb) |
| Enclosure material | Plastic, aluminum |
| Mounting | VESA mount adapter (included) Table stand (optional) Surface mount (optional) Arm mount (optional) Flush mount (optional) |
| Hardware | |
| Display size | 546 mm (21.5") diagonall |
| Resolution | 1920 x 1080 FHD (16:9) |
| Display luminance | 250 nits (typical) |
| Touch screen technology | Capacitive multi-touch |
| Screen orientation | Portrait/landscape |
| Processor | Octa-core ARM® Cortex®-A53 at 2.2 GHz |
| Memory | Storage: 32 GB RAM: 3 GB |
| Power method | PoE++ |
| Power supply | UniFi PoE++ switch |
| Max. power consumption | 27W |
| Connectivity | (1) GbE RJ45 port (1) USB-C port (Reserved feature for future function update) Bluetooth® 4.2 |
| Button | Factory reset |
| Microphone | Yes |
| Speaker | Yes |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Connect web: Version 2.1.14 and later UniFi Connect iOS™ and Android™: Version 1.0.0 and later |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 538.3 x 330 x 37 mm (21.2 x 13 x 1.5") |
| Weight | 4.9 kg (10.8 lb) |
| Enclosure material | Plastic, aluminum |
| Mounting | VESA mount adapter (included) Table stand (optional) Surface mount (optional) Arm mount (optional) Flush mount (optional) |
| Hardware | |
| Display size | 546 mm (21.5") diagonall |
| Resolution | 1920 x 1080 FHD (16:9) |
| Display luminance | 250 nits (typical) |
| Touch screen technology | Capacitive multi-touch |
| Screen orientation | Portrait/landscape |
| Processor | Octa-core ARM® Cortex®-A53 at 2.2 GHz |
| Memory | Storage: 32 GB RAM: 3 GB |
| Power method | PoE++ |
| Power supply | UniFi PoE++ switch |
| Max. power consumption | 27W |
| Connectivity | (1) GbE RJ45 port (1) USB-C port (Reserved feature for future function update) Bluetooth® 4.2 |
| Button | Factory reset |
| Microphone | Yes |
| Speaker | Yes |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Connect web: Version 2.1.14 and later UniFi Connect iOS™ and Android™: Version 1.0.0 and later |
