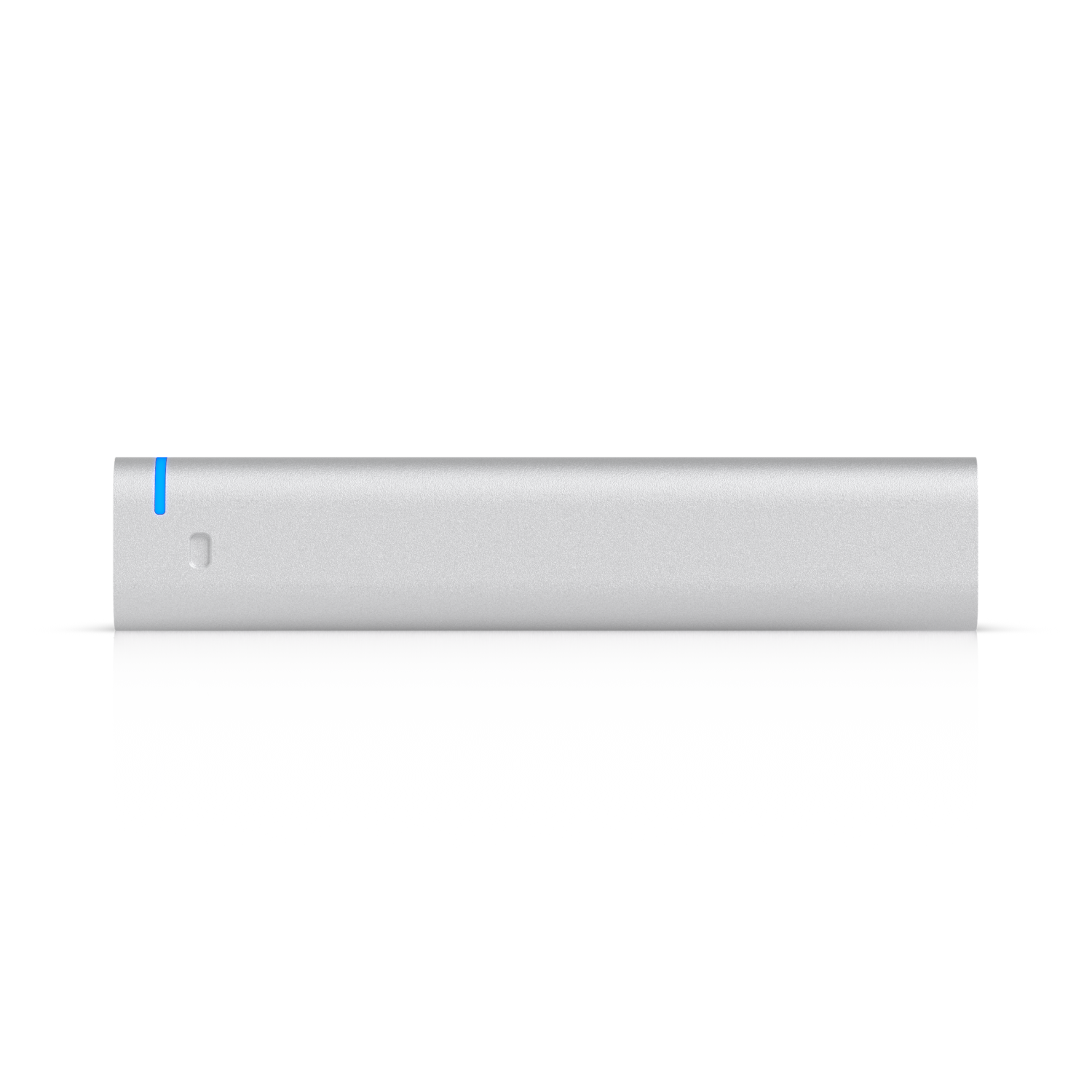

UCK-G2-PLUS
Product Overview
| Mechanical | |
|---|---|
| Dimensions | 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3") |
| Weight | 582 g (1.3 lb) |
| Enclosure material | Anodized aluminum |
| Hardware | |
| Processor | Octa-core Arm® Cortex®-A53 based chip |
| Management interface | Ethernet Bluetooth |
| Networking interface | (1) GbE RJ45 port |
| Memory | 32 GB eMMC 3 GB RAM |
| Hard drive capacity | 1 TB 2.5" SATA HDD (user-upgradeable*) *CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported. |
| Power method | PoE Quick charge 2.0/3.0 power adapter, 9V DC, 2A |
| Max. power consumption | 12.95W |
| Display | 1.42" gray-scale OLED |
| LEDs | (1) Power: white/blue |
| Buttons | (1) Power (1) Factory reset |
| Ambient operating temperature | 0 to 35° C (32 to 104° F) |
| Ambient operating humidity | 20 to 80% noncondensing |
| Certifications | FCC, CE, IC |
| Capacity | |
| HD cameras 2K cameras 4K cameras | 24 14 8 Assumes the UCK-G2-PLUS is dedicated to UniFi Protect only. If it’s also running UniFi Network, your maximum camera limit will be lower. |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3") |
| Weight | 582 g (1.3 lb) |
| Enclosure material | Anodized aluminum |
| Hardware | |
| Processor | Octa-core Arm® Cortex®-A53 based chip |
| Management interface | Ethernet Bluetooth |
| Networking interface | (1) GbE RJ45 port |
| Memory | 32 GB eMMC 3 GB RAM |
| Hard drive capacity | 1 TB 2.5" SATA HDD (user-upgradeable*) *CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported. |
| Power method | PoE Quick charge 2.0/3.0 power adapter, 9V DC, 2A |
| Max. power consumption | 12.95W |
| Display | 1.42" gray-scale OLED |
| LEDs | (1) Power: white/blue |
| Buttons | (1) Power (1) Factory reset |
| Ambient operating temperature | 0 to 35° C (32 to 104° F) |
| Ambient operating humidity | 20 to 80% noncondensing |
| Certifications | FCC, CE, IC |
| Capacity | |
| HD cameras 2K cameras 4K cameras | 24 14 8 Assumes the UCK-G2-PLUS is dedicated to UniFi Protect only. If it’s also running UniFi Network, your maximum camera limit will be lower. |
