Product Overview

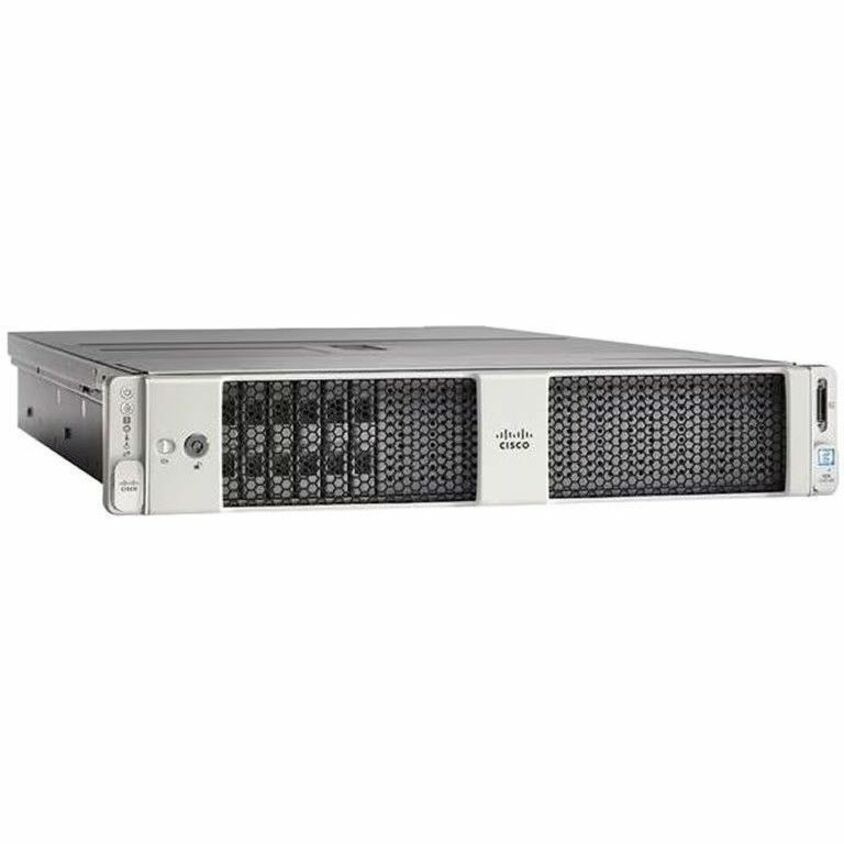

MSFT AzureStack AF CTO Node C240 M5SX w/ 40G QL
The UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, 3200 MHz DDR4 memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 10)
- 2 x 1.05 kW power supply unit (PSU) for your system's power requirements
- With 384 GB memory, users can run multiple programs simultaneously without losing performance
- 32.32 TB SSD provides ample storage room for all your critical data
Technical Specifications
Graphics Memory Capacity | 16 MB |
Chipset Manufacturer | Intel |
Chipset Model | C621 |
RAID Levels | 0, 1, 10 |
Controller Type | 12Gb/s SAS |
RAID Supported | Yes |
Solid State Drive Configuration | 8 x 3.8TB |
2 x 960GB | |
Total Solid State Drive Capacity | 32.32 TB |
Number of Solid State Drives | 10 |
Number of Network (RJ-45) Ports | 2 |
Network (RJ-45) | Yes |
Remote Management | Yes |
Total Number of USB Ports | 2 |
Number of USB 3.0 Ports | 2 |
Error Checking | ECC |
Standard Memory | 384 GB |
Memory Technology | DDR4 SDRAM |
Number of Occupied Memory Slots | 12 |
Intel Optane Memory Ready | Yes |
Memory Clock Speed | 2.67 GHz |
Product Type | Server |
Manufacturer Part Number | UCSMANS02A0T0V0 |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Name | UCS C240 M5 Server |
Product Series | C240 M5 |
Brand Name | Cisco |
Weight (Approximate) | 26.10 kg |
Form Factor | Rack |
Rack Height | 2U |
Height | 87.1 mm |
Width | 481.6 mm |
Depth | 773.2 mm |
Power Source | Power Supply |
Number of Power Supplies Supported | 2 |
Number of Power Supplies Installed | 2 |
Redundant Power Supply | Yes |
Hot Swappable Power Supply | Yes |
Maximum Power Supply Wattage | 1.05 kW |
"Number of Internal 2.5"" Bays" | 26 |
Number of Total Expansion Bays | 26 |
Total Number of Expansion Slots | 6.0 |
Hot Swappable Bays | Yes |
PCI Express x16 (Gen 3.x) Slots | 1 |
PCI Express x8 (Gen 3.x) Slots | 5 |
Number of SFF Bays | 26 |
Cache | 16.50 MB |
Processor Speed | 2.30 GHz |
Processor Type | Xeon Gold |
Processor Model | 5118 |
Processor Core | Dodeca-core (12 Core) |
Processor Manufacturer | Intel |
Number of Processors Supported | 2 |
Number of Processors Installed | 2 |
Processor Generation | 2nd Gen |
