UCS B200 M5 BLADE W/O CPU MEM HDD MEZ
UCS B200 M5 BLADE W/O CPU MEM HDD MEZ
Product Overview

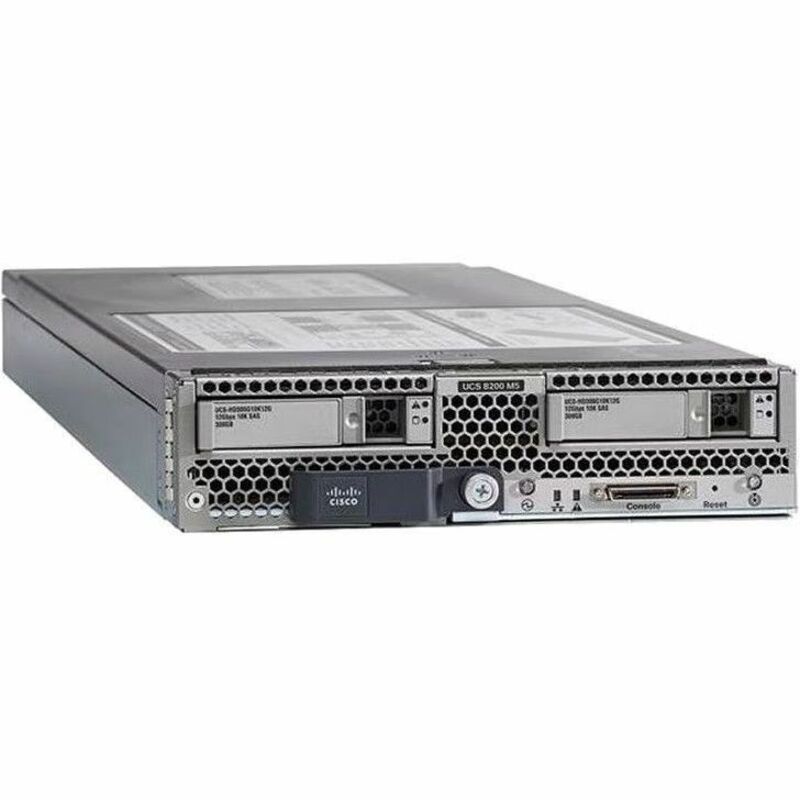

UCS B200 M5 Blade w/o CPU, mem, HDD, mezz REMANUFACTURED
Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
Technical Specifications
| Graphics Memory Capacity | 8 MB |
| Number of Total Expansion Bays | 2 |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSBB200M5RF |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS B200 M5 Barebone System |
| Product Series | B200 M5 |
| Brand Name | Cisco |
| Product Condition | Refurbished |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24.0 |
| Weight (Approximate) | 4.31 kg |
| Form Factor | Blade |
| Height | 49.5 mm |
| Width | 203.2 mm |
| Depth | 619.8 mm |
