UCS C220 M6 RACK W/O CPU. MEM. DRIVES. 1
UCS C220 M6 RACK W/O CPU. MEM. DRIVES. 1
Product Overview
UCS C220 M6 RACK W/O CPU. MEM. DRIVES. 1

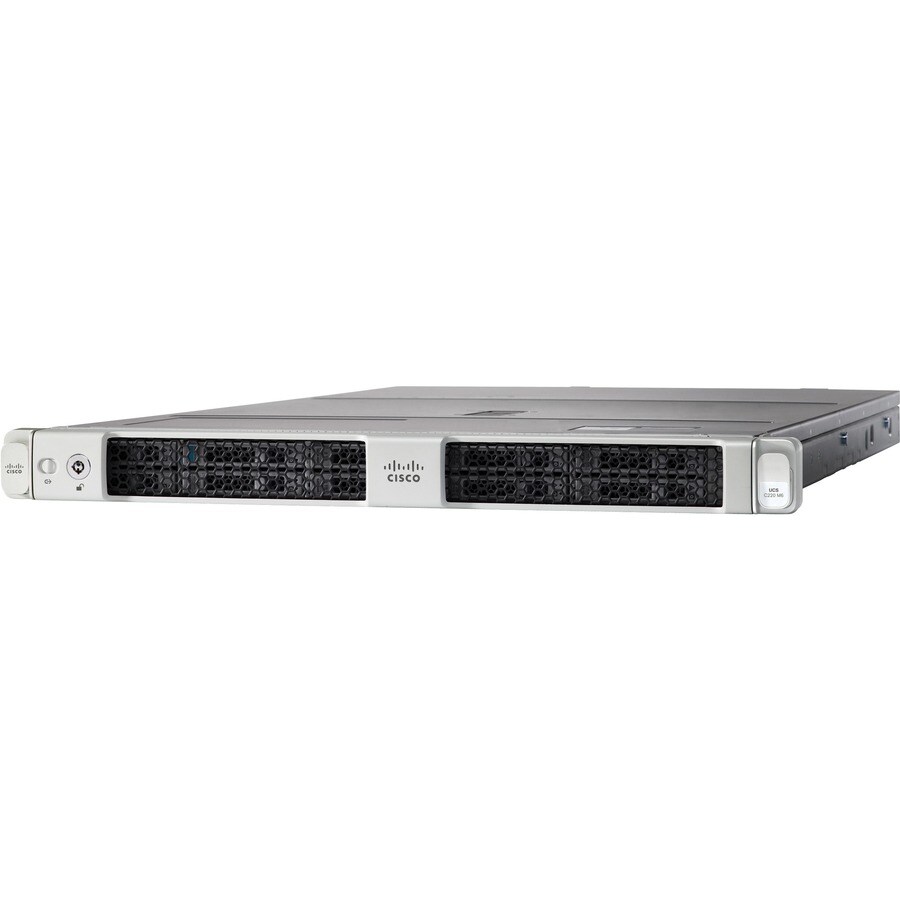

The UCS C220 M6 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 256 GB. The maximum memory capacity for 2 CPUs is listed here:- 8 TB (32 x 256 GB DDR4 DIMMs), or
- 12 TB (16 x 256 GB DDR4 DIMMs1 and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMEMs)).
Technical Specifications
Display & Graphics
| Graphics Memory Capacity | 8 MB |
I/O Expansions
| Number of Total Expansion Bays | 10 |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Storage
| Supported Storage Drive Interfaces | Serial ATA |
| SAS-3 |
Controllers
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
General Information
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C220-M6S |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C220 M6 Barebone System |
| Product Series | C220 M6 |
| Brand Name | Cisco |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
Processor
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
Memory
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32.0 |
Physical Characteristics
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 429.3 mm |
| Depth | 762 mm |
Price Trend
Current Price
AUD 13,601.21
