Product Overview

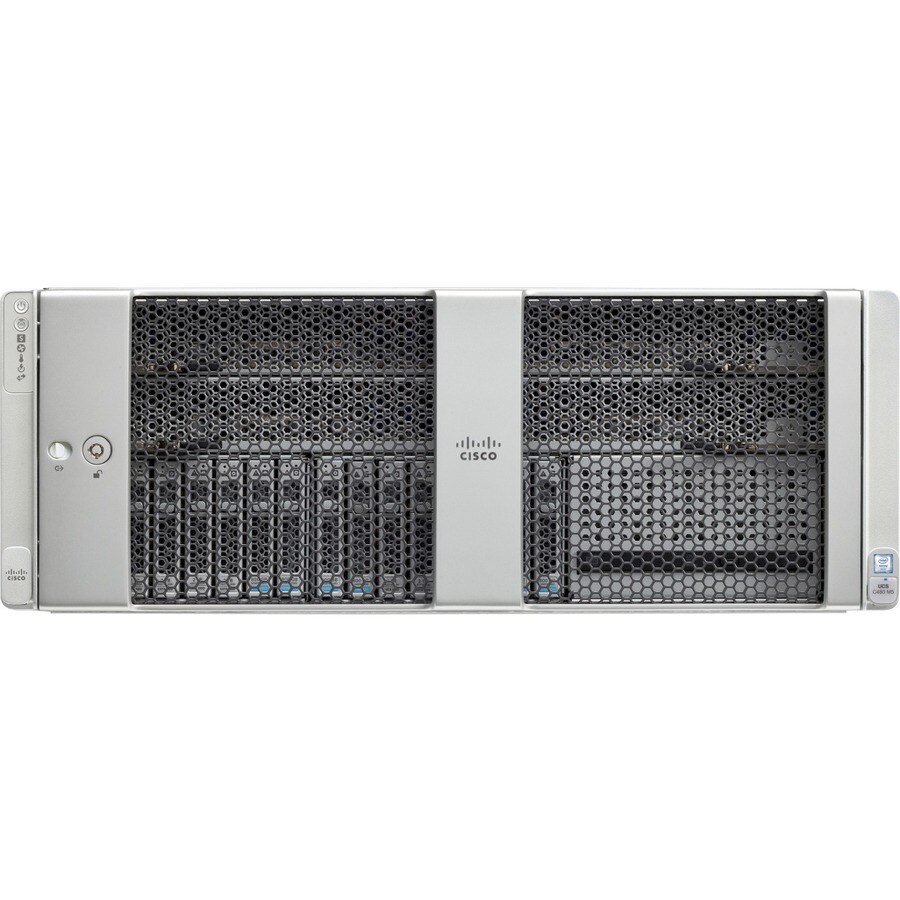

UCS C480 M5 Std base chassis w/o CPU, me
The Cisco UCS C480 M5 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel® Xeon® processor scalable family CPUs, with up to 6 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 48 slots, and up to 32 small form factor (SFF), hot-swappable2 SAS/SATA/PCIe NVMe disk drives.12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
Technical Specifications
Display & Graphics
| Graphics Memory Capacity | 256 MB |
Miscellaneous
| Package Contents |
|
Power Description
| Maximum Power Supply Wattage | 1.60 kW |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
Controllers
| Controller Type | 12Gb/s SAS |
| Serial ATA |
Interfaces/Ports
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 3 |
I/O Expansions
| Number of PCI Express x8 Slots | 6 |
| Number of PCI Express x16 Slots | 6 |
| Total Number of Expansion Slots | 12.0 |
Physical Characteristics
| Weight (Approximate) | 66.22 kg |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 175.3 mm |
| Width | 482.6 mm |
| Depth | 830.6 mm |
Memory
| Maximum Memory Supported | 6 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 48.0 |
Processor
| Processor Supported | Xeon Bronze |
| Xeon Gold | |
| Xeon Silver | |
| Xeon Platinum | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 4 |
General Information
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C480-M5 |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C480 M5 Barebone System |
| Product Series | C480 M5 |
| Brand Name | Cisco |
Price Trend
Current Price
AUD 40,082.16
