UCS X210c M7 Compute Node 2S w/o CPU Mem
UCS X210c M7 Compute Node 2S w/o CPU Mem
Product Overview
UCS X210c M7 Compute Node 2S w/o CPU Mem Drv Mezz
The Cisco UCS X-Series Modular System simplifies your data center, adapting to the unpredictable needs of modern applications while also providing for traditional scale-out and enterprise workloads. It reduces the number of server types to maintain, helping to improve operational efficiency and agility as it helps reduce complexity. Powered by the Cisco Intersight™ cloud operations platform, it shifts your thinking from administrative details to business outcomes with hybrid cloud infrastructure that is assembled from the cloud, shaped to your workloads, and continuously optimized.

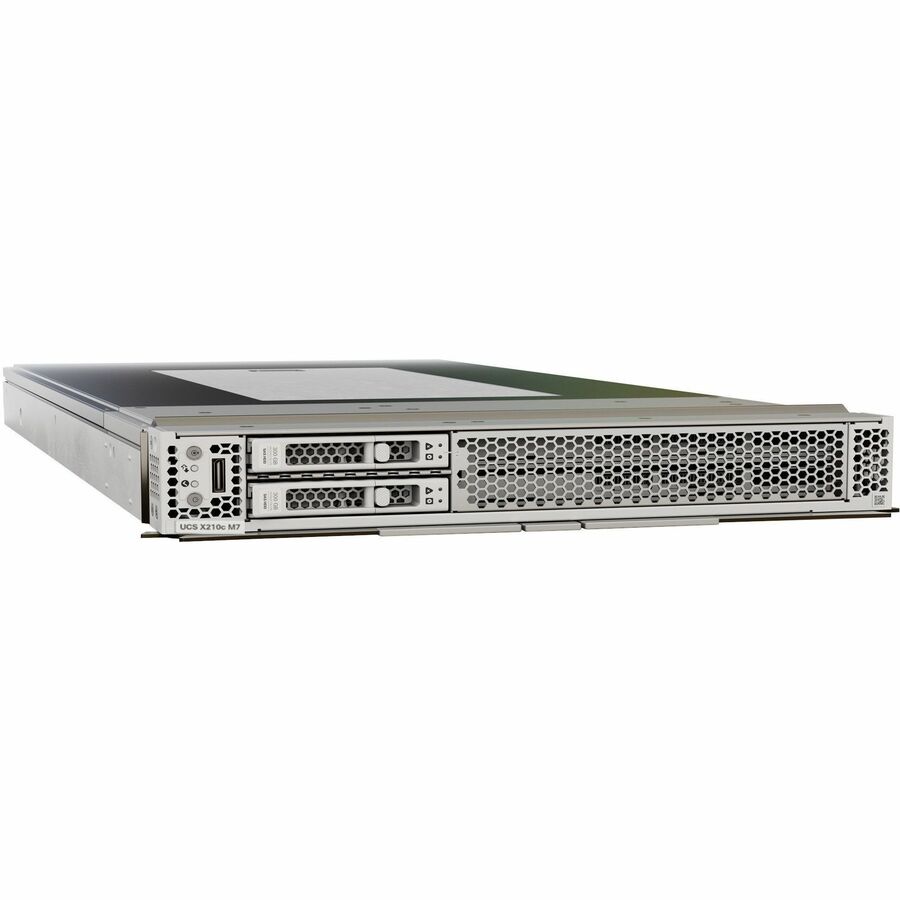

The Cisco UCS X210c M7 Compute Node is the computing device to integrate into the Cisco UCS X-Series Modular System. Up to eight compute nodes can reside in the 7-Rack-Unit (7RU) Cisco UCS X9508 Chassis, offering one of the highest densities of compute, IO, and storage per rack unit in the industry.
Technical Specifications
Ethernet Technology | Ethernet |
Chipset Manufacturer | Intel |
Chipset Model | C741 |
Supported Storage Drive Interfaces | Serial ATA |
SAS |
Graphics Controller Manufacturer | Matrox |
Graphics Controller Model | G200e |
Graphics Memory Capacity | 16 MB |
Number of Total Expansion Bays | 6 |
"Number of 2.5"" Bays" | 6 |
Number of M.2 Interfaces | 2 |
Controller Type | NVMe |
Serial ATA | |
Serial Attached SCSI (SAS) | |
RAID Supported | Yes |
Product Type | Barebone System |
Manufacturer Part Number | UCSX-210C-M7-U |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Name | UCS X210c M7 Barebone System |
Product Series | X210c M7 |
Brand Name | Cisco |
Weight (Approximate) | 11.39 kg |
Height | 45.7 mm |
Width | 286.5 mm |
Depth | 602 mm |
Maximum Memory Supported | 8 TB |
Memory Technology | DDR5 SDRAM |
Memory Standard | DDR5-5600/PC5-44800 |
Intel Optane Memory Ready | Yes |
Total Number of Memory Slots | 32 |
Operating System Supported | Windows Server 2022 Datacenter |
Red Hat Enterprise Linux | |
Windows Server 2019 Datacenter | |
Windows Server 2019 Standard | |
SuSE Linux Enterprise Server | |
Windows Server 2022 Standard |
Processor Supported | Xeon Silver |
Xeon Bronze | |
Xeon Gold | |
Xeon Platinum | |
64-bit Processing | Yes |
Number of Processors Supported | 2 |
