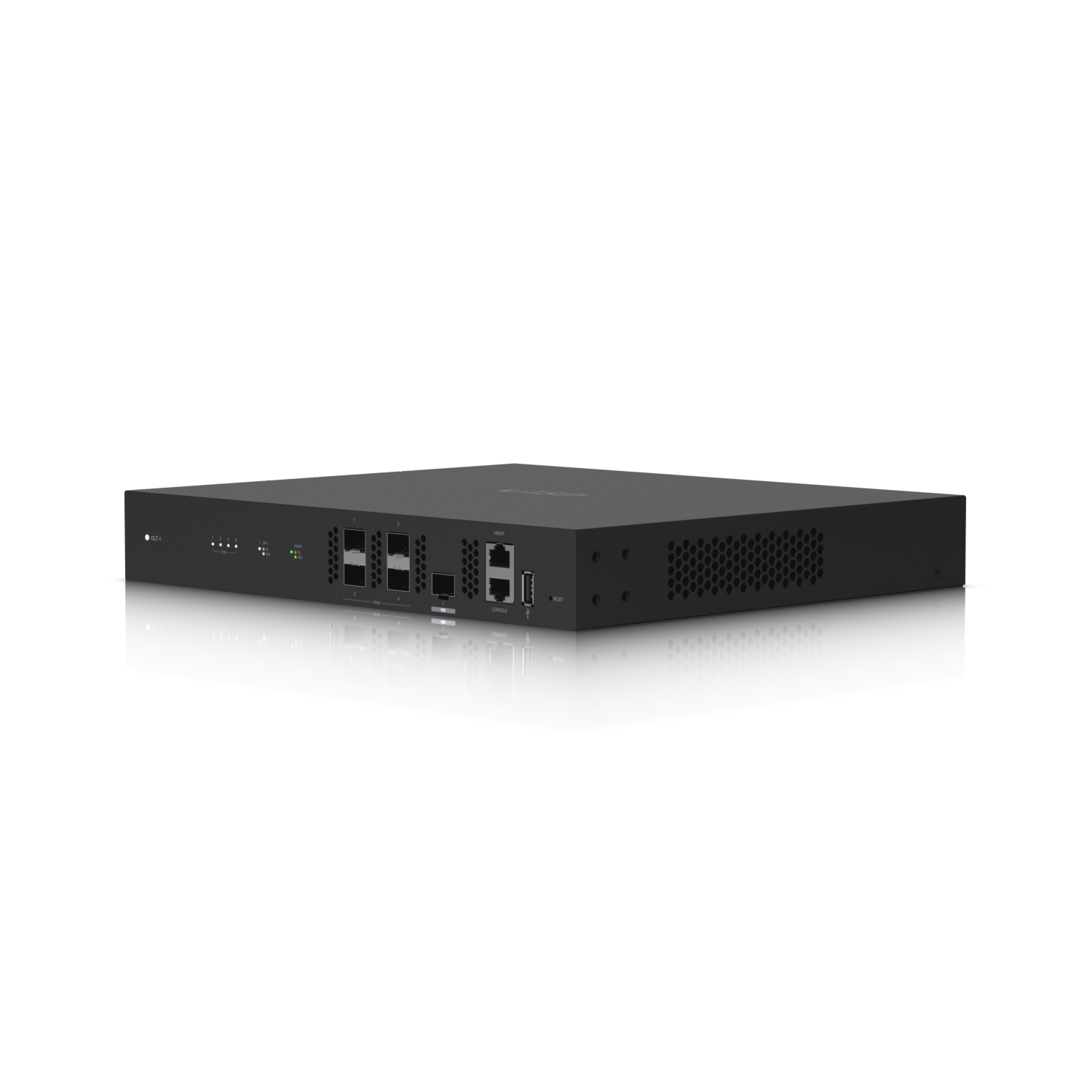

UF-OLT-4
Product Overview
| Mechanical | |
|---|---|
| Dimensions | 299.8 x 289 x 42.5 mm (11.8 x 11.4 x 1.7") |
| Weight | Without mounting brackets: 1.9 kg (4.3 lb) With mount brackets: 2.1 kg (4.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (4) GPON OLT SFP ports (1) 10 Gbps SFP+ port |
| Management interface | (1) Ethernet Out-of-Band (1) RJ45 Serial Console port |
| Power method | Universal input, 100—240V AC, 50/60 Hz / 25V DC |
| Power supply | AC/DC, internal, 56V DC |
| Supported voltage range | 100—240V AC / 16–25V DC |
| Max. power consumption | 35W (Excluding SFP modules) |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Power | (1) Blue/white Blinking blue: reset to default Steady blue: system is booting Steady white: service is ready |
| GPON OLT SFP | (4) White Steady/blinking white: link/activity |
| SFP+ | (1) White/gren White:10G Green: 1G Steady on after link is up; blinking while active |
| Ethernet | (1) Green Green: 1G Steady on after link is up; blinking while active |
| Software | |
| Mode | OLT GPON Core and Layer 2 Ethernet switch |
| VLAN | 4062 VLANs supported |
| Advanced QoS | Support 8 priority queues per user port and traffic classification |
| Concurrent clients | 512 ONUs/ONTs registered |
| Ubiquiti specific features | UISP Mobile App |
| Fiber | |
| Operating wavelength TX RX | 1490 nm 1310 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate Downstream Upstream | 2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 299.8 x 289 x 42.5 mm (11.8 x 11.4 x 1.7") |
| Weight | Without mounting brackets: 1.9 kg (4.3 lb) With mount brackets: 2.1 kg (4.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (4) GPON OLT SFP ports (1) 10 Gbps SFP+ port |
| Management interface | (1) Ethernet Out-of-Band (1) RJ45 Serial Console port |
| Power method | Universal input, 100—240V AC, 50/60 Hz / 25V DC |
| Power supply | AC/DC, internal, 56V DC |
| Supported voltage range | 100—240V AC / 16–25V DC |
| Max. power consumption | 35W (Excluding SFP modules) |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Power | (1) Blue/white Blinking blue: reset to default Steady blue: system is booting Steady white: service is ready |
| GPON OLT SFP | (4) White Steady/blinking white: link/activity |
| SFP+ | (1) White/gren White:10G Green: 1G Steady on after link is up; blinking while active |
| Ethernet | (1) Green Green: 1G Steady on after link is up; blinking while active |
| Software | |
| Mode | OLT GPON Core and Layer 2 Ethernet switch |
| VLAN | 4062 VLANs supported |
| Advanced QoS | Support 8 priority queues per user port and traffic classification |
| Concurrent clients | 512 ONUs/ONTs registered |
| Ubiquiti specific features | UISP Mobile App |
| Fiber | |
| Operating wavelength TX RX | 1490 nm 1310 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate Downstream Upstream | 2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
