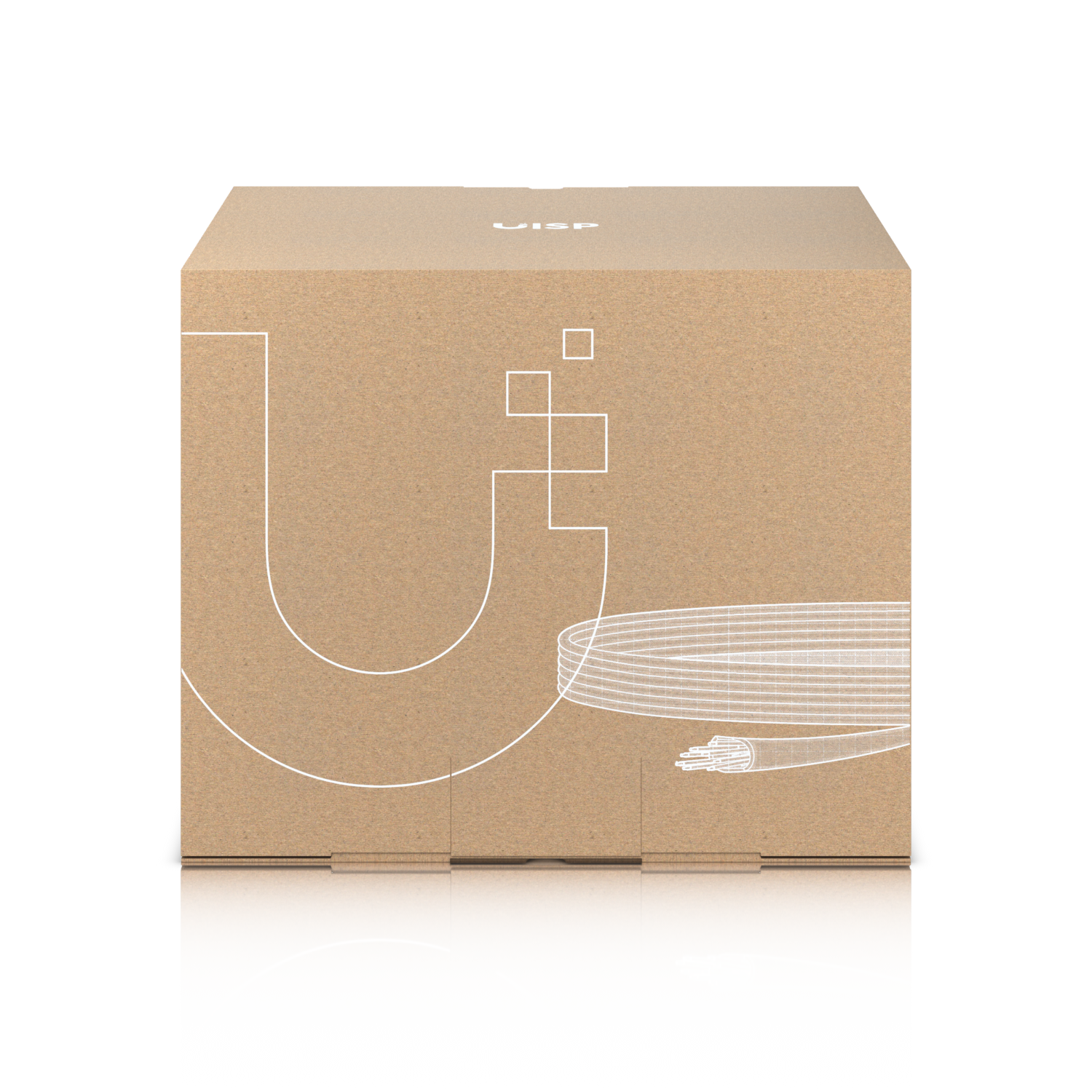

UISP-Cable-Carrier
Product Overview
| Mechanical | |
|---|---|
| Box dimensions | 330 x 425 x 340 mm (13 x 16.7 x 13.4") |
| Box weight | 16 kg (35.3 lb) |
| Cable lenght | 305 m (1,000 ft) |
| Cable color | Black |
| Cable type | CAT5e, shielded |
| UV resistance | ASTM G 151/154 |
| Ethernet support | Up to 1 Gbps |
| Conductor wire gauge | 24 AWG |
| Conductor | Solid bare copper |
| Conductor diameter | 0.500 ± 0.005 mm |
| Insulation type | Solid polyethylene |
| Insulation thickness | Avg. 0.295 mm Min. 0.29 mm |
| Insulation diameter | 1.16 ± 0.02 mm |
| Separation (Polyester wrapping) | Thick: 0.025 mm Extent: 20 mm |
| Anti-crosstalk divider | LDPE: 4.2*0.3 mm |
| Cable shield (Aluminum foil) | Thick: 0.060 mm Extent: 20 mm |
| ESD drain wire | 0.4 TC |
| Rip cord | Yes |
| Secondary cable shield (Braid) | 16*8*0.16AA Density: 95% |
| Jacket material | Polyethylene |
| Jacket thickness | Avg. 0.52 mm Min. 0.46 mm |
| Jacket outer diameter | 6.8 ± 0.30 mm |
| Jacket color | Black |
| Storage temperature | -30 to 75° C (-22 to 167° F) |
| Installation temperature | -20 to 60° C (-4 to 140° F) |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
Technical Specifications
| Mechanical | |
|---|---|
| Box dimensions | 330 x 425 x 340 mm (13 x 16.7 x 13.4") |
| Box weight | 16 kg (35.3 lb) |
| Cable lenght | 305 m (1,000 ft) |
| Cable color | Black |
| Cable type | CAT5e, shielded |
| UV resistance | ASTM G 151/154 |
| Ethernet support | Up to 1 Gbps |
| Conductor wire gauge | 24 AWG |
| Conductor | Solid bare copper |
| Conductor diameter | 0.500 ± 0.005 mm |
| Insulation type | Solid polyethylene |
| Insulation thickness | Avg. 0.295 mm Min. 0.29 mm |
| Insulation diameter | 1.16 ± 0.02 mm |
| Separation (Polyester wrapping) | Thick: 0.025 mm Extent: 20 mm |
| Anti-crosstalk divider | LDPE: 4.2*0.3 mm |
| Cable shield (Aluminum foil) | Thick: 0.060 mm Extent: 20 mm |
| ESD drain wire | 0.4 TC |
| Rip cord | Yes |
| Secondary cable shield (Braid) | 16*8*0.16AA Density: 95% |
| Jacket material | Polyethylene |
| Jacket thickness | Avg. 0.52 mm Min. 0.46 mm |
| Jacket outer diameter | 6.8 ± 0.30 mm |
| Jacket color | Black |
| Storage temperature | -30 to 75° C (-22 to 167° F) |
| Installation temperature | -20 to 60° C (-4 to 140° F) |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
