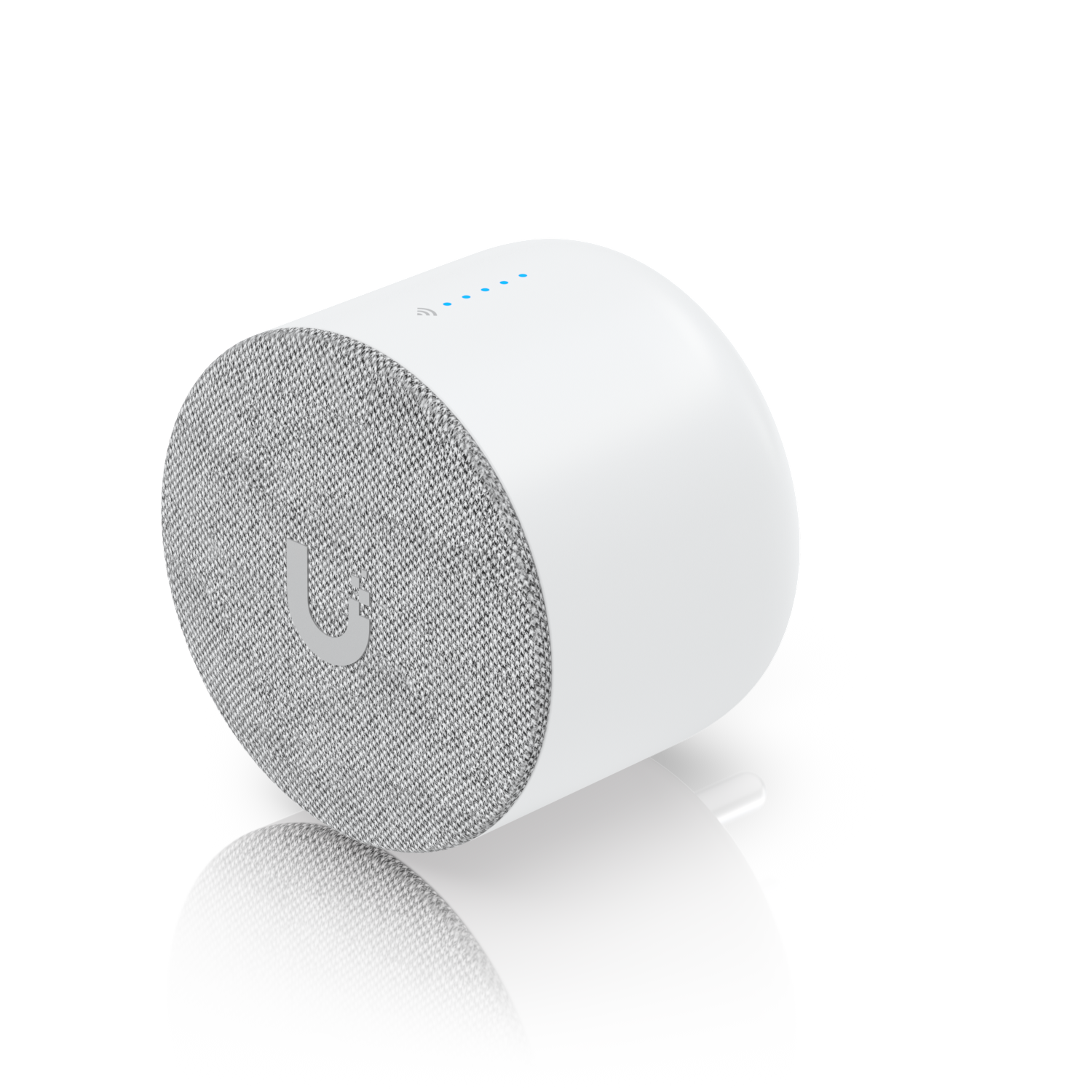

UP-Chime
Product Overview
| Mechanical | |
|---|---|
| Dimensions | US: Ø62 x 50.6 mm (Ø2.4 x 2") EU: Ø62 x 68.3 mm (Ø2.4 x 2.7") (Without prong) |
| Weight | US: 127 g (4.5 oz) EU: 135 g (4.8 oz) |
| Enclosure material | Polycarbonate, fabric |
| System | |
| Networking interface | WiFi 802.11 b/g/n |
| Power method | AC |
| Supported voltage range | 100-240V, 50/60 Hz |
| Max. power consumption | 3.7W |
| Antenna gain | 2 dBi |
| ESD/EMP protection | Air: ± 16kV, contact: ± 8kV |
| LEDs | (5) White |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Speaker | Yes |
| Buzzer | Yes |
| Software | |
| Web application | UniFi Protect: Version 2.0 and later |
| Mobile app | UniFi Protect iOS™: Version 1.6.2 and later UniFi Protect Android™: Version 1.6.0 and later |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | US: Ø62 x 50.6 mm (Ø2.4 x 2") EU: Ø62 x 68.3 mm (Ø2.4 x 2.7") (Without prong) |
| Weight | US: 127 g (4.5 oz) EU: 135 g (4.8 oz) |
| Enclosure material | Polycarbonate, fabric |
| System | |
| Networking interface | WiFi 802.11 b/g/n |
| Power method | AC |
| Supported voltage range | 100-240V, 50/60 Hz |
| Max. power consumption | 3.7W |
| Antenna gain | 2 dBi |
| ESD/EMP protection | Air: ± 16kV, contact: ± 8kV |
| LEDs | (5) White |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Speaker | Yes |
| Buzzer | Yes |
| Software | |
| Web application | UniFi Protect: Version 2.0 and later |
| Mobile app | UniFi Protect iOS™: Version 1.6.2 and later UniFi Protect Android™: Version 1.6.0 and later |
