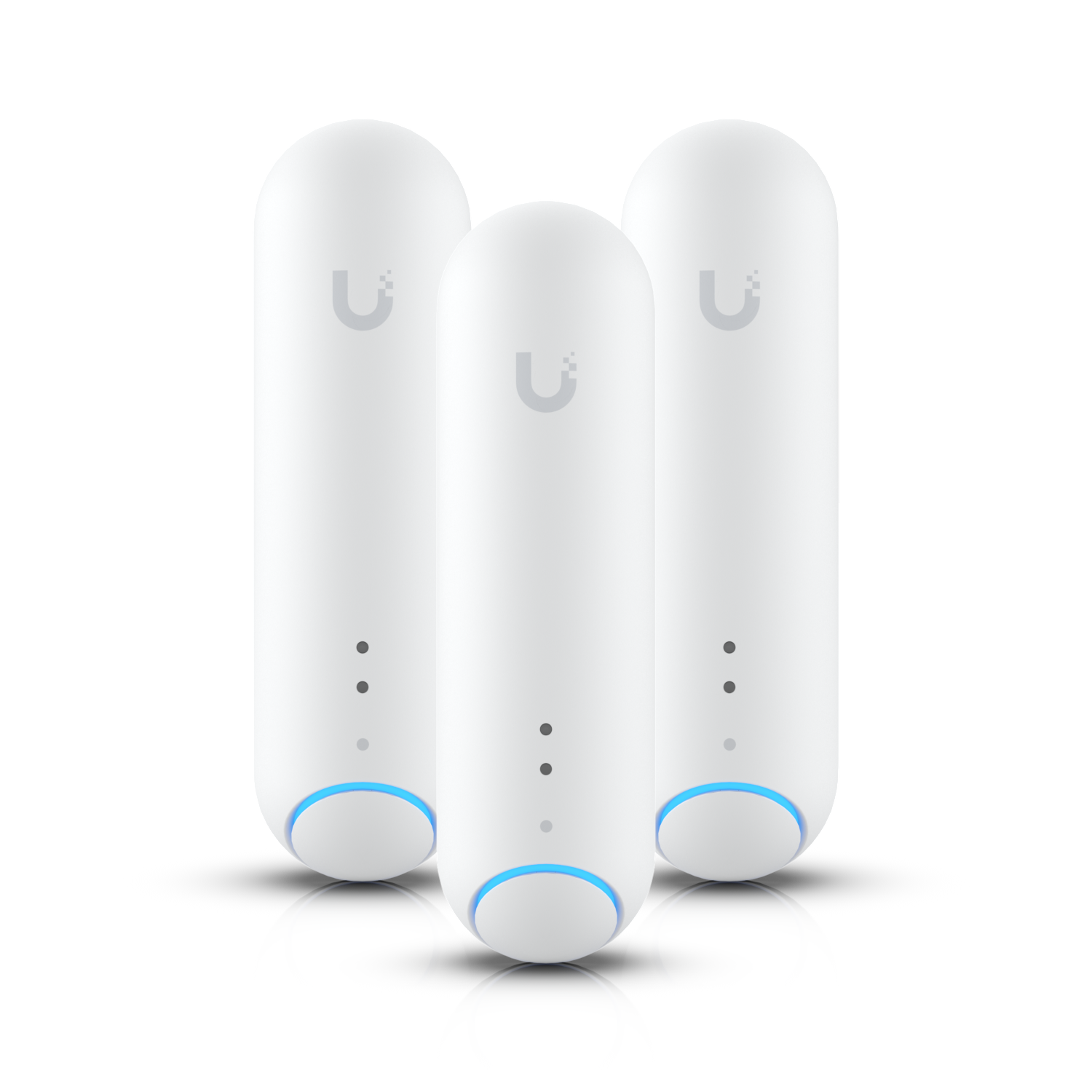

UP-Sense
Product Overview
| Mechanical | |
|---|---|
| Dimensions | Ø24 x 83.5 mm (Ø0.9 x 3.3") |
| Weight | 50.2 g (1.8 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Flat wall mount: polycarbonate, adhesive Corner mount: polycarbonate, adhesive |
| Additional gear | Magnet (1) Water sensor adapter (Only available in the 3-pack.) |
| Hardware | |
| Networking interface | Bluetooth 5.0, BLE |
| Max. TX power | 5 dBm |
| Max. power consumption | 77mW |
| Power method | Lithium battery CR123A |
| Sensor features | Motion sensor (5 m/16 ft max. range) Magnetic entry sensor for door or window open/close Accelerometer for garage door open/close Temperature sensor Humidity sensor Ambient light sensor Alarm sound sensor Water sensor for detecting leaks and floods (requires water sensor adapter accessory, only available in 3-pack) BLE connectivity from access point in indoor setting (recommended range 15 m/49 ft, performance will vary based on environment) |
| Antenna | 2.4GHz |
| Antenna gain | 0.5 dBi |
| LEDs | R/B/W |
| Button | Factory reset |
| Ambient operating temperature | 0 to 45° C (32 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø24 x 83.5 mm (Ø0.9 x 3.3") |
| Weight | 50.2 g (1.8 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Flat wall mount: polycarbonate, adhesive Corner mount: polycarbonate, adhesive |
| Additional gear | Magnet (1) Water sensor adapter (Only available in the 3-pack.) |
| Hardware | |
| Networking interface | Bluetooth 5.0, BLE |
| Max. TX power | 5 dBm |
| Max. power consumption | 77mW |
| Power method | Lithium battery CR123A |
| Sensor features | Motion sensor (5 m/16 ft max. range) Magnetic entry sensor for door or window open/close Accelerometer for garage door open/close Temperature sensor Humidity sensor Ambient light sensor Alarm sound sensor Water sensor for detecting leaks and floods (requires water sensor adapter accessory, only available in 3-pack) BLE connectivity from access point in indoor setting (recommended range 15 m/49 ft, performance will vary based on environment) |
| Antenna | 2.4GHz |
| Antenna gain | 0.5 dBi |
| LEDs | R/B/W |
| Button | Factory reset |
| Ambient operating temperature | 0 to 45° C (32 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
