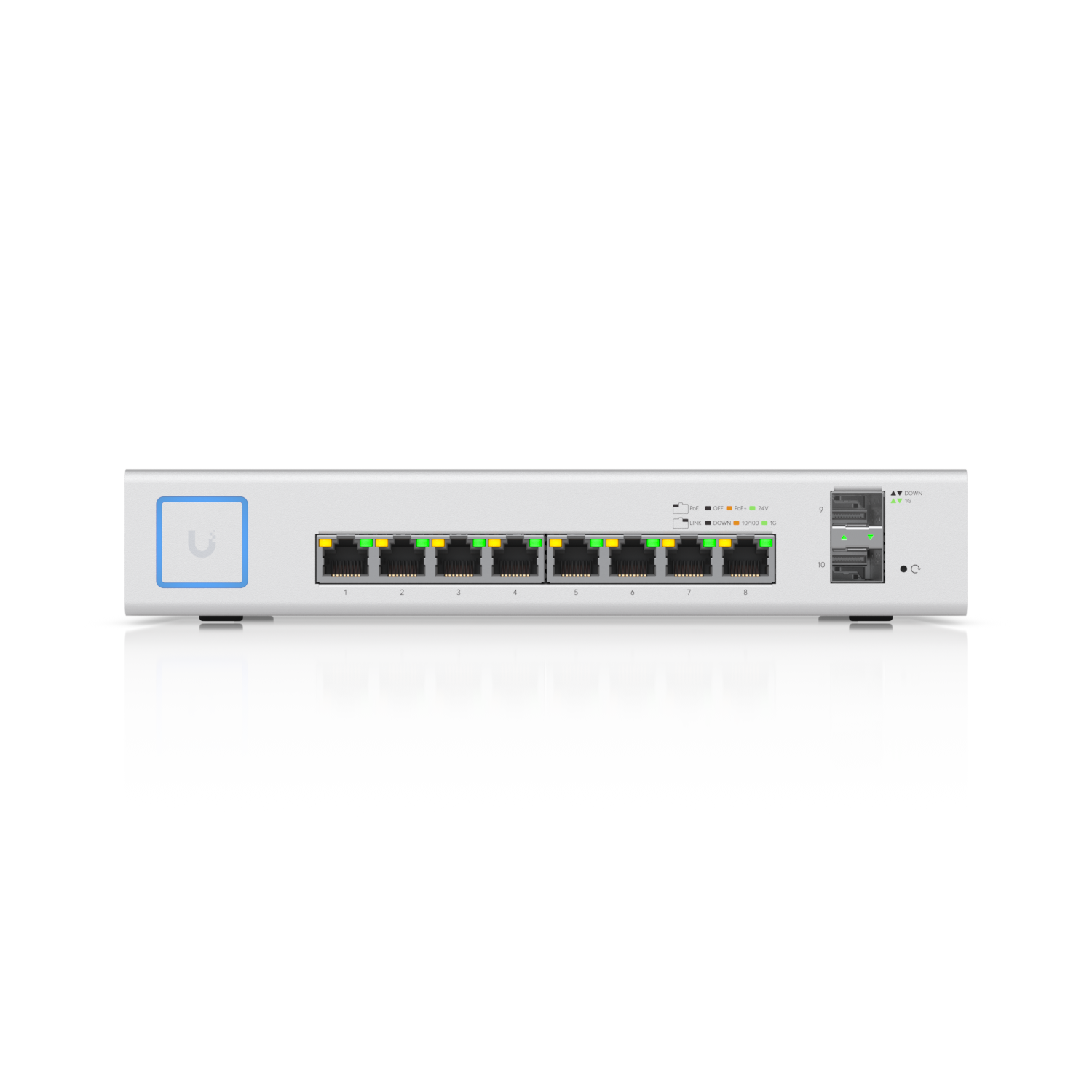

US-8-150W

Product Overview

Mechanical
Dimensions	235 x 43 x 204 mm (9.3 x 1.7 x 8")
Weight	1.7 kg (3.7 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(8) GbE RJ45 ports (2) 1G SFP ports
PoE interface	(8) PoE/PoE+ 2-pair (Pins +1, 2; -3, 6) 24V DC/0.7A passive PoE 2-pair (Pins +4, 5; -7, 8)
Total non-blocking throughput	10 Gbps
Switching capacity	20 Gbps
Forwarding rate	14.88 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 150W
Max. power consumption	20W (Excluding PoE output) 150W (Including PoE output)
Total available PoE	130W
Max. PoE wattage per port by PSE	PoE: 17W PoE+: 34W
Voltage range PoE mode	24V passive PoE: 20–27V PoE+: 50—57V
ESD/EMP protection	Air/contact: ± 24kV
Button	Factory reset
Ambient operating temperature	-5 to 45° C (23 to 113° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
LEDs
Ethernet	PoE Speed/link/activity

Mechanical
Dimensions	235 x 43 x 204 mm (9.3 x 1.7 x 8")
Weight	1.7 kg (3.7 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(8) GbE RJ45 ports (2) 1G SFP ports
PoE interface	(8) PoE/PoE+ 2-pair (Pins +1, 2; -3, 6) 24V DC/0.7A passive PoE 2-pair (Pins +4, 5; -7, 8)
Total non-blocking throughput	10 Gbps
Switching capacity	20 Gbps
Forwarding rate	14.88 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 150W
Max. power consumption	20W (Excluding PoE output) 150W (Including PoE output)
Total available PoE	130W
Max. PoE wattage per port by PSE	PoE: 17W PoE+: 34W
Voltage range PoE mode	24V passive PoE: 20–27V PoE+: 50—57V
ESD/EMP protection	Air/contact: ± 24kV
Button	Factory reset
Ambient operating temperature	-5 to 45° C (23 to 113° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
LEDs
Ethernet	PoE Speed/link/activity
