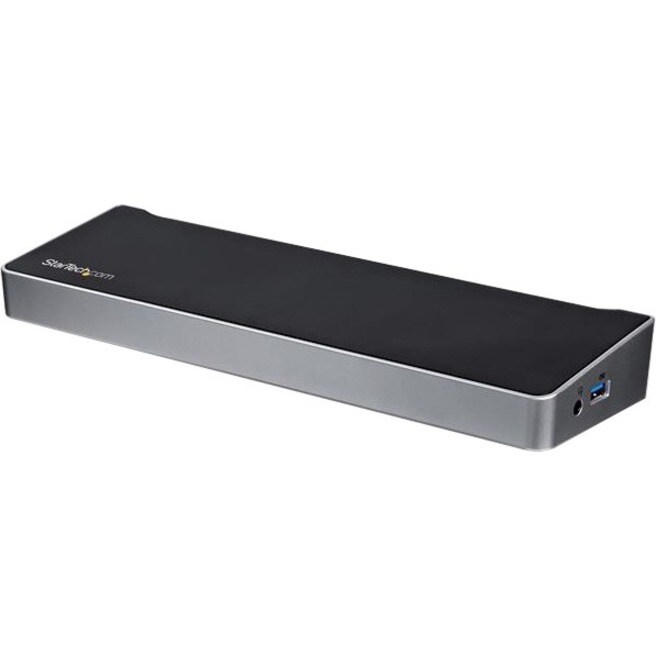

Triple-Video Docking Station for Laptops
Triple-Video Docking Station for Laptops
Product Overview
StarTech.com Triple Monitor USB 3.0 Docking Station for Laptops - Mac & Windows - USB Fast Charge Port - Up to 4K - USB3DOCKH2DP - 4K USB docking station supports 4K on one display - Triple display docking station has fast-charge port - USB 3.0 docking station has USB 3.0 ports and GbE - 3 YR warranty on universal laptop docking station with HDMI and all USB 3.0 port replicators
This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.
Triple Display Flexibility
The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.
Powerful Connections and Fast Device Charging
To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you'll have all the connections you need to stay productive.
The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
- TRIPLE DISPLAY DOCKING STATION: This universal USB 3.0 laptop dock lets users maximize their display capabilities with a triple monitor (1 x HDMI and 2 x DP) or dual-monitor setup, which will help to boost productivity
- 4K ULTRA HD RESOLUTIONS: Bring a lifelike picture to your monitor or display with this 4K USB docking station that supports resolutions up to 3840x2160 on one of the displays while supporting and 2048x1152 on the other two
- CONNECT & CHARGE YOUR USB PERIPHERALS: Connect up to five USB devices with this USB 3.0 DisplayPort & HDMI docking station - For added convenience, you can quickly charge your USB devices using the integrated USB fast-charge port
- CREATE A POWERFUL WORKSTATION: In addition to the five USB ports, the triple display docking station features a GbE RJ45 port and headset jack plus a separate 3.5mm audio and microphone port
- OS COMPATIBILITY: This USB docking station works with Windows, Mac, and ChromeOS - Includes 1x 3.3ft (1m) USB 3.0 Type-A to B host cable - NOTE: USB-C hosts will need a USB 3.0 Type-C to B cable or USB 3.0 Type-C male to Type-A female adapter (not incl.)
Technical Specifications
| Status Indicators |
|
| Ethernet Technology | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160 |
| 2560 x 1440 | |
| Screen Mode Supported | 4K |
| Environmentally Friendly | Yes |
| Kensington Security Slot | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Operating System Supported | Windows 10 |
| Windows 11 | |
| Windows 7 | |
| Windows 8 | |
| Windows 8.1 | |
| ChromeOS 55+ | |
| macOS 14 | |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 13.0 Ventura | |
| Mac OS X Server 10.8 Mountain Lion | |
| Mac OS X 10.12 Sierra |
| Product Type | Docking Station |
| Manufacturer Part Number | USB3DOCKH2DP |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Triple-Video Docking Station for Laptops - USB 3.0 |
| Brand Name | StarTech.com |
| Weight (Approximate) | 377 g |
| Length | 269.2 mm |
| Height | 33 mm |
| Width | 81.3 mm |
| Product Color | Black |
| Silver | |
| Color Family | Dual Colour |
| Host Interface | USB 3.0 |
| Microphone | Yes |
| HDMI | Yes |
| Headphone | Yes |
| Network (RJ-45) | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| Headphone/Microphone Combo Port | Yes |
| USB Type-A | Yes |
