11.6in monitor P-touch BK
11.6in monitor P-touch BK
Product Overview

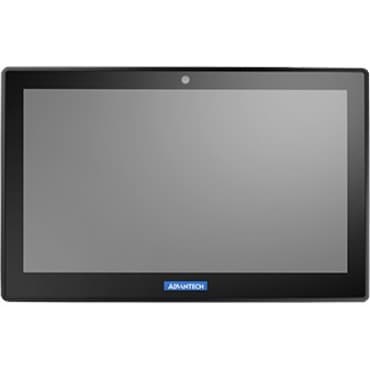

Advantech Avalo USC-M3 12" Class LCD Touchscreen Monitor - 16:9 - 11.6" Viewable - Projected Capacitive - Thin Film Transistor (TFT) - LED Backlight - Black
USC-M3 is a touch monitor of the Avalo family, that has a compact 11.6" TFT display in LED backlight. The ultra-slim front panel - 12mm offers fluent user experience with P-CAP touchscreen and the outstanding viewing experience with 16:9 screen. The system is equiped with IP65-rated front panel for water and dust resistance, and suport panel mount, wall mount, VESA mount for various circumstances. USC-M3 features embedded camera and RFID (both optional) design, and can be combined with dual hinge stand, Avalo stand and box PC to fit a mini POS application and POS system's second display, also supports rich peripherals such as iButton, scanner and slim MSR suitable for diverse applications.
- LED backlight enhances the display performance to deliver an outstanding colour range and contrast ratio
- Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Technical Specifications
| Touchscreen Type | Projected Capacitive |
| Weight (Approximate) | 3.50 kg |
| Height | 189.9 mm |
| Width | 296 mm |
| Depth | 32 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| Color Family | Black |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | USC-M3P-BST00 |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | USC-M3 |
| Product Name | Avalo USC-M3 Widescreen Touchscreen LCD Monitor |
| Product Line | Avalo |
| Brand Name | Advantech |
| Aspect Ratio | 16:9 |
| Features | Water Resistant |
| Dust Resistant | |
| Mount Type | Wall Mountable |
| Panel Mount | |
| Viewable Screen Size | 11.6" |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Screen Size Class | 12" |
